Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660EPM100J |
| Manufacturer | GE Fanuc (now Abaco Systems) |
| Product category | Power Monitoring Module |
| Operating Voltage | 100-240 VAC (single-phase) or 208-690 VAC (three-phase) |
| Input Voltage Range | 100-240 VAC (single-phase) or 208-690 VAC (three-phase) |
| Current Input | Through external CT (1 A or 5 A secondary) |
| Accuracy Level | 0.5S (electric energy), 0.2 (voltage/current) |
| Communication Protocols | Modbus RTU, Ethernet/IP, BACnet/IP, MQTT, OPC UA |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 144 mm × 144 mm × 100 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, cUL, IEEE 519, IEC 61850-3 |
| Data Storage | 128 MB internal storage (expandable through SD card) |

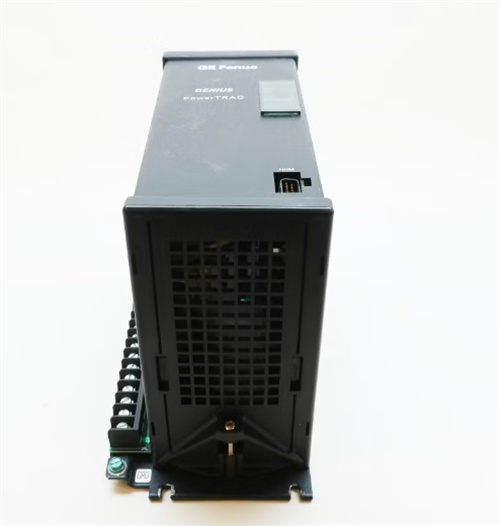

GE IC660EPM100J
Product Introduction
The GE IC660EPM100J is a high-precision energy performance monitor and power quality analyzer designed for industrial automation and power monitoring applications. It is part of the Genius I/O family and serves as a bridge between electrical infrastructure and control systems. This module captures fine power data, processes it locally, and transmits insights to SCADA, PLC, or cloud-based energy management systems (EMS).
Core Advantages and Technical Highlights
Comprehensive Power Measurement
The GE IC660EPM100J can measure over 100 electrical parameters, including:
-
Basic harmonic values of voltage, current, and power (up to the 63rd harmonic)
-
Phase-wise and total energy consumption (kWh/kVarh)
-
Frequency, peak factor, and demand curve (15-minute interval)
Its 0.5S level accuracy ensures reliable data for billing-level metering, while real-time trend analysis helps identify peak load periods or inefficient devices.
Power Quality Compliance
The built-in oscilloscope function can capture voltage and current waveforms during disturbances, making it easy to analyze the root causes of issues such as motor start-up or capacitor bank switching. This module records events (such as voltage dips/surges, interruptions) in accordance with the IEC 61000-4-30 Class A standard, providing evidence for insurance claims or utility dispute resolution.
Scalable Communication and Integration
Equipped with dual Ethernet ports and optional serial interfaces, the GE IC660EPM100J supports point-to-point data sharing and cloud connectivity through MQTT or OPC UA. It is natively integrated with GE’s Proficy Historian for long-term data storage, allowing users to generate energy dashboards, track key performance indicators (KPIs), and model load growth.
Robust Industrial Design
The module can operate within a temperature range of -40°C to +70°C and complies with the IEC 61850-3 substation environmental standards, capable of withstanding extreme temperatures, vibrations, and electromagnetic interference. Its compact design (144 mm × 144 mm × 100 mm) and plug-and-play CT connection simplify retrofitting in existing switchgear or motor control centers.
Typical Application Scenarios
The GE IC660EPM100J is widely used in industrial automation fields, including:
-
Manufacturing: Monitoring power consumption in assembly lines and identifying inefficient links in robot units or conveyor systems.
-
Data Centers: Tracking Power Usage Efficiency (PUE) by monitoring feeders, UPS systems, and critical loads to ensure compliance with industry benchmarks such as ASHRAE 90.1.
-
Renewable Energy Sites: Verifying power output meets grid requirements by measuring active and reactive power flow, voltage stability, and harmonic content.
Related Model Recommendations
-
GE IC660EPD100J: A digital input/output module used to integrate switch status or alarm signals with power data.
-
GE IC660CBL700: A VersaMax backplane cable for expanding the system.
-
GE IC660CPU100J: A VersaMax CPU unit for overall control logic.
-
GE IC660TBD100J: A thermocouple input module for temperature monitoring.
-
GE IC660ACC901: A mounting base unit for secure installation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660EPM100J, ensure that the power to the entire system is switched off to avoid electrical hazards. Check the module for any visible damage, such as bent pins or cracks on the casing. Familiarize yourself with the layout of the PLC rack where it will be installed, especially the location of the IBM PC Interface Module (PCIM) to which it will be connected.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC660EPM100J. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC660EPM100J is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
