Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660TBA026 |
| Manufacturer | GE Fanuc |
| Product category | Analog Output Module |
| Operating Voltage | 115 VAC, 125 VDC |
| Input Channels | 6 |
| Signal Range | 4-20 mA |
| Output Accuracy | 0.15% at 25°C |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 100°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 8.83 in × 3.94 in × 3.50 in |
| Weight | 1.30 lbs |
| Heat Dissipation | 12 W |
| Monitor Port | Available on front panel |
| Serial Ports | Serial Port 1 and Serial Port 2 |
| Shielded Ports | Shielded input and output ports |

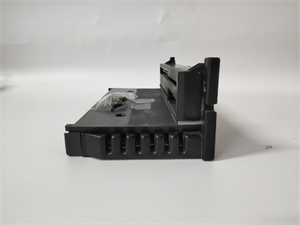

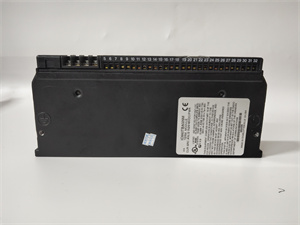

GE IC660TBA026
Product Introduction
The GE IC660TBA026 is a high-precision analog output module designed for industrial automation systems. It is part of the Genius I/O series and is used to provide stable and reliable analog output signals. This module is engineered to interface seamlessly with other components in an industrial setup, ensuring smooth operation of industrial processes.
Core Advantages and Technical Highlights
High Output Accuracy
The GE IC660TBA026 offers a high level of output accuracy, with a 0.15% accuracy at 25°C. This precision is crucial for applications where even slight deviations in analog signals can lead to sub-optimal performance or errors in the controlled process.
Multi-Input Capability
Featuring 6 inputs, the module can manage multiple input signals simultaneously. This multi-input capability allows for greater flexibility in industrial setups, as it can interface with a variety of sensors or control signals.
Enhanced Diagnostics
The module comes equipped with enhanced diagnostic functions. It can detect over-range and under-range conditions in the output, and when the output feedback drops below 1.5 mA, it can alert the operator. This early-warning system helps in preventing equipment failures and maintaining the integrity of the industrial process.
Compact Design
The GE IC660TBA026 has a compact size, measuring 8.83 inches in height, 3.94 inches in depth, and 3.50 inches in width. This compact design makes it easy to install in various control panels, saving valuable space.

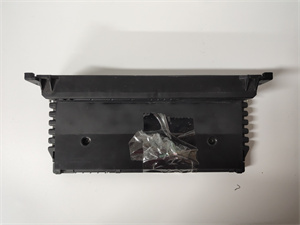

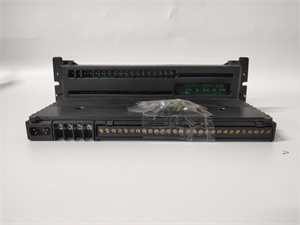

GE IC660TBA026
Typical Application Scenarios
The GE IC660TBA026 is widely used in industrial automation fields, including:
-
Manufacturing: Controlling the speed of extruders in plastics manufacturing or the movement of robotic arms in assembly lines.
-
Chemical Processing: Controlling the flow of chemicals in pipelines to ensure proper chemical reactions.
-
Power Generation: Adjusting the position of turbine blades to optimize power generation efficiency.
Related Model Recommendations
-
GE IC660TBA023: A terminal assembly with 16 circuits, serving as a connection point for electrical circuits.
-
GE IC660TBA024: An input/output block using a current power source, offering a combination of input and output capabilities.
-
GE IC660TBA025: A current-source analog output block, similar to the IC660TBA026, but may have different specifications or features.
-
GE IC660TBA101: A terminal assembly that monitors temperature inputs from temperature detectors.
-
GE IC660TBA103: A genius terminal assembly with a rated voltage of 115 volts AC and 125 volts DC, used in thermocouple applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660TBA026, ensure that the power to the entire system is switched off to avoid electrical hazards. Check the module for any visible damage, such as bent pins or cracks on the casing. Familiarize yourself with the layout of the PLC rack where it will be installed, especially the location of the IBM PC Interface Module (PCIM) to which it will be connected.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC660TBA026. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC660TBA026 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
