Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC670ALG310-JA |
| Manufacturer | GE Fanuc |
| Product Category | Analog Output Module |
| Signal Type | Voltage (-10V to +10V) / Current (optional) |
| Channels | 8 (2 isolated groups of 4) |
| Resolution | 14-bit DAC |
| Accuracy | ±0.1% of full scale |
| Power Supply | External: 18–30V DC; Backplane: 24V DC |
| Current Consumption | 85mA (backplane) |
| Communication | Genius Field Bus (Rev 2.0+) |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 3.5 × 13 × 13.6 cm |
| Certifications | UL, CE, TUV |

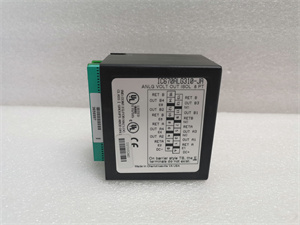

IC670ALG310-JA
Product Introduction
The GE Fanuc IC670ALG310-JA is a high-performance analog output module designed for industrial automation systems. It is part of the Genius Field Control and RX7i PACSystem families. Its core function is converting digital signals into precise analog voltage/current outputs, making it ideal for controlling valves, motors, and actuators。
Core Advantages and Technical Highlights
Isolated Channel Design
The module features two isolated groups of 4 channels, minimizing ground loop interference and providing robust protection against electrical noise。
Flexible Configuration
Users can configure voltage or current outputs per channel, with 3 predefined scaling options and 1 custom setting. This flexibility allows the module to adapt to various application requirements。
Diagnostic Capabilities
The module includes real-time fault detection (over/under range, open circuit, power loss) and alarm triggers for proactive maintenance. This built-in diagnostics reduce the need for external monitoring and enhance system reliability。
Industrial Ruggedness
The IC670ALG310-JA is designed for harsh industrial environments, with a wide operating temperature range of -20°C to +60°C and a compact design suitable for space-constrained installations。
Field Calibration
Flash memory stores calibration data, allowing for easy reconfiguration or factory reset. This feature ensures consistent performance and simplifies maintenance。

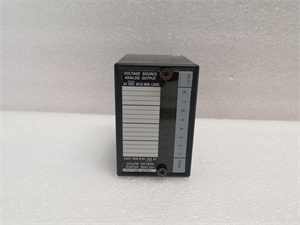

IC670ALG310-JA
Typical Application Scenarios
The GE Fanuc IC670ALG310-JA is widely used in:
-
Manufacturing: For motor speed control and valve positioning.
-
Energy: For closed-loop temperature and pressure regulation.
-
Chemical Processing: For precise control of reactor pressure valves.
-
Water Treatment: For monitoring and controlling water levels and flow rates。
Related Model Recommendations
-
GE IC670ALG310: A related model with similar functionality but different specifications。
-
GE IC690ALG310: A higher-end model with enhanced performance and additional features。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input and output cables according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation. Perform annual calibration checks and store calibration data in the module’s flash memory。
Service and Guarantee Commitment
The GE Fanuc IC670ALG310-JA is backed by a comprehensive warranty and after-sales service commitment. GE Fanuc guarantees the quality of the product and provides reliable technical support and after-sales service to ensure user satisfaction。
