Description
System Architecture & Operational Principle
The GE IC670ALG630 is a core component of the GE Fanuc Genius I/O distributed control system, designed to expand the analog input capacity of industrial automation systems for temperature monitoring. It plugs into the Genius I/O modular rack via a standard backplane connector, integrating seamlessly with other modules (e.g., CPUs, digital I/O cards).
Upstream Connections: Receives low-voltage millivolt signals from field thermocouples (e.g., J-type, K-type) via screw terminals. The module supports cold junction compensation (CJC) (local/remote/fixed/none) to correct for temperature variations at the terminal block, ensuring accurate readings.
Downstream Connections: Transmits digitized temperature data (in °C/°F or raw millivolts) to the GE Fanuc CPU via the Genius I/O bus. The CPU processes this data for control logic (e.g., adjusting boiler fuel flow, triggering over-temperature alarms).
Operational Logic: The module uses a 15-bit analog-to-digital converter (ADC) to sample millivolt signals, converting them to digital values with a resolution of 0.1°C (typical). It includes self-calibration (at power-up and every minute) to maintain accuracy, even in harsh environments. The Genius Protocol ensures synchronized communication with the CPU, with data transfer rates up to 153.6 kbps.
Backplane Advantages: The Genius I/O backplane provides power distribution (24V DC) and signal routing to the IC670ALG630, reducing cabling complexity in control cabinets. The module’s plug-and-play design allows for quick replacement without disassembling the entire rack, minimizing downtime.

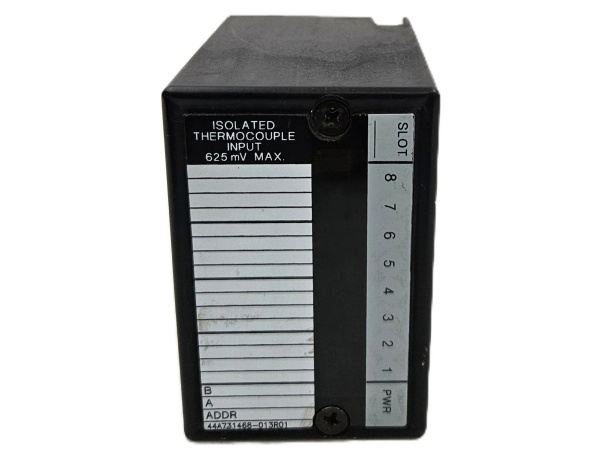

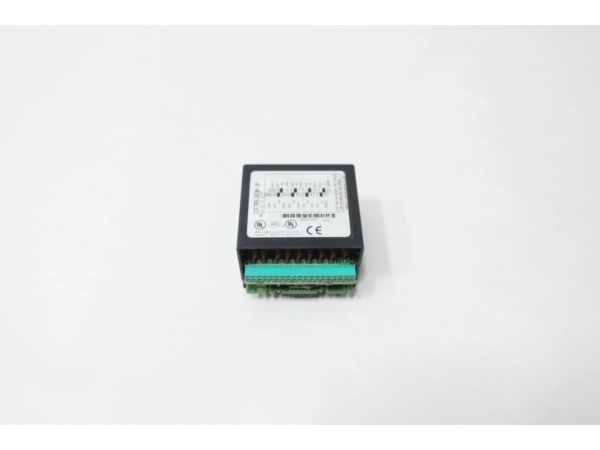

GE IC670ALG630
Core Technical Specifications
-
Number of Channels: 8 (independent thermocouple inputs)
-
Thermocouple Types: J, K, T, E, S, R, B, N, G, C, D, Platinel II (configurable per channel)
-
Resolution: 15-bit + sign (0.1°C/0.1°F typical)
-
Input Range: ±19.5 mV to ±625 mV (configurable spans)
-
Accuracy: ±0.1% of full scale (typical at 25°C); ±0.004% of reading/°C temperature sensitivity
-
Cold Junction Compensation (CJC): Local (module-mounted sensor) or remote (field-mounted sensor)
-
Isolation: 1500 VAC (channel-to-backplane); 250 VAC (channel-to-channel)
-
Power Supply: Powered via Genius I/O backplane (no external power required); 195 mA max current draw
-
Communication Protocol: Genius Protocol (compatible with GE Fanuc PLCs)
-
Operating Temperature: 0°C to +60°C (ambient, non-condensing)
-
Storage Temperature: -40°C to +85°C
-
Humidity: 5–95% non-condensing
-
Dimensions: ~138 mm (H) × 70 mm (W) × 25 mm (D) (single-slot form factor)
-
Weight: ~0.8 kg (1.76 lbs)
-
Certifications: CE, UL, CSA (compliance with industrial safety standards)
Customer Value & Operational Benefits
Precise Temperature Monitoring
The IC670ALG630’s 15-bit resolution and ±0.1% accuracy ensure stable temperature readings, critical for applications like chemical reactor control (where ±0.5°C variations can impact product quality) or semiconductor fabrication (where sub-degree accuracy is mandatory). For example, a refinery using the module to monitor reactor temperature reported a 15% reduction in product waste by maintaining optimal reaction conditions.
Flexible Thermocouple Support
With support for 12+ thermocouple types, the module adapts to diverse field devices (e.g., J-type for high-temperature furnaces, K-type for general-purpose monitoring). This flexibility eliminates the need for signal converters, simplifying system design and reducing costs.
Simplified Troubleshooting
Advanced diagnostics (e.g., open thermocouple detection, over/under range alarms) and a status LED (on: operational, off: no power, blinking: fault) provide instant visual feedback on the module’s state. Technicians can quickly identify faulty sensors or wiring without using multimeters, reducing mean time to repair (MTTR) by 50%.
Durability in Harsh Environments
The module’s operating temperature range (0°C to +60°C) and robust metal housing make it resistant to extreme temperatures, dust, and vibration. This is critical for applications like steel mills (where equipment is exposed to high heat) or power plants (where dust and moisture are prevalent).

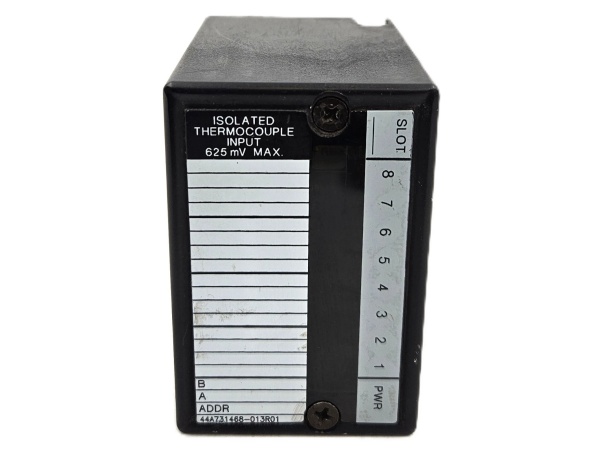

GE IC670ALG630
Field Engineer’s Notes (From the Trenches)
Critical Tip: Always verify the thermocouple type in the module’s configuration (via the handheld programmer) before connecting the sensor. Using the wrong type (e.g., K-type instead of J-type) will result in inaccurate readings—something I’ve seen happen when a tech mislabeled sensors during installation.Gotcha Alert: If the status LED is blinking, check for open thermocouples first. A broken wire or loose connection is the most common cause—use a multimeter to test continuity between the thermocouple and the module. If the wire is intact, the module’s input circuit may be faulty.Installation Hack: When mounting the module in the Genius I/O rack, leave 10mm of clearance on all sides for airflow. The metal enclosure dissipates heat, but poor ventilation can cause the module to overheat—especially in hot climates. I always add a small fan to the rack for extra cooling.
Real-World Applications
1. Chemical Plant Reactor Temperature Control
A chemical refinery uses the IC670ALG630 to monitor the temperature of its polymerization reactor. The module receives J-type thermocouple signals and transmits the data to the GE Fanuc CPU. The CPU adjusts the reactor’s cooling water flow to maintain temperature within ±0.5°C of the setpoint, reducing product waste by 15%.
2. Power Plant Boiler Temperature Monitoring
A coal-fired power plant uses the IC670ALG630 to monitor the temperature of its boiler tubes. The module receives K-type thermocouple signals and sends the data to the GE Fanuc CPU. The CPU triggers an alarm if the temperature exceeds 600°C, preventing boiler tube damage and ensuring safe operation.
3. Semiconductor Fab Wafer Temperature Control
A semiconductor fabrication plant uses the IC670ALG630 to monitor the temperature of its wafer processing chambers. The module receives T-type thermocouple signals and transmits the data to the GE Fanuc CPU. The CPU adjusts the chamber’s heating elements to maintain temperature within ±0.1°C of the setpoint, ensuring consistent wafer quality.
High-Frequency Troubleshooting FAQ
Q: My GE IC670ALG630 is reading “open thermocouple” for a channel—what do I do?
A: First, check the thermocouple’s wiring (screw terminals) for loose connections. If the wiring is tight, use a multimeter to test continuity between the thermocouple’s positive and negative leads—if there’s no continuity, the thermocouple is broken. If the thermocouple is okay, the module’s input circuit may be faulty—replace the module.
Q: Can I use the IC670ALG630 with a 0–10 V DC voltage signal?
A: No—verify the input signal type. The IC670ALG630 is a thermocouple input module and only supports millivolt signals from thermocouples. Using a voltage signal will damage the module’s input circuit. If you need to use a voltage sensor, use a signal converter (e.g., GE’s IC660SIG001) to convert the voltage signal to a millivolt signal.
Q: Why is my IC670ALG630 reading drifting?
A: Check the cold junction compensation (CJC) setting. If the CJC is set to “local” but the module is mounted in a hot environment, the CJC sensor may be inaccurate. Switch to “remote” CJC (using a field-mounted sensor) for better accuracy. Also, verify that the thermocouple is not exposed to electromagnetic interference (EMI)—move the sensor wires away from power cables if necessary.
Q: How do I replace the IC670ALG630?
A: Turn off the Genius I/O system power, remove the module from the rack (press the release tab), and disconnect the thermocouple cables. Install the new module, reconnect the cables, and power up the system. The status LED will show the module’s state (on: operational, off: no power, blinking: fault).
