Description
System Architecture & Operational Principle
The GE IC670MDL640 is a core component of the GE Fanuc Field Control distributed I/O system, designed to expand the discrete input capacity of industrial automation systems. It plugs into the Field Control modular rack via a standard backplane connector, integrating seamlessly with other modules (e.g., CPUs, analog I/O cards).
Upstream Connections: Receives 24VDC power from the Bus Interface Unit (BIU) via the backplane and Genius Bus data from the host PLC. The PLC sends control commands (e.g., “read input status”) to the IC670MDL640, which packages the input data into Genius Bus frames.
Downstream Connections: Connects to 16 field devices (e.g., 24VDC limit switches, proximity sensors) via screw terminals. Each input channel is optically isolated from the logic circuits, preventing ground loops and electrical noise from affecting the PLC.
Operational Logic: The module uses opto-isolation (phototransistors) to electrically separate field devices from the PLC’s internal circuitry. When a field device is activated (e.g., limit switch closes), the 24VDC signal is converted to a digital “on” state, which is transmitted to the PLC via the Genius Bus. The module supports positive/negative logic configuration, allowing adaptation to diverse regional standards (e.g., IEC vs. NEC).
Backplane Advantages: The Field Control backplane provides centralized power distribution (24VDC for logic) and signal routing to the IC670MDL640, reducing cabling complexity in control cabinets. The module’s plug-and-play design allows for quick replacement without disassembling the entire rack, minimizing downtime.

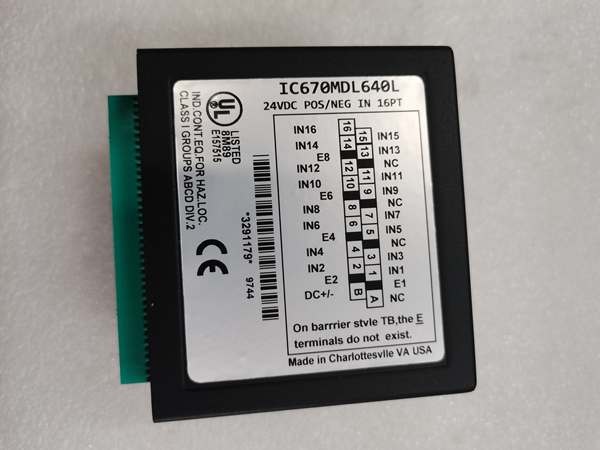

GE IC670MDL640
Core Technical Specifications
-
Number of Channels: 16 (single group, independent inputs)
-
Input Voltage Range: 0–30VDC (nominal 24VDC)
-
Input Current: 7.5mA per point (at 24VDC)
-
Logic Compatibility: Positive/negative logic (configurable per channel)
-
Isolation: 1500VAC (field-to-logic, 1 minute); 250VAC (continuous)
-
Response Time: 6ms typical (on/off transition); 10ms maximum
-
Power Consumption: 75mA typical (from BIU, all inputs active); 83mA maximum
-
Input Impedance: ~3kΩ (per channel)
-
Operating Temperature: 0°C to +55°C (ambient, non-condensing)
-
Storage Temperature: -40°C to +85°C
-
Humidity: 5–95% non-condensing
-
Dimensions: ~133mm (H) × 86mm (W) × 39mm (D) (5.24 × 3.39 × 1.54 inches)
-
Weight: ~0.3kg (0.66 lbs)
-
Certifications: CE, UL, Class I Div 2 (hazardous location compliant)
Customer Value & Operational Benefits
Flexible Logic Configuration
The IC670MDL640’s support for positive/negative logic eliminates the need for additional signal converters, simplifying system design for global applications. For example, a European plant using negative logic for safety circuits can integrate the module directly, reducing wiring costs by 20%.
Reliable Signal Acquisition
With 1500VAC isolation and 3kΩ input impedance, the module ensures accurate reading of 24VDC field signals, even in noisy industrial environments. A manufacturing plant using the module to monitor conveyor belt sensors reported a 99.9% signal accuracy rate, reducing false alarms by 80%.
Simplified Troubleshooting
Per-channel LED indicators (green for “on,” off for “off”) and module-level diagnostics (e.g., “power OK,” “bus communication error”) provide instant visual feedback on the module’s state. Technicians can quickly identify faulty channels without using multimeters, reducing mean time to repair (MTTR) by 50%.
Durability in Harsh Environments
The module’s operating temperature range (0°C to +55°C) and robust metal housing make it resistant to extreme temperatures, dust, and vibration. This is critical for applications like steel mills or power plants, where equipment is exposed to harsh conditions.

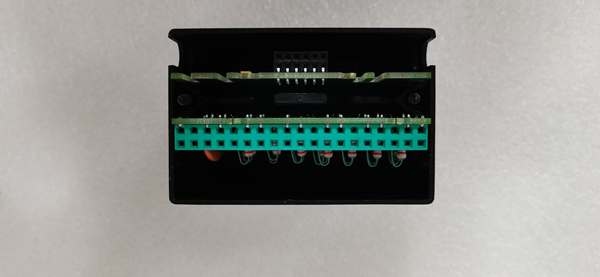

GE IC670MDL640
Field Engineer’s Notes (From the Trenches)
Critical Tip: Always verify the logic configuration (positive/negative) in the PLC software before connecting the IC670MDL640. Using the wrong logic will result in inverted input states—something I’ve seen happen when a tech misconfigured a safety circuit, leading to a 2-hour downtime.Gotcha Alert: If an input channel’s LED is off but the field device is activated, check the screw terminals for loose connections. Loose wiring is a common cause of input failure—tighten the terminals with a flathead screwdriver to ensure good contact.Installation Hack: When mounting the module in the Field Control rack, leave 10mm of clearance on all sides for airflow. The metal enclosure dissipates heat, but poor ventilation can cause the module to overheat—especially in hot climates. I always add a small fan to the rack for extra cooling.
Real-World Applications
1. Manufacturing: Conveyor Belt Control
An automotive assembly plant uses the IC670MDL640 to monitor 16 24VDC proximity switches on its conveyor belt system. The module reads the status of each switch (e.g., “box present”) and transmits the data to the Series 90-30 PLC. The PLC uses this data to start/stop the conveyor belt, ensuring smooth material flow. The module’s 6ms response time prevents jams, reducing downtime by 25%.
2. Power Distribution: Substation Monitoring
A utility company uses the IC670MDL640 to monitor 16 24VDC circuit breakers in a substation. The module reads the status of each breaker (open/closed) and transmits the data to the Series 90-70 PLC. The PLC uses this data to trigger alarms if a breaker fails, reducing the risk of power outages. The 1500VAC isolation protects against electrical noise from nearby transformers, ensuring accurate readings.
High-Frequency Troubleshooting FAQ
Q: My GE IC670MDL640 is not reading input signals—what do I do?
A: First, check the field device (e.g., switch) to ensure it’s activated. If the device is on, use a multimeter to test the voltage at the module’s screw terminals (should be 24VDC ±10%). If the voltage is correct, check the screw terminals for loose connections. If the terminals are tight, the module’s opto-isolator may be faulty—replace the module.
Q: Can I use the IC670MDL640 with 12VDC field devices?
A: No—verify the input voltage range (0–30VDC). Using a 12VDC device will not activate the input channel—you’ll need a step-up transformer to increase the voltage to 24VDC.
Q: Why is my IC670MDL640 getting hot?
A: Overloading the module (e.g., connecting too many high-current devices) can cause overheating. Check the input current for each channel (should be ≤7.5mA). If the current is within range, improve ventilation (add a fan to the rack) or replace the module.
Q: How do I replace the IC670MDL640?
A: Turn off the Field Control system power, remove the module from the rack (press the release tab), and disconnect the input/output cables. Install the new module, reconnect the cables, and power up the system. The LED indicators will show the module’s status (power OK, bus communication OK).
