Description
System Architecture & Operational Principle
The IC693APU300 is a single-slot module designed for GE Series 90-30 PLC racks, typically deployed at Level 1 (Basic Control) or Level 2 (Supervisory Control) of the Purdue Model. It connects to field devices (e.g., encoders, flowmeters) via a removable terminal block, accepting high-speed pulse signals (up to 200 kHz) from sensors. The module processes these signals using 12-bit counters, which can be configured for up/down counting, bidirectional counting, or differential counting (calculating the difference between two input signals).
Upstream, the module communicates with the PLC CPU over the backplane, sending counter values and status information (e.g., overflow, underflow) to the CPU’s memory. Downstream, the 4 programmable outputs can trigger actions (e.g., starting a motor, activating a valve) based on counter thresholds or events (e.g., reaching a target count). A key architectural advantage is the 1500 VAC RMS optical isolation between field wiring and the PLC logic, which prevents ground loops and voltage spikes from damaging the CPU. The module also features internal diagnostics (e.g., input signal validation, output load monitoring) to ensure reliable operation in harsh industrial environments.

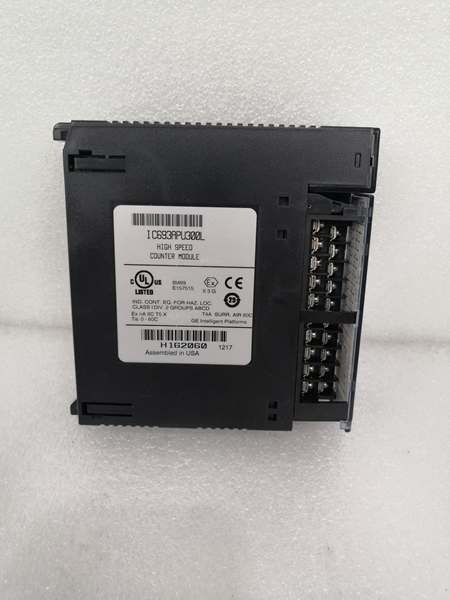

IC693APU300
Core Technical Specifications
-
Input Channels: 12 positive logic inputs (5 VDC/10-30 VDC)
-
Output Channels: 4 positive logic outputs (500 mA at 10-30 VDC, 20 mA at 4.75-6 VDC)
-
Maximum Count Rate: 200 kHz (per input channel)
-
Input Voltage Range: 5 VDC (TSEL jumpered to INCOM) / 10-30 VDC (TSEL open)
-
Output Protection: Short-circuit protection (3 A fuse for all outputs)
-
Isolation: 1500 VAC RMS (field-to-logic, field-to-outputs)
-
Power Consumption: 250 mA at 5 VDC (from backplane)
-
LED Indicators: “BOARD OK” (module power status), “CONFIG OK” (configuration validity)
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Certifications: UL, CE, RoHS
Customer Value & Operational Benefits
High-Speed Counting Accuracy
The IC693APU300’s 200 kHz maximum count rate and 12-bit counter resolution enable precise measurement of high-speed events (e.g., turbine rotation, conveyor belt speed). This accuracy is critical for applications like flow metering (where small pulse variations affect billing) or motion control (where encoder counts determine actuator position).
Flexible Configuration
The module’s support for multiple counting modes (up/down, bidirectional, differential) allows it to adapt to diverse field devices. For example, differential counting can be used to measure the difference between two encoder signals, enabling precise position control in robotic systems.
Reliable Isolation & Protection
The 1500 VAC RMS optical isolation protects the PLC from field-side noise and voltage spikes, reducing the risk of CPU damage. The short-circuit protection on the outputs prevents damage to the module or field devices in case of wiring faults.
Easy Integration
The module plugs directly into Series 90-30 PLC racks, using the same backplane as other I/O modules. This eliminates the need for custom wiring or additional signal conditioners, simplifying system design and commissioning.
Field Engineer’s Notes (From the Trenches)
When wiring the IC693APU300, always use twisted/shielded instrumentation cable for field connections—unshielded cable will pick up EMI, causing erratic count values. I once saw a site use regular Ethernet cable, and the 100 kHz pulse signal from an encoder was corrupted, leading to incorrect conveyor speed calculations.Double-check the TSEL jumper on the terminal block. If you’re using 5 VDC inputs, the TSEL jumper must be connected to INCOM—leaving it open will cause the module to misinterpret the input voltage, resulting in no counts. I always label the jumper position (e.g., “TSEL: 5 VDC”) to avoid confusion.Test the counter with a known signal during commissioning. Use a function generator to send a 10 kHz pulse train to an input channel and verify that the module counts correctly. This ensures the module is functioning properly before connecting it to field devices.
Real-World Applications
-
Turbine Flow Metering: The IC693APU300 counts pulses from a turbine flowmeter (e.g., 1000 pulses per gallon) to measure liquid flow rate. The PLC uses this data to adjust pump speed, maintaining consistent flow to a chemical reactor.
-
Conveyor Belt Speed Control: The module counts pulses from an encoder attached to a conveyor belt (e.g., 2000 pulses per revolution) to monitor belt speed. If the speed deviates from the setpoint, the PLC triggers an alarm or adjusts the motor drive.
-
Robotic Arm Positioning: The module uses differential counting to measure the difference between two encoder signals (e.g., from the arm’s shoulder and elbow joints), enabling precise position control for pick-and-place operations.

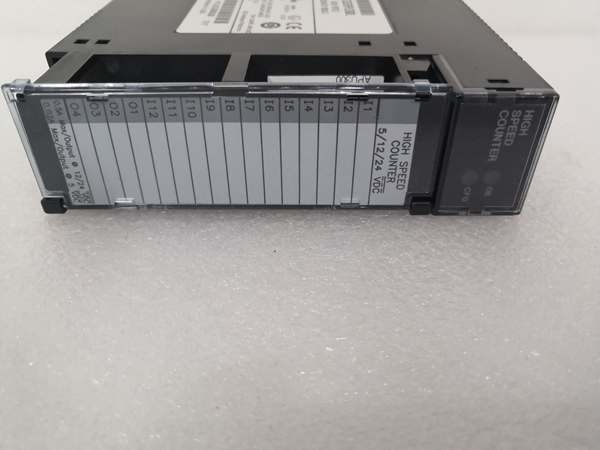

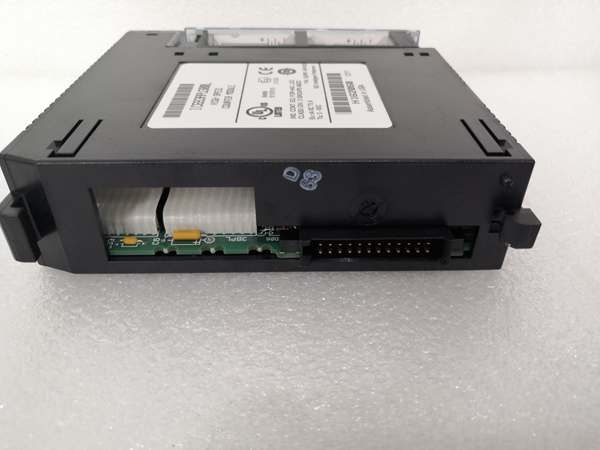

IC693APU300
High-Frequency Troubleshooting FAQ
Q: What is the maximum input frequency the IC693APU300 can handle?
A: The module supports input frequencies up to 200 kHz (per channel). If your application requires higher frequencies, consider upgrading to the Emerson IC694APU300 (which supports up to 1 MHz input frequency).
Q: How do I configure the counter mode (up/down/bidirectional)?
A: Use the PLC programming software (e.g., Logicmaster 90-30) to select the desired counter mode for each channel. The module does not have physical jumpers—configuration is done via software.
Q: What does the “CONFIG OK” LED indicate?
A: The “CONFIG OK” LED turns on when the module’s configuration (e.g., counter mode, input range) is valid. If it’s off, check the PLC program for configuration errors (e.g., invalid counter mode for the selected input range).
Q: Can I replace the IC693APU300 with a newer module?
A: Yes—consider the Emerson IC694APU300 (a direct replacement for Series 90-30 PLCs). It offers higher input frequency (1 MHz) and enhanced features (e.g., 32-bit counters, Z input events). Verify the new module’s footprint and power requirements before swapping.
