Description
3. Key Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Axis Count
|
1 axis
|
|
Servo Loop Update
|
1 millisecond
|
|
Operation Modes
|
Standard (integrated PLC logic + motion control); Follower (electronic gearing)
|
|
Connectors
|
25-pin D-type (servo); 24-pin high-density (APM connection)
|
|
Isolation
|
1500V RMS (field-to-logic)
|
|
Power Consumption
|
<1 A @ 5V DC (from backplane)
|
|
Operating Temperature
|
0°C to 60°C (32°F to 140°F)
|
|
Mounting
|
Single-slot (fits 5-slot/10-slot Series 90-30 baseplates)
|
|
Compatibility
|
Series 90-30 CPUs (CPU 311 and higher)
|
GE IC693APU301
4. Product Introduction

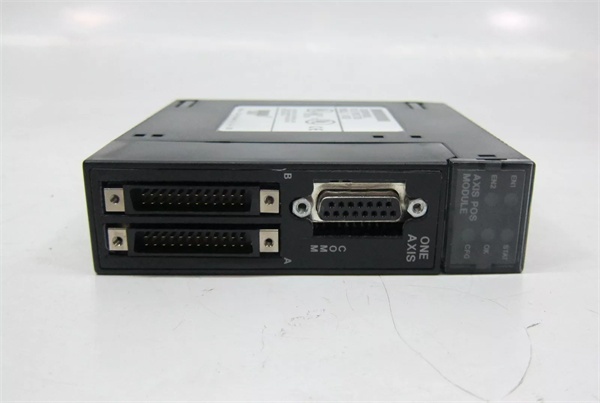

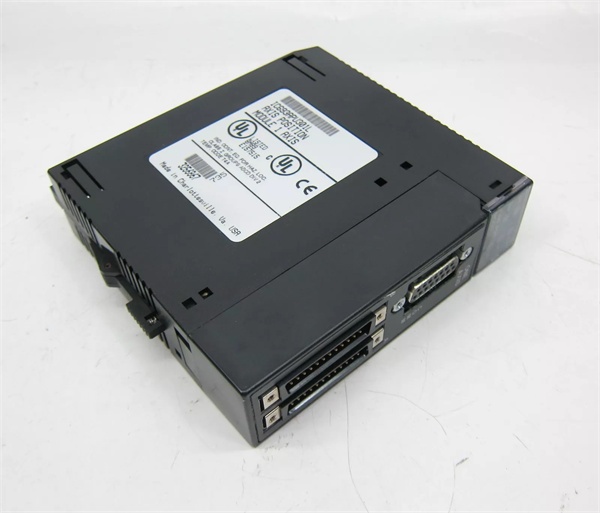

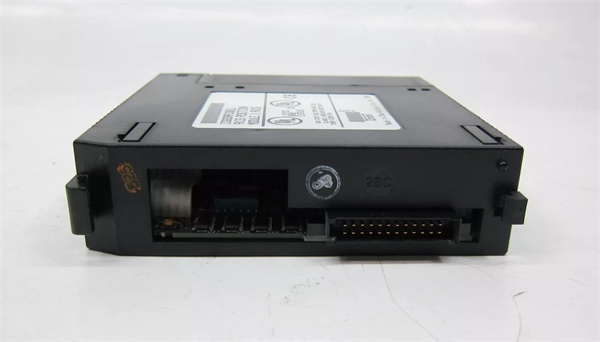

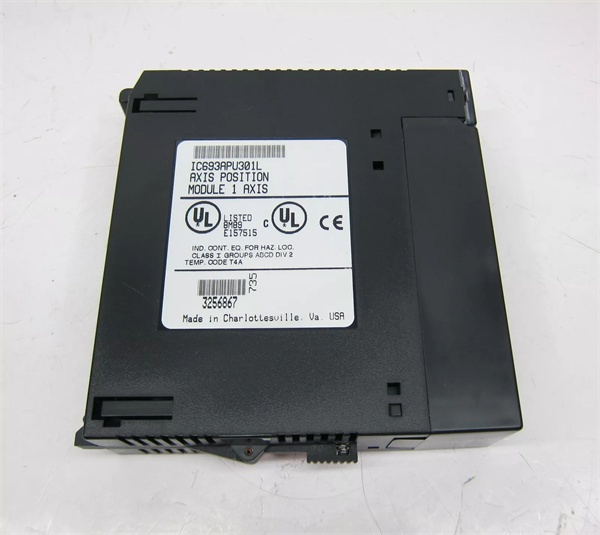

The GE IC693APU301 is a single-axis positioning module designed for GE Series 90-30 PLC systems, providing precise motion control for industrial applications like conveyor positioning, robotic pick-and-place, and precision machining. It combines high-performance motion control with PLC logic, allowing users to integrate complex control tasks into a single system.
Core Value Proposition:
The module’s 1ms servo loop update rate ensures real-time responsiveness for time-sensitive applications, while its standard/follower modes offer flexibility for diverse motion control needs. The 1500V RMS isolation protects the PLC from electrical noise, making it suitable for harsh industrial environments. Its compact, single-slot design reduces cabinet space, simplifying system integration.
5. Firmware/Software Versions & Upgrade Notes
-
Recommended Firmware: v2.70 (last stable release; enhances follower mode performance and fixes bugs in v2.60).
-
Compatibility:
-
PLC Compatibility: Works with Series 90-30 CPUs (e.g., CPU 311, CPU 331).
-
Configuration Tools: Programmable via Logicmaster 20/30 or Proficy Machine Edition (IEC 61131-3 compliant).
-
-
Upgrade Risks:
-
Upgrading to v2.70 requires a cold restart of the PLC (no hot-swap).
-
Downgrading to v2.60 may disable enhanced follower mode features—backup the PLC program first.
GE IC693APU301
-
6. Frequently Asked Questions (FAQ)
1. Can I use the IC693APU301 with a Series 90-70 PLC?
No. The IC693APU301 is designed exclusively for Series 90-30 PLCs. For Series 90-70, use the IC694APU301 (a direct replacement with the same form factor but updated backplane pinout).
2. What’s the difference between standard and follower modes?
-
Standard Mode: Combines PLC logic with motion control, ideal for applications requiring custom control logic (e.g., pick-and-place robots).
-
Follower Mode: Provides electronic gearing for master/slave applications (e.g., conveyor synchronization), where the module follows a master axis’s motion.
3. How do I connect the IC693APU301 to a servo drive?
Use a 25-pin D-type cable (e.g., IC693CBL311) to connect the module’s servo port to the drive. Ensure the cable is shielded to reduce EMI.
4. What’s the warranty for this “New Surplus” unit?
12 months, covering manufacturing defects. We perform incoming traceability checks (OEM serial verification), 24h load tests (continuous operation), and megger insulation tests (>10MΩ).
5. Why is this cheaper than OEM but pricier than refurbished?
This is New Surplus: unused stock with full QC (anti-static packaging, calibration backups). Refurbished units often have degraded components (e.g., capacitors) or untested isolation—risking unplanned downtime.
6. Can I hot-swap the IC693APU301?
No. Hot-swapping risks backplane short circuits. Power down the rack, verify 5V/24V stability, then replace the module.
7. How do I troubleshoot a “servo loop error”?
-
Check the servo drive’s power supply (ensure 24V DC is stable).
-
Verify the 25-pin cable connection (no loose pins).
-
Use Proficy Machine Edition to monitor the module’s status registers (%AI/%AQ)—look for error codes (e.g., “overcurrent” or “position error”).
Critical Implementation Notes
-
Wiring: Use shielded twisted-pair (STP) cable for servo connections. Ground the shield to the module’s “GND” terminal.
-
Power Budget: Ensure the PLC’s 5V DC backplane can supply <1 A per module (calculate total load for all I/O modules).
-
ESD Protection: Use grounded wrist straps during installation—CMOS inputs are sensitive to >50V ESD.
