Description
3. Key Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Module Type
|
Genius Bus Controller (GBC), Revision M (hardware-optimized)
|
|
Supported Protocol
|
Genius LAN (Genius I/O Serial Bus)
|
|
Data Capacity
|
128 bytes per scan cycle
|
|
Max Devices
|
31 Genius I/O devices (blocks, remote drops)
|
|
Installation Slot
|
Slot 1 (dedicated communication slot, mandatory)
|
|
LED Indicators
|

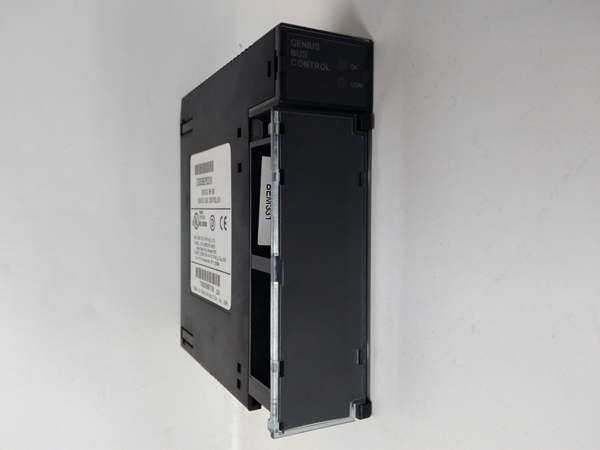

OK (steady: normal, blinking: fault), COMM (active communication)
|
|
Power Consumption
|
<300 mA @ 5V DC (from PLC backplane)
|
|
Operating Temperature
|
0°C to 60°C (32°F to 140°F)
|
|
Isolation
|
1500V RMS (field-to-logic)
|
|
Communication Speed
|
9.6/19.2/57.6/115.2 kbps (configurable)
|
|
Compatibility
|
Series 90-30 CPUs (firmware 5.0+) with LogicMaster 90-30/VersaPro (IEC 61131-3)
|
|
Note
|
“M” suffix denotes hardware revision (e.g., EMI filtering, mechanical optimization)
|

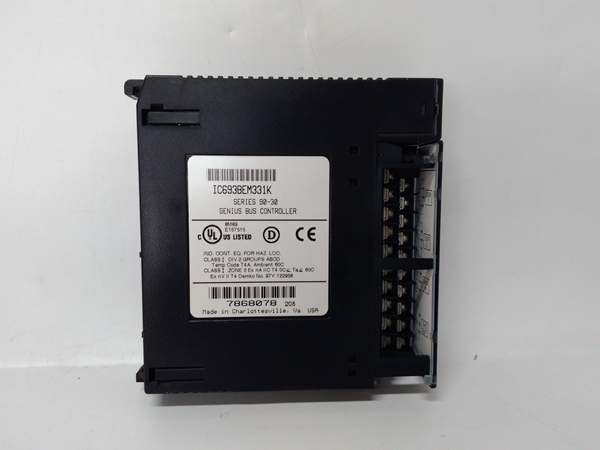

GE IC693BEM331
4. Product Introduction

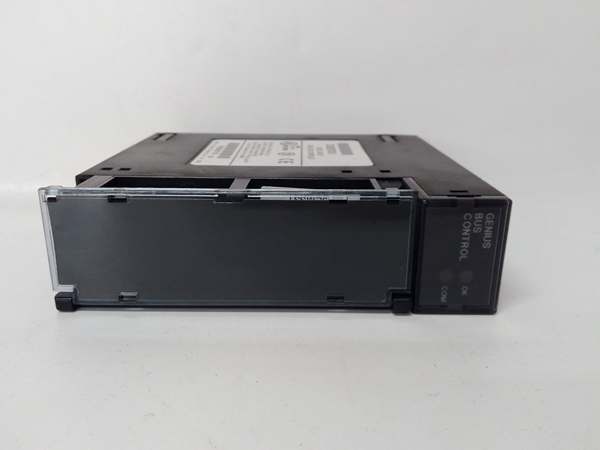

The GE IC693BEM331M is a Genius Bus Controller for Series 90-30 PLCs, linking up to 31 Genius I/O devices via a serial bus. It installs in Slot 1 for low-latency communication.
This module’s 128-byte data capacity supports complex I/O setups. Its 1500V RMS isolation resists EMI, and configurable speeds (9.6–115.2 kbps) adapt to network needs. The “M” revision adds hardware tweaks for stability, maintaining core function.
5. Firmware/Software Versions & Upgrade Notes
-
Recommended Firmware: v5.0+ (minimum for CPU compatibility; fixes v4.x bus errors).
-
Compatibility: Works with all Series 90-30 CPUs (e.g., IC693CPU331). Configure via LogicMaster 90-30 (legacy) or VersaPro (IEC 61131-3).
-
Upgrade Risks: v5.0+ requires PLC cold restart (no hot-swap). Downgrading may disable diagnostic logs—backup program first.
GE IC693BEM331
6. Frequently Asked Questions (FAQ)
1. Is hot-swapping the GE IC693BEM331M safe?
No. Hot-swapping risks backplane shorts. Power down the rack, verify 5V stability, then replace. The module draws 300 mA from the backplane—stable supply is critical.
2. Is the GE IC693BEM331M obsolete? Any direct upgrades?
Yes, OEM discontinued it. Use IC694BEM331 for Series 90-70 (updated pinout) or migrate to RX3i IC694BEM331A (1 MHz bandwidth, 64 devices).
3. Will programming memory be lost swapping the CPU with this module installed?
Only if the CPU lacks battery backup. Export the PLC program via VersaPro before swaps. The module’s firmware is local—no CPU memory impact.
4. What’s the warranty for this “New Surplus” unit?
12 months, covering defects. We perform incoming traceability (OEM serial check), 24h load tests (continuous Genius comms), and megger insulation tests (>10MΩ). Refurbished units often have 3-6 month warranties and unverified aging.
5. Why is this cheaper than OEM but pricier than refurbished?

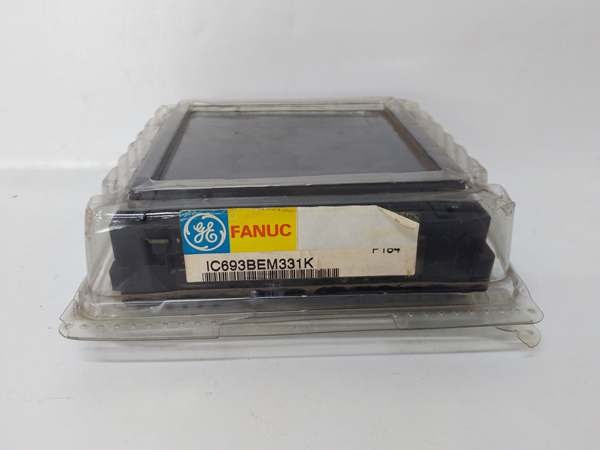

This is New Surplus: unused stock with full QC (anti-static packaging, firmware backups). Refurbished units may have degraded capacitors or untested connectors—risking unplanned downtime.
6. How do I configure the Genius bus using the module?
Use VersaPro to set device addresses and data mapping. The software auto-detects the module. Verify topology limits with OEM datasheet.
7. What ESD precautions apply?
Use grounded wrist straps. CMOS components are sensitive to >50V ESD. Store in anti-static bags when not installed.
Critical Implementation Notes
-
Technical Pitfalls: Firmware Rev Mismatches (use v5.0+), slot 1 restriction (mandatory), power budget (300 mA/module), ESD risks.
-
SOP QC: All units undergo traceability checks, Live Bench Tests (comms handshake, 24h load), Electrical Tests (megger >10MΩ), firmware backups, anti-static packaging.
-
Expandability: For >31 devices, add controllers (max 8 per PLC) or migrate to RX3i for 64-device support.
