GE IC693CPU372 | Series 90-30 PLC Single-Slot CPU Module – Specifications & Manual

Description

System Architecture & Operational Principle

Operational Workflow:

1. Power-Up & Initialization: On power-up, the AMD SC520 processor initializes the system, loads the user program from 240 KB battery-backed RAM, and performs a self-test. The module supports optional flash memory for non-volatile storage.
2. Program Execution: The CPU executes ladder logic, structured text, or C-block programs at a 0.15 ms/K Boolean scan rate, processing input signals from I/O modules (e.g., proximity switches, sensors) and generating output commands (e.g., to valves, motors).
3. I/O Communication: The backplane connects to I/O modules (e.g., IC693MDL655 24 Vdc input, IC693MDL753 12/24 Vdc output), enabling the CPU to read input signals and send output commands. The module supports up to 2048 discrete I/O points and 32,640 analog I/O words.
4. External Communication: The integrated Ethernet port (10Base-T/100Base-TX) supports TCP/IP, Modbus TCP/IP, SRTP, and EGD protocols for SCADA/DCS integration, while the serial port (RS-232/RS-485) supports SNP/SNP-X slave protocols for legacy device communication.

Architectural Advantage:

The single-slot design​ minimizes cabinet space, while the 133 MHz processor​ and 240 KB memory​ provide sufficient power for medium to large-scale applications (e.g., assembly lines, water treatment plants). The integrated Ethernet interface​ eliminates the need for a separate communication module, reducing hardware costs and simplifying wiring. The Device Level Ring (DLR) topology​ support enables redundant network connections, critical for high-reliability applications.

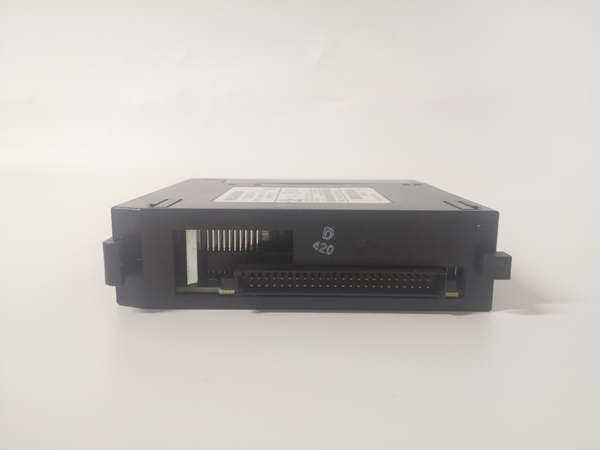

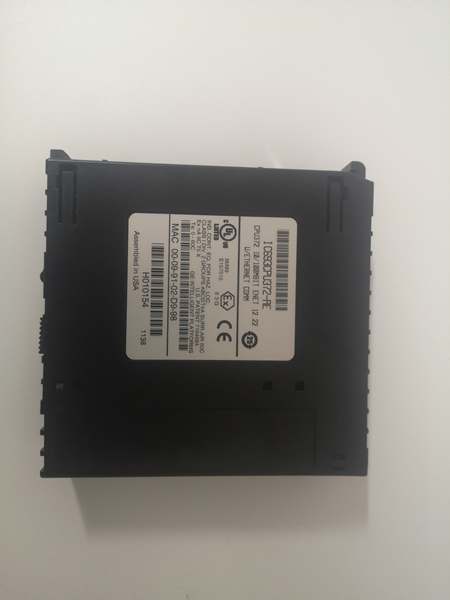

IC693CPU372

Core Technical Specifications

• Processor: AMD SC520 (32-bit, 133 MHz)
• User Memory: 240 KB RAM (battery-backed); optional flash memory for non-volatile storage
• Scan Rate: 0.15 ms per 1K Boolean logic (typical)
• I/O Capacity:
  • Discrete inputs (%I): 2048 points
  • Discrete outputs (%Q): 2048 points
  • Analog inputs (%AI): Up to 32,640 words
  • Analog outputs (%AQ): Up to 32,640 words
• Memory Allocation:
  • Discrete global memory (%G): 1280 bits
  • Internal coils (%M): 4096 bits
  • Register memory (%R): Configurable from 128 to 32,640 words
• Timers/Counters: >2000
• Communication:

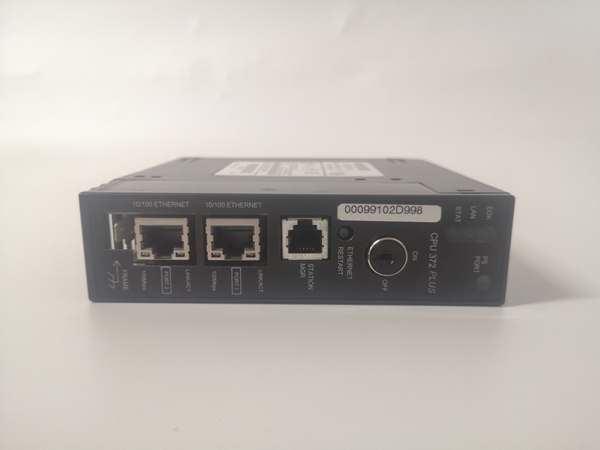

  • Ethernet: 2× RJ45 ports (10/100 Mbps, auto-sensing); supports TCP/IP, Modbus TCP/IP, SRTP, EGD
  • Serial: 1× RS-232/RS-485 port; supports SNP/SNP-X slave protocols
• Power Requirements: 7.4 W @ 5 VDC (from PLC backplane)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Compatibility: GE Series 90-30 I/O modules (e.g., IC693MDL655, IC693MDL753); supports Proficy Machine Edition for programming

Customer Value & Operational Benefits

The module supports up to 7 expansion baseplates, allowing growth as needs change. A manufacturing plant started with 1 baseplate (10 I/O points) and added 2 more (20 I/O points) to support additional sensors and valves.

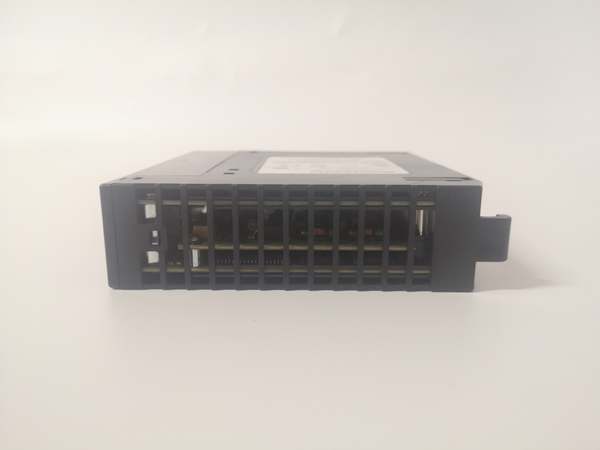

IC693CPU372

Field Engineer’s Notes (From the Trenches)

Critical Memory Management: The IC693CPU372 has 240 KB of fixed user memory—avoid using large programs or complex data structures, as this can cause memory overflow. I once saw a site where a 250 KB program caused the CPU to crash—splitting the program into two smaller programs fixed the issue.

Ethernet Port Check: Always verify the Ethernet cable is properly connected to the 10Base-T port—loose connections are the #1 cause of communication faults. I once spent 2 hours troubleshooting a comms issue, only to find the cable was unplugged.

Battery Backup: Replace the battery every 2-3 years to prevent program loss. A site once lost its program due to a dead battery, resulting in 4 hours of downtime.

I/O Slot Utilization: Use high-density I/O modules (e.g., IC693MDL655 32-point input) to maximize slot usage. A site using 32-point modules fit 2048 I/O points into 64 slots, saving 16 slots compared to 16-point modules.

Real-World Applications

• Water Treatment Plant: Controls 16 I/O modules (8 flow meters, 8 valve actuators) using 2048 discrete I/O points. The 0.15 ms/K scan rate ensures quick response to low-flow alarms, reducing water waste by 10%.
• Assembly Line: Manages 10 I/O modules (20 proximity switches, 10 motor outputs) for a conveyor system. The module’s reliable performance reduced downtime by 20% compared to the previous CPU.
• Farm Irrigation: Uses 8 I/O modules (16 moisture sensors, 8 valve outputs) to control irrigation zones. The serial port enabled connection to a legacy flow meter, avoiding a $2k upgrade.
