Description
System Architecture & Operational Principle
The IC693CPU374-DJ is a single-slot CPU module designed for the GE Series 90-30 PLC platform, typically deployed at Level 1 (Basic Control) or Level 2 (Supervisory Control) of the Purdue Model. It acts as the local processing hub, receiving command inputs from upstream HMI or DCS systems via Ethernet or serial links. Downstream, it executes ladder logic or C-block programs to manage discrete and analog I/O modules on the same backplane, driving outputs to actuators, valves, and drives. The inherent advantage of the Series 90-30 backplane is its parallel data bus, which allows hot-swapping of I/O modules without shutting down the entire system, a critical feature for minimizing process interruptions. The CPU’s integrated Ethernet ports eliminate the need for a separate communication card, simplifying cabinet wiring. In the field, you’ll find this module in compact panels where space is at a premium, such as pump stations or skid-mounted equipment. Its 133 MHz processor handles typical discrete logic with a 0.15 ms/K scan rate, which is adequate for most small to medium processes.

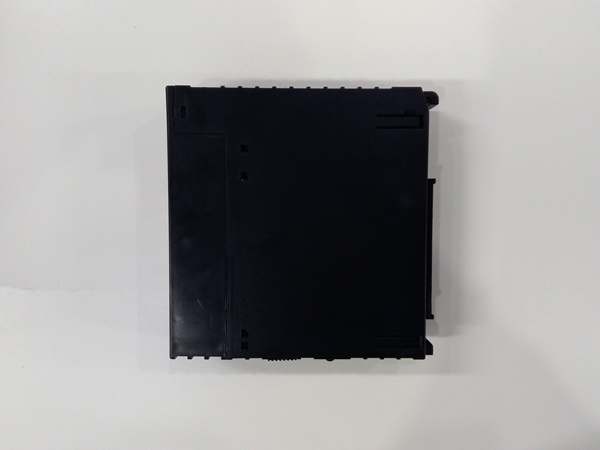

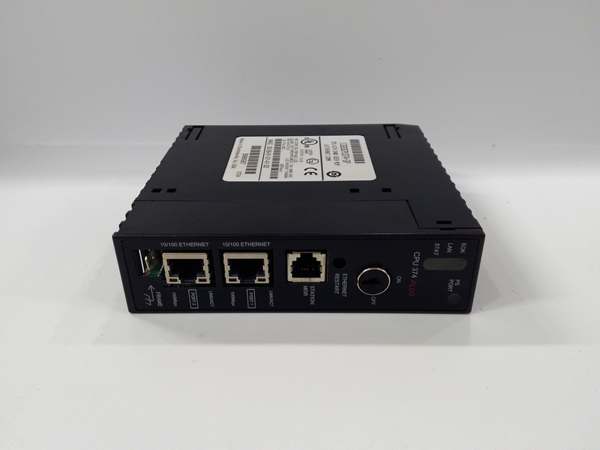

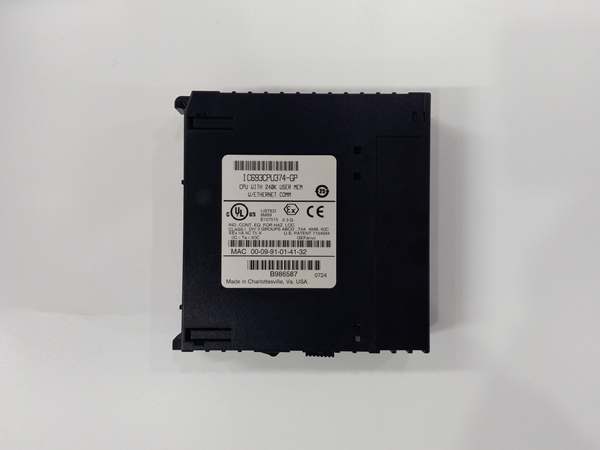

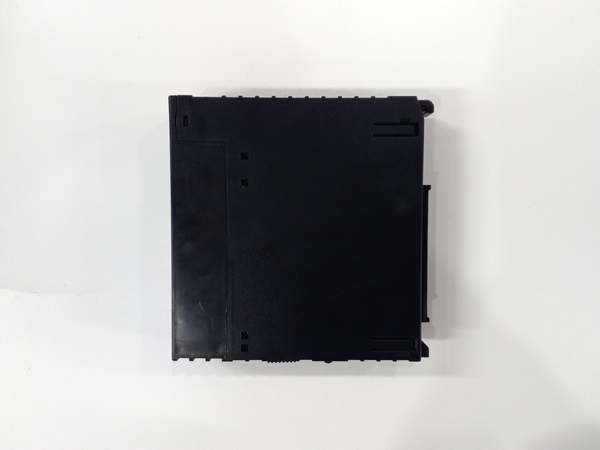

GE IC693CPU374
Core Technical Specifications
-
Processor: AMD SC520 (32-bit, 133 MHz)
-
User Memory: 240 KB RAM (battery-backed)
-
Scan Rate: 0.15 ms per 1K Boolean logic
-
I/O Capacity: 2048 discrete points (max)
-
Analog Capacity: 32,640 words (max)
-
Communication: 2x 10/100Base-TX Ethernet (RJ45), 1x RS-232/RS-485 serial
-
Protocols: TCP/IP, Modbus TCP/IP, SRTP, EGD, SNP/SNP-X
-
Backplane Power Draw: 7.4 W @ 5 VDC
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Form Factor: Single-slot, modular
-
Mounting: Series 90-30 backplane
Customer Value & Operational Benefits
Space Efficiency
The single-slot design saves valuable DIN rail or panel space. In one application, replacing a larger rack-mount CPU with this module freed up enough room to add a safety relay, all within the same enclosure.
Legacy System Retention
The serial port’s support for SNP/SNP-X protocols lets you keep older field devices, like a vintage flow meter or HMI, online. This avoids a costly, forklift upgrade of the entire control system just to maintain one piece of equipment.
Reduced Wiring Complexity
With two onboard Ethernet ports, you can daisy-chain other Ethernet-enabled devices, cutting down on the spaghetti of home-run cables back to a central switch. This simplifies troubleshooting and reduces potential failure points.
Field Engineer’s Notes (From the Trenches)
On a job in a paper mill, we had an IC693CPU374 lose its program after a power blip. Turned out the battery was 4 years old, past its prime. Now I make it a rule to check the battery LED on these modules every annual shutdown. If it’s yellow, replace it. A $50 battery beats a 4-hour drive to restore the program from a backup. Also, when adding expansion baseplates, watch the total 5V current draw on the power supply; these CPUs are thirsty, and a marginal supply will cause random faults.GE IC693CPU374
Real-World Applications
-
Wastewater Lift Station Control
-
Monitors level transmitter inputs (%AI)
-
Alternates two pumps based on runtime hours
-
Sends alarm status to a remote SCADA via Ethernet
-
-
Small-scale Packaging Line
-
Reads photoelectric sensor inputs for part presence
-
Controls a small servo motor for positioning
-
Manages E-stop and safety interlock logic
-
High-Frequency Troubleshooting FAQ
Q: Is the IC693CPU374-DJ a direct replacement for the standard IC693CPU374?
A: Physically, yes, it should plug into the same backplane slot. However, the “-DJ” suffix indicates a non-standard version. Verify its firmware revision and memory size with the supplier. Test it in a non-critical system first if possible, as third-party modifications can introduce subtle timing or grounding differences.
Q: How do I confirm the memory size of my IC693CPU374-DJ in the field?
A: Use Proficy Machine Edition software. Go online with the controller, open the hardware configuration, and check the properties of the CPU module. The memory allocation for %R registers and program size will be displayed. A 240 KB module will show a max of 32,640 words for register memory.
Q: What are the common causes of communication timeouts with the IC693CPU374-DJ’s Ethernet port?
A: First, check the Ethernet cable for breaks, especially near the connector. Use a known-good patch cord. Second, verify the IP address is set correctly and doesn’t conflict with another device. Third, inspect the 5V power at the backplane; a sagging supply can cause the Ethernet PHY to drop packets.
Q: Can I use an IC693CPU374-DJ in a system with mixed-generation I/O?
A: Yes, the Series 90-30 backplane architecture supports mixing older and newer I/O modules (e.g., IC693MDLxxx and IC694MDLxxx) as long as the total I/O count and power budget are respected. The CPU will autodetect the module types during startup.
