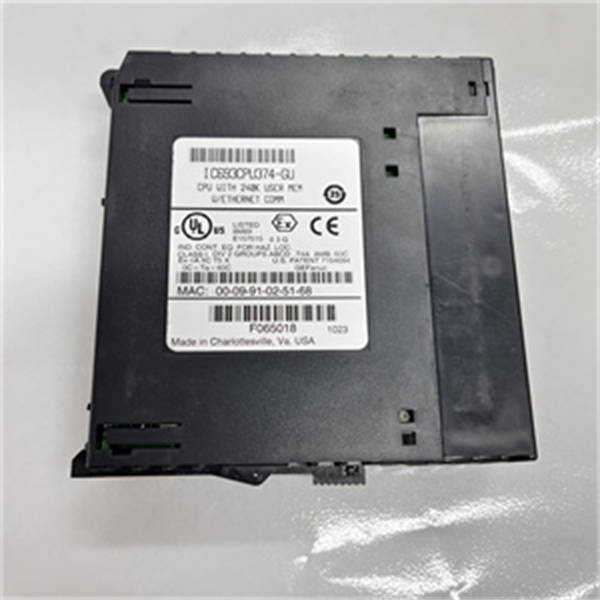

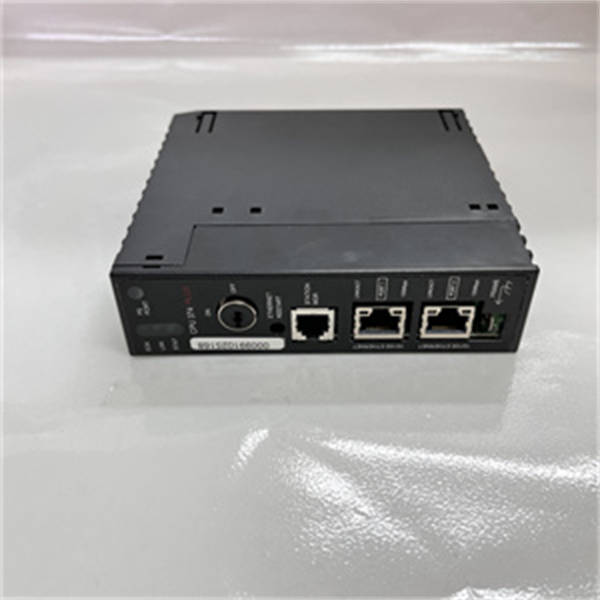

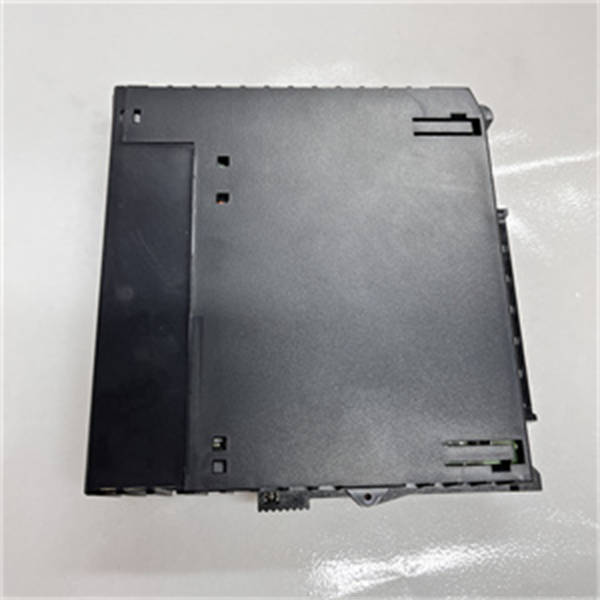

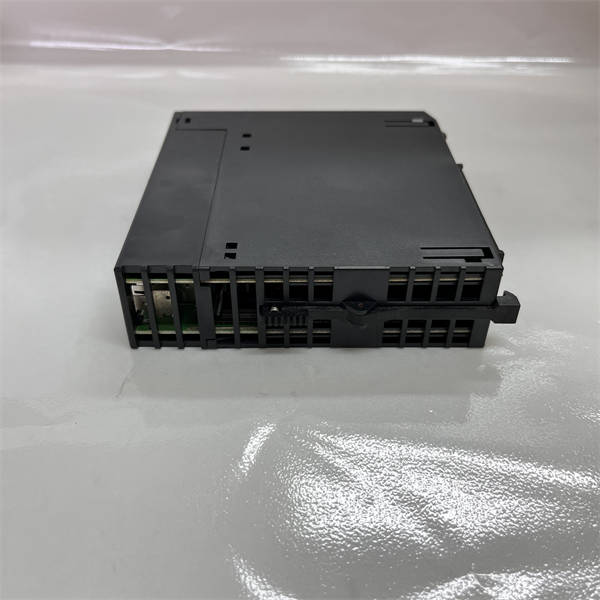

GE IC693CPU374-GU

Product Introduction

The GE IC693CPU374-GU is a high-performance 32-bit CPU module engineered for GE’s PACSystems 90-30 platform, designed to handle medium-scale industrial automation tasks with enhanced processing speed and connectivity. As the core of 90-30 control systems, it executes complex control logic, manages I/O data exchange, and enables seamless communication with human-machine interfaces (HMIs), SCADA systems, and remote devices—making it ideal for manufacturing lines, water treatment plants, and material handling systems.

Distinguished from entry-level 90-30 CPUs (e.g., IC693CPU313), the IC693CPU374-GU features a 100 MHz RISC processor and expanded memory (32 MB Flash + 16 MB SRAM), supporting larger program sizes (up to 16 MB) and faster instruction execution (0.1 μs per basic ladder rung). Its integrated Ethernet port enables Modbus TCP/IP communication for remote monitoring, while the RS-485 interface connects to field devices like variable frequency drives (VFDs) and temperature controllers. For mission-critical applications, it supports hot-standby redundancy to eliminate unplanned downtime, solidifying its role as a reliable control hub for industrial operations.

Core Advantages and Technical Highlights

High-speed processing for complex logic: The GE IC693CPU374-GU’s 100 MHz 32-bit RISC processor delivers a 40% faster instruction execution rate than the IC693CPU313 (0.1 μs vs. 0.17 μs per ladder rung), enabling real-time control of multi-axis motion systems and batch processing lines. Its 32 MB Flash memory accommodates large-scale programs (e.g., 50,000+ ladder rungs) with room for firmware updates, while 16 MB SRAM supports high-volume data logging (e.g., 10,000+ analog input values per second). For example, in a beverage filling line, the CPU can synchronize 8 filling heads, monitor 32 pressure sensors, and adjust flow rates in 10 ms increments—ensuring precise volume control and reducing product waste by 15% compared to slower CPUs.

Dual-network connectivity for integrated systems: Unlike basic 90-30 CPUs with only serial ports, the IC693CPU374-GU integrates Ethernet (10/100 Base-TX) and RS-485 interfaces, plus an RS-232 port for local programming. The Ethernet port supports Modbus TCP/IP (Client/Server), enabling direct communication with GE Proficy iFIX SCADA or third-party HMIs (e.g., Siemens SIMATIC HMI) without additional gateways. The RS-485 port (Modbus RTU) connects to up to 32 field devices in a daisy-chain topology, reducing wiring complexity in distributed I/O systems. In a wastewater treatment plant, this connectivity allows the CPU to send pH sensor data to a cloud-based monitoring platform via Ethernet while controlling pumps and valves via RS-485—streamlining operation and compliance reporting.

Hot-standby redundancy for uninterrupted operation: The IC693CPU374-GU supports hot-standby redundancy when paired with the IC693CMM321 communication module and a secondary CPU. The primary CPU continuously synchronizes program logic and data to the standby unit, achieving a failover time of less than 100 ms if the primary unit fails (e.g., due to power surge or component fault). This is critical for applications like chemical mixing, where process interruption can lead to hazardous material reactions or product spoilage. For instance, in a pharmaceutical batch reactor, redundancy ensures the CPU maintains temperature and pressure setpoints even during a primary unit failure—avoiding $50,000+ in lost product per batch.

IEC 61131-3 compliance for flexible programming: The GE IC693CPU374-GU supports all five IEC 61131-3 programming languages, allowing engineers to choose the optimal language for each task: Ladder Logic for discrete control (e.g., conveyor sequencing), Function Block Diagram for analog loop control (e.g., temperature regulation), and Structured Text for complex algorithms (e.g., predictive maintenance). This flexibility simplifies integration with legacy systems (often programmed in Ladder Logic) and modern IIoT-enabled applications (requiring Structured Text for data processing). GE’s Proficy Machine Edition software provides a unified development environment for programming, debugging, and monitoring—reducing setup time by 30% compared to vendor-specific tools.

Typical Application Scenarios

Automated manufacturing lines: In automotive component assembly lines, the GE IC693CPU374-GU controls robotic arms, vision inspection systems, and conveyor belts via 90-30 I/O modules (e.g., IC693MDL240 digital output modules). Its 100 MHz processor synchronizes 12+ robots with 1 ms precision, while the Ethernet port transmits production data (e.g., cycle time, defect count) to a plant-wide MES system. Hot-standby redundancy ensures the line runs 24/7 without unplanned stops—critical for meeting just-in-time production targets. The CPU’s expandable memory also accommodates frequent product changeovers (e.g., switching between sedan and SUV components) by storing multiple program versions.

Water and wastewater treatment: Municipal wastewater plants rely on the IC693CPU374-GU to manage aeration systems, sludge dewatering equipment, and chemical dosing pumps. The CPU uses Modbus RTU (via RS-485) to monitor dissolved oxygen sensors and control blowers, maintaining optimal biological treatment conditions. Its Ethernet port sends compliance data (e.g., effluent pH, turbidity) to a regional environmental agency’s SCADA system, while fault logging tracks pump runtimes for preventive maintenance. The CPU’s 0°C to 60°C operating range withstands harsh plant environments (humid, chemical-laden air) without performance degradation.

Material handling and logistics: In a warehouse distribution center, the GE IC693CPU374-GU controls automated guided vehicles (AGVs), conveyor sorters, and palletizers. The RS-485 port communicates with AGV navigation systems to optimize route planning, while the Ethernet port integrates with a WMS (Warehouse Management System) to receive order data. The CPU’s fast instruction execution ensures sorters divert packages to the correct shipping lane in < 50 ms—handling 1,200+ packages per hour. Hot-standby redundancy prevents downtime during peak shipping seasons (e.g., holiday periods), avoiding $10,000+ in daily lost revenue.

GE IC693CPU374-GU

Related Model Recommendations

GE IC693CHS391: 9-slot 90-30 rack, compatible with IC693CPU374-GU. Ideal for small-to-medium systems (e.g., 200+ I/O points) in manufacturing cells.

GE IC693PWR321: 24 V DC power supply module for 90-30 racks. Delivers stable power to the CPU (1.2 A @ 5 V DC) and connected I/O modules.

GE IC693MEM321: 32 MB memory expansion module. Doubles the IC693CPU374-GU’s SRAM for large-scale data logging (e.g., oil refinery process data).

GE IC693CMM321: Communication module for hot-standby redundancy. Enables synchronization between primary and standby IC693CPU374-GU units.

GE IC693MDL240: 16-channel digital output module. Paired with the CPU to control motors, valves, and indicators in automation lines.

GE IC693MDL330: 8-channel analog input module. Collects sensor data (temperature, pressure) for processing by the IC693CPU374-GU.

GE IC693ETM001: Ethernet/IP communication module. Adds Ethernet/IP support to the CPU for integration with Allen-Bradley devices (e.g., VFDs).

GE IC693DNM200: DeviceNet master module. Connects the CPU to DeviceNet networks (e.g., for automotive assembly line robots).

GE Proficy Machine Edition: Programming software for IC693CPU374-GU. Supports IEC 61131-3 languages, debugging, and remote monitoring.

GE IC693TBB302: Terminal base for 90-30 I/O modules. Provides wiring terminals for I/O signals and backplane communication with the CPU.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC693CPU374-GU, power off the 90-30 rack (e.g., IC693CHS391) and wear an anti-static wristband. Ensure the rack’s slot 1 (CPU slot) is vacant and powered by a compatible supply (IC693PWR321). Gather tools: Phillips screwdriver, torque wrench (2.5 N·m for rack screws), Cat5e Ethernet cable, RS-232 programming cable, and a PC with Proficy Machine Edition (v9.0+). Verify the environment meets specs: 0°C to 60°C, 5%-95% humidity, and compliance with UL 508 requirements. For dusty environments, install a rack enclosure with filtered ventilation.

Commissioning steps:

Align GE IC693CPU374-GU with slot 1 of the rack, slide it into place, and secure with screws (torque to 2.5 N·m). Ensure the backplane connector is fully seated to avoid communication loss.

Power on the rack and confirm LEDs: green (power), steady green (CPU run), solid yellow (Ethernet link), and off (fault indicators). A flashing red LED indicates a memory or communication error.

Connect the PC to the CPU’s RS-232 port (programming) or Ethernet port, launch Proficy Machine Edition, and establish a connection via “Device Discovery.” Update the CPU firmware to the latest version (critical for redundancy compatibility).

Configure settings: Assign an IP address to the Ethernet port, enable Modbus TCP/IP (Server mode, port 502), and set up RS-485 parameters (baud rate 9600, parity none). Upload the control program from Proficy Machine Edition to the CPU’s Flash memory.

Test functionality: Switch the CPU to RUN mode and verify I/O operation (e.g., activate a digital output via HMI and check the LED on IC693MDL240). Test redundancy (if configured) by powering off the primary CPU—confirm standby unit takes over in < 100 ms.

Maintenance suggestions:

Daily: Inspect LEDs—steady green (run) and yellow (Ethernet link) indicate normal operation. Flashing red LEDs require immediate diagnostic checks.

Weekly: Clean the CPU’s vents with compressed air (low pressure <30 psi) to remove dust (prevents overheating). Check Ethernet/RS-485 cables for damage (e.g., frayed insulation).

Monthly: Use Proficy Machine Edition to run a diagnostic scan—check memory usage (target <80%), fault logs, and redundancy synchronization status. Back up the program to an encrypted drive.

Quarterly: Verify power supply stability (measure 5 V DC at the rack backplane; tolerance ±5%). Test the hot-standby failover by simulating a primary CPU fault (e.g., disconnect power).

Annually: Inspect the CPU for corrosion (especially in humid environments) and replace if connectors show signs of rust. Calibrate analog I/O modules connected to the CPU to ensure measurement accuracy.

Service and Guarantee Commitment

The GE IC693CPU374-GU is backed by a 3-year standard manufacturer’s warranty from GE Industrial Solutions, covering defects in materials, workmanship, and processing performance (e.g., instruction execution speed, memory reliability) under normal use. During the warranty period, GE will repair or replace faulty units free of charge, including 48-hour expedited shipping for critical applications.

Beyond warranty, GE offers tailored support for the IC693CPU374-GU:

24/7 technical assistance: Certified engineers specializing in 90-30 systems assist with redundancy setup, programming troubleshooting, and communication integration—available via phone, email, and live chat.

Online resources: Access detailed manuals, firmware updates, and video tutorials on GE’s Industrial Support Portal. Webinars cover topics like “Maximizing IC693CPU374-GU Performance in Manufacturing” and “Hot-Standby Redundancy Configuration.”

Extended service contracts: Customizable plans include annual on-site maintenance (CPU health checks, program optimization), priority technical support (30-minute response), and advance replacement (global warehouse stock for 24-hour delivery).

GE’s 90-30 platform legacy (over 25 years of industrial deployment) ensures long-term availability of spare parts and support for the IC693CPU374-GU, protecting your automation investment for decades.
