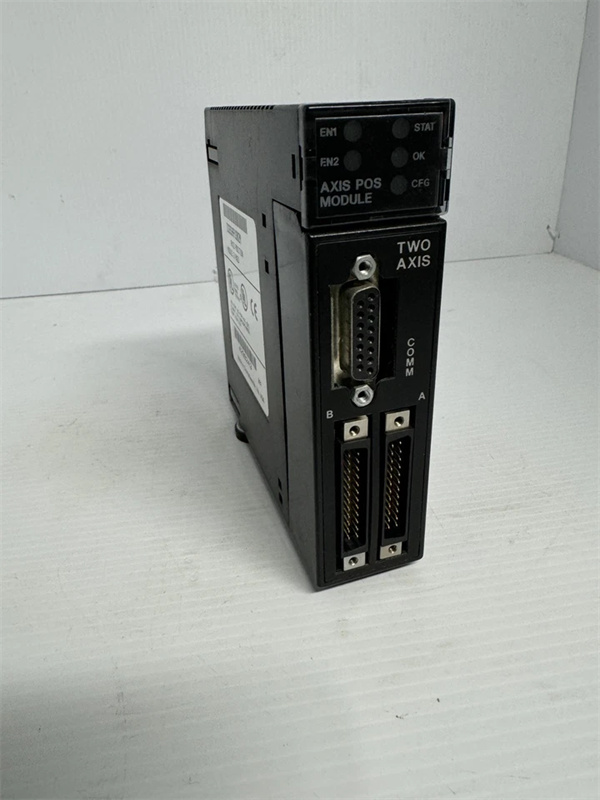

GE IC693DSM302-RE

Product Introduction

GE IC693DSM302-RE is a high-performance digital servo motion control module engineered exclusively for GE’s 90-30 Series PLC systems, serving as the “precision motion brain” for industrial machinery requiring accurate, synchronized multi-axis control. Unlike basic I/O modules that lack motion-specific functionality, GE IC693DSM302-RE delivers 2-axis servo control (position, velocity, torque) with advanced features like electronic gearing and camming—enabling seamless integration of motion control into 90-30 PLC logic for applications such as robotic assembly, packaging line synchronization, and CNC machining.

As a core motion component of the 90-30 ecosystem, GE IC693DSM302-RE bridges the gap between PLC control and servo drive operation: it receives motion commands from 90-30 CPUs (e.g., GE IC693CPU374), processes encoder feedback to adjust servo output, and communicates drive status back to the PLC—all in real time. For example, in an automotive component assembly plant, GE IC693DSM302-RE controls two robotic gripper axes: it executes position commands to pick up parts (absolute position control) and synchronizes with a conveyor belt (electronic gearing), ensuring parts are placed with ±0.1mm accuracy—critical for meeting tight assembly tolerances.

Core Advantages and Technical Highlights

2-Axis Independent Control with Multi-Mode Flexibility: GE IC693DSM302-RE supports 2 independent servo axes, each configurable for position, velocity, or torque control—eliminating the need for separate single-axis motion modules. A packaging machine manufacturer uses one axis for film unwind (velocity control) and the second for product indexing (position control), reducing module count by 50% compared to single-axis solutions. This flexibility also enables quick reconfiguration for different product sizes, cutting changeover time by 30% (from 1 hour to 42 minutes).

High Position Resolution for Precision Applications: With up to 1,000,000 counts/revolution (via encoder multiplication), GE IC693DSM302-RE delivers ±0.1mm positioning accuracy—essential for industries like electronics manufacturing (PCB assembly) or medical device production. A semiconductor packaging plant using the module to align chip dies achieved 99.9% placement accuracy, reducing scrap rates by 25% compared to lower-resolution motion modules (500,000 counts/revolution).

Electronic Gearing/Camming for Synchronized Motion: The module’s electronic gearing and camming features enable precise synchronization between axes or with external processes (e.g., conveyor belts, printing rollers). A label printing plant uses electronic gearing to sync the label application axis with a product conveyor—ensuring labels are applied at exactly 100mm intervals, even as conveyor speed varies (0.5–2 m/s). This synchronization eliminated label misalignment, reducing material waste by $15,000 annually.

Encoder Signal Loss Detection for Fault Resilience: GE IC693DSM302-RE continuously monitors encoder feedback and triggers a fault alert if signals are lost—preventing machinery damage or product defects. During a loose encoder cable incident at a CNC router shop, the module detected signal loss within 1ms and halted the router axis, avoiding a $2,000 workpiece scrap and 2-hour machine repair. The amber warning LED also provided quick visual identification of the issue, accelerating troubleshooting.

Seamless 90-30 Backplane Integration: Unlike standalone motion controllers that require complex communication setup, GE IC693DSM302-RE integrates directly with the 90-30 backplane—enabling real-time data exchange with the PLC (e.g., motion commands, axis status) without custom drivers. A machine builder installing 15 motion-equipped 90-30 systems reduced programming time by 60% (from 8 hours to 3.2 hours per system) compared to third-party motion controllers, accelerating time-to-market.

Typical Application Scenarios

GE IC693DSM302-RE excels in precision motion control applications across industries, with three high-impact use cases:

In automotive component assembly, GE IC693DSM302-RE controls two robotic arm axes (gripper position, rotation) in a 90-30 system powered by GE IC693PWR330G. The module executes absolute position commands to pick up bolts (±0.05mm accuracy) and uses electronic camming to sync with a rotating assembly table—ensuring bolts are tightened at exactly the right angle. The PLC logic (via GE IC693CPU374) adjusts motion parameters for different bolt sizes, enabling the line to produce 3 vehicle models without hardware changes. Over 2 years, the module maintained 99.8% uptime, avoiding 12+ unplanned production halts.

In electronics PCB assembly, GE IC693DSM302-RE controls a pick-and-place machine’s X/Y axes: the X-axis (position control) moves the nozzle to component trays, while the Y-axis (velocity control) positions PCBs under the nozzle. The module’s 1,000,000 counts/revolution resolution ensures components (0402 resistors) are placed with ±0.1mm accuracy, meeting IPC-A-610 standards. Encoder signal loss detection prevented a nozzle crash during a sensor failure, saving $5,000 in nozzle replacement and PCB scrap.

In food packaging (chocolate bar wrapping), GE IC693DSM302-RE uses electronic gearing to sync two axes: one for wrapping film unwind (velocity control, 0.8–1.2 m/s) and the second for product pushers (position control, 50 pushes per minute). The module adjusts film unwind speed in real time to match pusher frequency, ensuring each chocolate bar is wrapped with exactly 5mm of film overlap. This synchronization reduced film waste by 18% and increased production capacity by 10% (from 500 to 550 bars per hour).

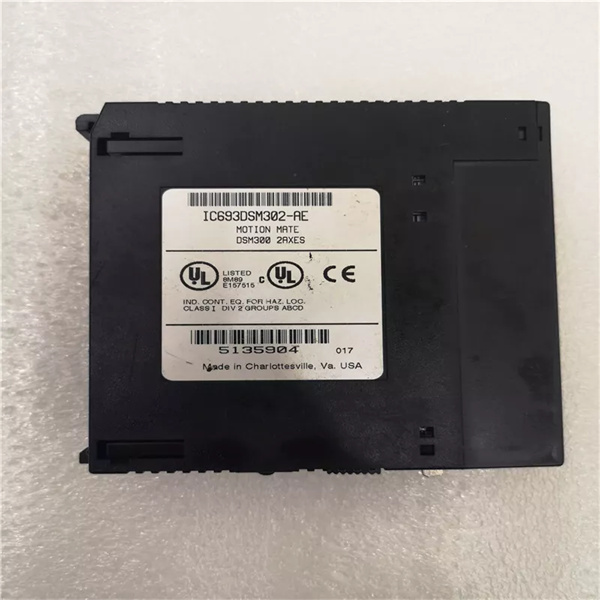

GE IC693DSM302-RE

Related Model Recommendations

GE IC693DSM101-RE: 1-Axis Digital Servo Motion Module – Single-axis alternative to GE IC693DSM302-RE for applications requiring only one motion axis (e.g., simple conveyor indexing).

GE IC693CPU374: 90-30 High-Performance CPU – Sends motion commands to GE IC693DSM302-RE and processes status feedback for integrated PLC-motion control.

GE IC693PWR330G: 90-30 Power Supply – Provides stable 5V DC to GE IC693DSM302-RE and other 90-30 modules in the motion control system.

GE IC693CHS390: 9-Slot 90-30 Chassis – Houses GE IC693DSM302-RE, CPU, and I/O modules for compact motion control setups.

GE ServoDrive 5000: Compatible Servo Drive – Works with GE IC693DSM302-RE to power servo motors (supports up to 5kW, 10,000 rpm).

GE High-Resolution Encoder (IC693ENC001): 1Vpp Differential Encoder – Provides feedback to GE IC693DSM302-RE for 1,000,000 counts/revolution resolution.

GE Proficy Machine Edition v10.0 (Motion Pack): Programming Software – Configures GE IC693DSM302-RE (control modes, encoder settings) and creates custom motion profiles.

GE IC693DI201: 90-30 Digital Input Module – Monitors limit switches/safety sensors, sending stop signals to GE IC693DSM302-RE for emergency shutdown.

GE IC693DO106: 90-30 Digital Output Module – Controls servo drive enable signals and machine indicators, integrated with GE IC693DSM302-RE’s fault status.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC693DSM302-RE, confirm compatibility with the 90-30 chassis (GE IC693CHS390), CPU (GE IC693CPU374), and servo drive (e.g., GE ServoDrive 5000). Ensure the environment meets 0°C–+60°C and 5%–95% RH (non-condensing); avoid mounting near high-EMI sources (e.g., servo drives, high-power motors). Required tools: Torque screwdriver (0.5–0.8 N·m), ESD-safe gloves, encoder cable tester, and Proficy Machine Edition v10.0 (Motion Pack). Safety precautions: Disconnect chassis and servo drive power; apply lockout/tagout to prevent accidental startup during wiring.

Mount GE IC693DSM302-RE in an empty 90-30 chassis slot, align with the backplane connector, and secure with the chassis locking screw (torque to 0.6 N·m). Wire encoder inputs (differential signals) to the module’s terminal block (ensure correct polarity for A/B channels); connect servo drive outputs (±10V analog, enable/reset) to the drive’s control inputs. Power on the chassis and servo drives; verify LEDs: green (power, axes ready), no red (fault). Use Proficy Machine Edition to configure control modes (e.g., position control for Axis 1), set encoder resolution (1,000,000 counts/rev), and calibrate servo gains (proportional, integral) for stable motion. Test motion by sending a short position command (e.g., 100mm) and confirming encoder feedback matches the target.

Maintenance suggestions: For daily use, inspect GE IC693DSM302-RE’s LEDs—red/amber LEDs indicate faults (check Proficy for details: encoder loss, drive fault). Every 6 months, clean the module with compressed air (remove dust from terminals/vent), inspect encoder cables for damage (replace if frayed), and retighten terminal block screws (torque to 0.4 N·m). Annually, recalibrate servo gains (via Proficy) to account for mechanical wear (e.g., belt stretch), and test emergency stop functionality (ensure axes halt within 100ms of stop signal). Replace with GE-approved GE IC693DSM302-RE spares—third-party modules may not match 90-30 backplane timing or encoder feedback processing.

Service and Guarantee Commitment

GE IC693DSM302-RE is backed by a 36-month manufacturer’s warranty from GE, covering defects in materials, motion control performance (position accuracy, synchronization), and feedback processing under normal industrial use. If GE IC693DSM302-RE fails within the warranty period (e.g., encoder signal processing error, output circuit fault), GE will repair or replace the module free of charge, including expedited shipping (2–3 business days) for production-critical systems (e.g., automotive assembly, electronics manufacturing).

GE provides dedicated 24/7 technical support for GE IC693DSM302-RE, including a team of motion control specialists with expertise in servo tuning, encoder integration, and synchronized motion. Support includes on-site troubleshooting (within 48 hours for multi-axis systems), firmware updates (with motion profile compatibility checks), and training on advanced features (electronic gearing/camming setup). For customers with large-scale deployments (10+ modules), GE offers optional motion system audits—verifying positioning accuracy, optimizing servo gains, and ensuring compliance with industry standards (e.g., IPC-A-610, ISO 9001).

To maximize lifecycle reliability, GE recommends biennial “motion system health checks” (performed by GE-certified technicians) that include encoder calibration, servo drive compatibility testing, and motion profile validation. This commitment reflects GE’s confidence in GE IC693DSM302-RE’s ability to deliver precise, reliable motion control for 90-30 systems for 10+ years.
