Description
System Architecture & Operational Principle
The IC693MAR590 sits squarely in the field device layer of a typical industrial control system, directly interfacing with sensors and actuators. It plugs into the standard backplane of a GE Series 90-30 PLC rack. During each scan cycle, the CPU reads the status of the module’s eight input channels via the backplane bus, translating field device states (e.g., a limit switch closed) into binary data for the control logic. Conversely, the CPU writes output commands to the module, which energizes or de-energizes the corresponding electromechanical relay coils. The relay’s physical SPST-NO contacts then close or open to control the downstream load, such as a solenoid valve or motor starter coil.The primary architectural advantage is consolidation. Instead of dedicating one slot for an input module and another for an output module, this mixed I/O module handles both, effectively doubling the functional density per slot. The 90-30 backplane provides deterministic, low-latency communication between the CPU and all I/O modules, ensuring synchronized scanning. The module’s 1500V RMS isolation between field wiring (inputs/outputs) and the logic-side backplane is critical for noise immunity and protecting the sensitive CPU electronics from transients or faults on the 120VAC field side .

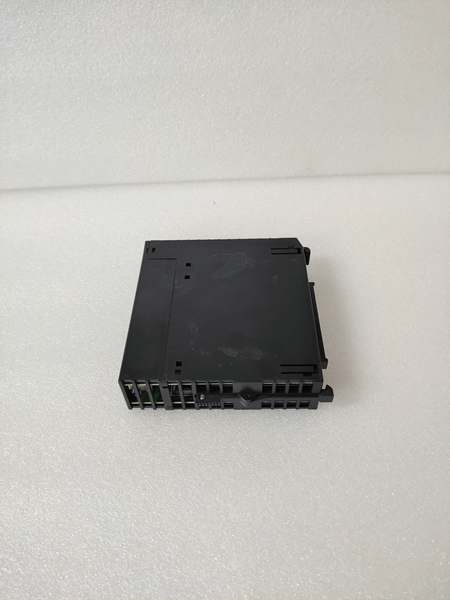

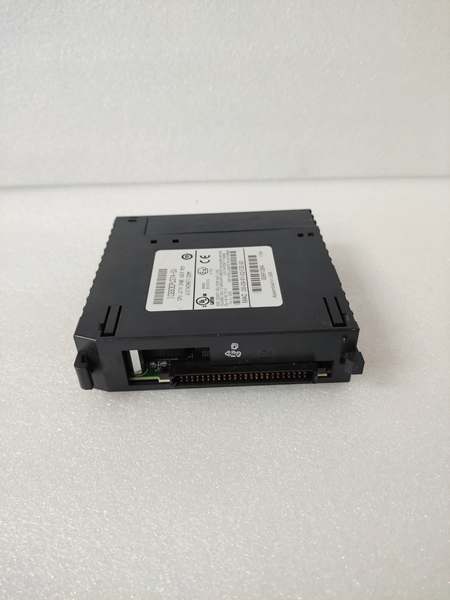

GE IC693CPU374
Core Technical Specifications
- Physical Interface: 20-position screw terminal block (included).
- Signal Type: Digital Input (AC/DC compatible); Relay Output (SPST-NO, Form A).
- Channel Density: 8 Isolated Inputs, 8 Relay Outputs.
- Communication Bus: GE Series 90-30 proprietary backplane.
- Input Voltage Range: 0–30 VDC or 0–132 VAC.
- Output Rating: 5–30 VDC or 5–250 VAC, 2A maximum per point, 8A maximum per module.
- Response Time: <10ms (input to CPU), <10ms (CPU to output).
- Power Draw: 160 mA @ 5VDC (supplied from PLC backplane).
- Isolation: 1500 V RMS input-to-output and channel-to-backplane.
- Operating Temperature: 0°C to +60°C (32°F to 140°F).
- Protection Rating: IP20 (for installation inside a control cabinet).
- Diagnostics: Individual LED status indicator for each input and output channel.
Customer Value & Operational Benefits
Space Optimization & Wiring SimplificationBy combining 8 inputs and 8 outputs in one module, you effectively free up a slot in the PLC rack. This allows for system expansion without adding a new chassis or reduces the initial cabinet footprint. Field wiring is consolidated to one terminal block, cutting installation time and reducing points of potential failure in multi-module systems.Maintenance Efficiency & Diagnostic TransparencyThe per-channel LEDs are not a gimmick. When a pump doesn’t start, you can immediately see if the PLC is commanding the output (LED on) and infer if the relay contact might be faulty or the load is open. This visual triage can slash Mean Time To Repair (MTTR) by minutes or hours, preventing extended production stoppages for simple faults.Application Flexibility & Load CompatibilityThe AC/DC compatible input circuitry means you aren’t locked into one sensor voltage type. You can mix 24VDC proximity switches and 120VAC limit switches on the same module. The relay outputs’ ability to switch both AC and DC loads up to 2A provides direct control for small motors, indicator lamps, and solenoid valves without requiring an interposing relay in many cases, simplifying the design.
Field Engineer’s Notes (From the Trenches)
Don’t let the 2A relay rating fool you into thinking it’s fine for any small motor. The inrush current of a 1/4 HP AC motor can easily spike 6-8 times its running current, welding the contacts on the first few starts. I’ve replaced dozens of these modules in conveyor applications where the design didn’t account for inductive load inrush. Always check the motor’s locked-rotor current (LRA). If it’s more than 2A, or if the load is highly inductive (solenoids, contactor coils), you must use an external relay or contactor rated for the load. The module’s relay should only drive the coil of that larger device. Adding an RC snubber across inductive loads is cheap insurance against contact arcing and premature failure .

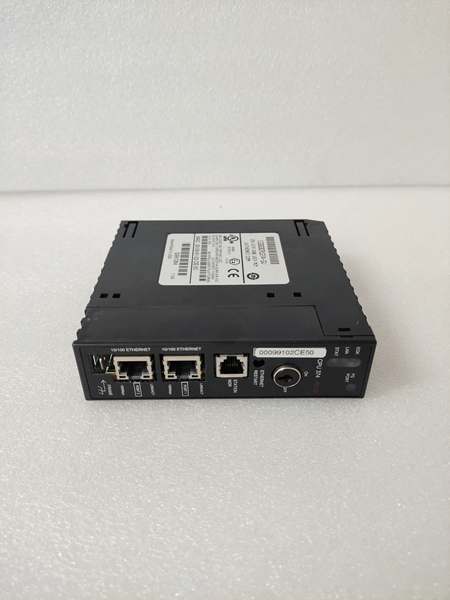

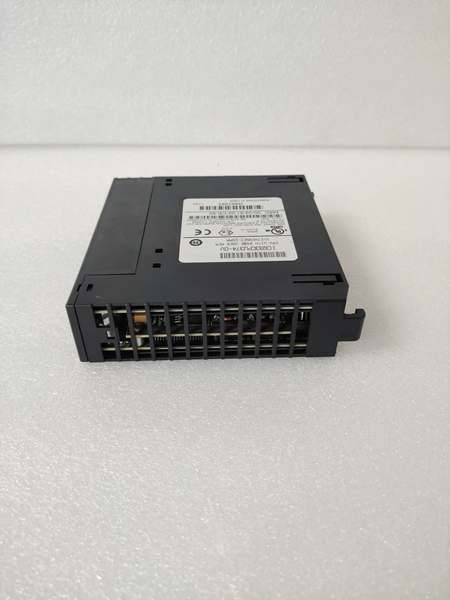

GE IC693CPU374
Real-World Applications
- Packaging Machine Line Control:
- Inputs: Monitor photoelectric sensors for product presence, limit switches for mechanical arm position, and push-button stations for operator commands (typically 24VDC or 120VAC).
- Outputs: Directly control the coils of pneumatic solenoid valves for actuating rams and sealers, and energize small conveyor motor starters (within current rating).
- Role: The module provides the critical real-time interface between the PLC’s sequential logic and the machine’s physical actions, enabling start/stop, jam detection, and cycle completion.
- Water Treatment Chemical Dosing System:
- Inputs: Read status from liquid level float switches in chemical tanks and dry contacts from flow meters.
- Outputs: Start/stop chemical feed pumps and agitator motors based on level and flow signals.
- Role: It acts as the primary control interface for automated batching, ensuring pumps run only when tanks have sufficient chemical and process flow is present, implementing basic safety interlocking.
High-Frequency Troubleshooting FAQ
Q: The input LED on my IC693MAR590 is lit, but the PLC logic doesn’t see the signal. What’s wrong?A: First, verify the input voltage with a meter. The LED may illuminate at a lower voltage than the module’s reliable turn-on threshold (typically ~74VAC for AC, ~11.5VDC for DC). If voltage is sufficient, check the module’s seating in the backplane and the CPU’s I/O configuration in the programming software (e.g., Proficy Machine Edition) to ensure the correct slot is mapped.Q: How do I diagnose and fix a stuck relay output on the IC693MAR590?A: Confirm the issue by checking for output voltage when the PLC command is off. If voltage is present, the contacts are likely welded. Do not attempt to repair the internal relay. Replace the module. To prevent recurrence, investigate the load: measure the actual current with a clamp meter during operation and startup to ensure it’s within the 2A rating, and add appropriate suppression (RC network for AC, diode for DC) for inductive loads.Q: Is the IC693MAR590 a direct drop-in replacement for an IC693MDR390?A: No. While both are 8-in/8-out mixed modules for the 90-30 series, they have different input types. The MAR590 accepts 120VAC inputs, while the MDR390 accepts 24VDC inputs . Swapping them without changing the field wiring and sensor power supply will result in input circuit incompatibility and likely module damage or non-operation.Q: The IC693MAR590 module feels excessively hot to the touch. What could cause this?A: Heat is a sign of overcurrent. Calculate the total current draw across all active outputs (sum of load currents). If it approaches or exceeds the 8A module total, you are overloading the internal power distribution. Also, check individual loads; a shorted load or one drawing sustained current above 2A will overheat that specific relay and the module. Ensure adequate cabinet ventilation, as ambient temperatures near the 60°C maximum limit will exacerbate any internal heating .
Commercial Availability & Pricing
Market research indicates reference prices for the GE IC693MAR590 range from approximately USD 666 to 2,625 for a single unit, with significant variance based on supplier, claimed condition (new surplus vs. refurbished), and included warranty .Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
