Description
System Architecture & Operational Principle

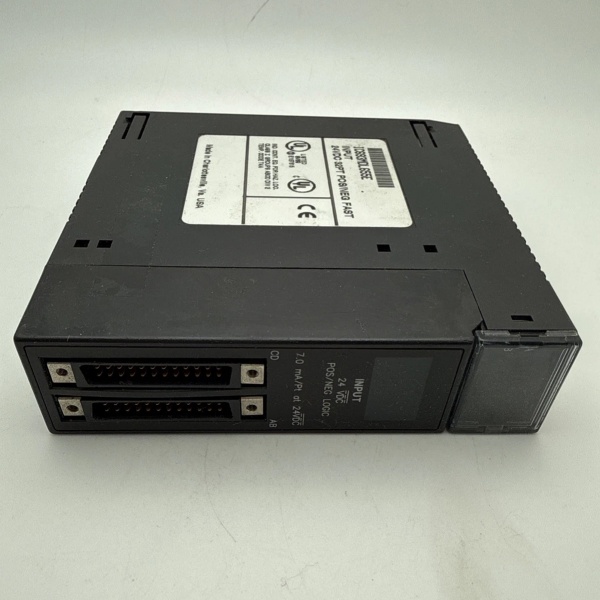

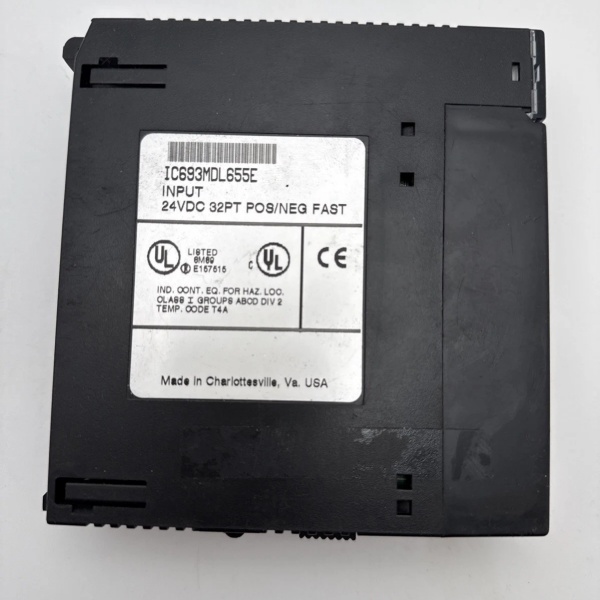

The GE IC693MDL655E is a 32-channel 24VDC discrete input module within the GE Fanuc Series 90-30 PLC family, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a Series 90-30 CPU baseplate) and serves as the bridge between field devices (e.g., proximity sensors, pushbuttons, level switches) and higher-level controllers (e.g., GE 90-30 PLCs).
Upstream Communication
Receives digital signals (24VDC) from field devices via screw terminals or pre-wired cables (e.g., IC693CBL327/328). The module supports positive/negative logic (selectable via jumpers), allowing it to adapt to diverse field device configurations.
Downstream Communication
Transmits processed data to the controller via the Series 90-30 backplane. The module uses opto-couplers for backplane isolation, preventing ground loops and protecting sensitive electronics from voltage spikes.
Operational Advantages
-
High Density: 32 input points in a compact form factor (128 x 55 x 105 mm) save space in control cabinets, ideal for applications with limited real estate (e.g., manufacturing lines, process control skids).
-
Flexible Logic: Supports both positive and negative logic, eliminating the need for additional signal conditioning for different field devices.
-
Rugged Design: Wide operating temperature range (-40°C to +85°C) and IP20 enclosure rating make it suitable for harsh industrial environments (e.g., power plants, chemical refineries).
IC693MDL655E
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
32-Channel 24VDC Discrete Input Module
|
|
Part Number
|
IC693MDL655E
|
|
Number of Inputs
|
32 (divided into 4 groups of 8)
|
|
Input Voltage
|
24VDC nominal (0–30VDC range)
|
|
Input Current
|
7 mA per channel (typical)
|
|
Logic Type
|
Positive/Negative (selectable via jumpers)
|
|
Isolation
|
1500V RMS (field-to-logic); 250V RMS (group-to-group)
|
|
Response Time
|
<7 ms (on/off)
|
|
Power Consumption
|
90 mA from 5VDC backplane
|
|
Operating Temperature
|
0°C to +60°C (32°F to 140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~128 mm × 55 mm × 105 mm (5.0 in × 2.2 in × 4.1 in) (approximate)
|
|
Weight
|
~0.28 kg (0.62 lbs)
|
|
Certifications
|
UL, CSA, CE (compliant with EU/US/Canadian standards)
|
Customer Value & Operational Benefits
Enhanced System Flexibility
The IC693MDL655E’s 32 input points and flexible logic allow it to integrate multiple field devices into a single module, reducing the number of components needed in the control cabinet. This flexibility is critical for applications like assembly lines or process control, where multiple sensors need to be monitored simultaneously.
Reduced Maintenance Costs
The module’s hot-swap design (when used with compatible baseplates) allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC693MDL655E cut maintenance downtime by 40% compared to traditional non-hot-swappable input modules.
Cost-Effective Integration
Compatible with GE’s Series 90-30 PLCs and third-party controllers (e.g., Siemens S7-1200), the IC693MDL655E eliminates the need for custom interfaces. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing PLC infrastructure.
Field Engineer’s Notes (From the Trenches)
When installing the IC693MDL655E, always use pre-wired cables (e.g., IC693CBL327) for reliable connections—loose wires can cause intermittent signal loss. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in sensor data. Switching to pre-wired cables eliminated the problem immediately.Another gotcha: verify the logic type—the module defaults to positive logic, but if you’re using negative logic devices, you must adjust the jumpers. I’ve fixed countless “no signal” errors by forgetting to switch the logic type.If the module’s “FAULT” LED illuminates, check the input voltage—the module requires a stable 24VDC supply. I’ve seen cases where a faulty power supply (outputting 18VDC) caused the module to enter a fault state. Use a multimeter to test the input voltage before replacing the module.IC693MDL655E
Real-World Applications
-
Manufacturing Lines:An automotive manufacturing plant uses the IC693MDL655E to monitor 32 proximity sensors on an assembly line. The module’s fast response time (<7 ms) allows the PLC to adjust the line speed based on sensor inputs, reducing product defects by 20%.
-
Chemical Processing:A chemical plant uses the IC693MDL655E to monitor 16 level switches and 16 pressure sensors in a reactor. The module’s 1500V isolation prevents ground loops from damaging the PLC, ensuring reliable operation of the chemical process.
-
Power Generation:A power plant uses the IC693MDL655E to monitor 32 temperature sensors in a turbine. The module’s wide operating temperature range (-40°C to +85°C) ensures reliable operation in the plant’s hot and humid environment.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE IC693MDL655E?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Failure: The input voltage is outside the 0–30VDC range (check with a multimeter);
-
Overload: A channel is drawing too much current (check the field device’s output);
-
Module Fault: The internal opto-coupler or circuitry is faulty (replace the module).
Q: Can the IC693MDL655E be used with non-GE controllers?
A: Yes, the module’s 24VDC input is compatible with most controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to adjust the wiring (e.g., terminal blocks) to match the controller’s requirements.
Q: How do I configure the logic type (positive/negative) on the IC693MDL655E?
A: Use the jumpers on the module’s front panel to select the logic type:
-
Positive Logic: Jumper set to “POS”;
-
Negative Logic: Jumper set to “NEG”.
Q: Why is the IC693MDL655E’s signal unstable?
A: Check three things first:
-
Power Supply: Ensure the 24VDC power supply is stable (use a multimeter to test);
-
Cables: Verify the pre-wired cables are not damaged (check for cuts or breaks);
-
Field Device: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
