Description
System Architecture & Operational Principle

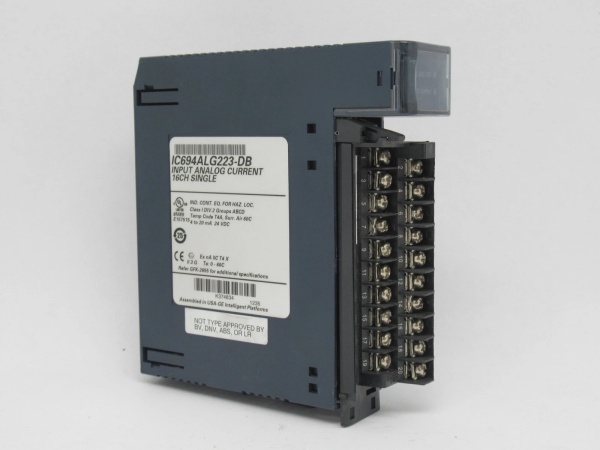

The GE IC694ALG223 is a 16-channel analog current input module within the GE Fanuc PACSystems RX3i series, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a RX3i CPU baseplate) and serves as the bridge between field devices (e.g., pressure transmitters, temperature sensors, level switches) and higher-level controllers (e.g., GE RX3i PLCs).
Upstream Signal Reception
Receives analog current signals (0–20 mA or 4–20 mA) from field devices via single-ended wiring (screw terminals or pre-wired cables). These signals represent process variables (e.g., pressure, temperature, flow) from the field.
Downstream Communication
Converts analog signals to digital data using a 12-bit analog-to-digital converter (ADC). The data is transmitted to the controller via the RX3i backplane for processing (e.g., PID loops, alarm generation).
Operational Advantages
-
High Density: 16 input channels in a compact form factor save space in control cabinets, ideal for applications with limited real estate (e.g., manufacturing lines, process control skids).
-
Flexible Configuration: Supports multiple current input ranges (0–20 mA, 4–20 mA standard/enhanced) to adapt to diverse field devices.
-
Rugged Design: Wide operating temperature range (-40°C to +70°C) and IP20 enclosure rating make it suitable for harsh industrial environments (e.g., power plants, chemical refineries).
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
16-Channel Analog Current Input Module
|
|
Part Number
|
IC694ALG223
|
|
Number of Channels
|
16 (single-ended)
|
|
Input Signal Range
|
0–20 mA / 4–20 mA (configurable per channel)
|
|
Resolution
|
12-bit (4 µA/count for 4–20 mA; 5 µA/count for 0–20 mA)
|
|
Conversion Rate
|
13 ms per channel (max)
|
|
Input Impedance
|
250 Ω (current input)
|
|
Isolation
|
1500V AC (channel-to-backplane); 250V AC continuous (channel-to-ground)
|
|
Power Supply
|
5V DC from RX3i backplane (120 mA max); 24V DC external (65 mA max)
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~115 mm × 100 mm × 25 mm (4.5 in × 3.9 in × 1.0 in) (approximate)
|
|
Weight
|
~0.3 kg (0.66 lbs)
|
|
Certifications
|
CE, UL, CSA (compliant with EU/US/Canadian standards)
|

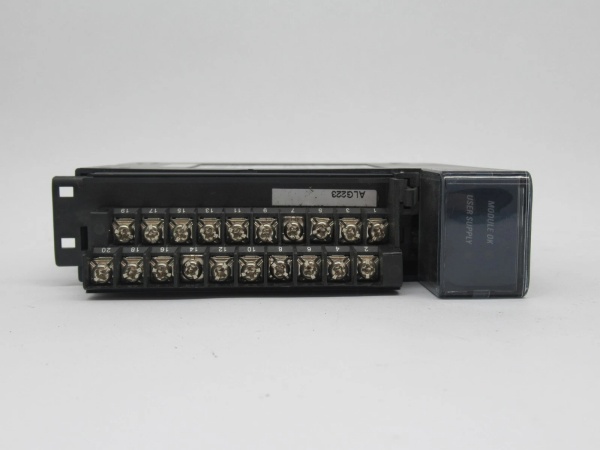

IC694ALG223
Customer Value & Operational Benefits
Enhanced Process Control Precision
The IC694ALG223’s 12-bit resolution and fast conversion rate (13 ms) enable real-time monitoring of process variables, reducing variability and improving product quality. For example, a chemical plant using the module reported a 25% reduction in batch-to-batch variation by improving reactor temperature control.
Reduced Maintenance Costs
The module’s hot-swap design (when used with compatible baseplates) allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC694ALG223 cut maintenance downtime by 40% compared to traditional non-hot-swappable analog input modules.
Cost-Effective Integration
Compatible with GE’s RX3i PACSystem and third-party controllers (e.g., Siemens S7-1200), the IC694ALG223 eliminates the need for custom interfaces. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing PLC infrastructure.
Field Engineer’s Notes (From the Trenches)
When installing the IC694ALG223, always use shielded twisted-pair (STP) cables for analog inputs—unshielded cables can pick up electromagnetic interference (EMI) from nearby motors or power lines, leading to signal distortion. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in pressure measurements. Switching to STP cables eliminated the problem immediately.Another gotcha: verify the input range configuration—the module defaults to 4–20 mA, but if you need to use 0–20 mA, you must adjust the jumper on the carrier terminal. I’ve fixed countless “signal out of range” errors by forgetting to modify the jumper setting.If the module’s “FAULT” LED illuminates, check the external power supply—the module requires a stable 24V DC external supply. I’ve seen cases where a faulty power supply (outputting 18V DC) caused the module to enter a fault state. Use a multimeter to test the external power supply voltage before replacing the module.
Real-World Applications
-
Chemical Manufacturing:A chemical plant uses the IC694ALG223 to monitor the temperature of its reactor. The module receives 4–20 mA signals from a temperature transmitter and transmits digital data to a GE RX3i PLC, which adjusts the flow of cooling water to maintain the reactor temperature within ±1°C.
-
Power Generation:A power plant uses the IC694ALG223 to monitor the pressure of its boiler feedwater pump. The module’s single-ended wiring minimizes signal loss, ensuring accurate pressure measurements. The PLC uses this data to adjust the pump’s speed, improving energy efficiency by 10%.
-
Water Treatment:A water treatment plant uses the IC694ALG223 to monitor the pH of its effluent. The module receives 0–20 mA signals from a pH sensor and transmits data to a SCADA system, which triggers an alarm if the pH exceeds regulatory limits.

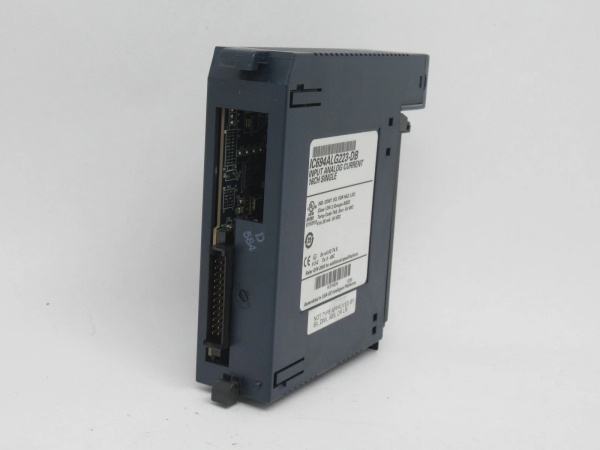

IC694ALG223
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE IC694ALG223?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Failure: The external 24V DC supply is missing or unstable (check with a multimeter);
-
Open Circuit: A field device (e.g., sensor) is disconnected or the wiring is faulty (use a multimeter to test the current signal);
-
Module Fault: The internal ADC or power supply is faulty (replace the module).
Q: Can the IC694ALG223 be used with non-GE controllers?
A: Yes, the module’s digital output is compatible with most controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to configure the controller’s input module to match the IC694ALG223’s signal type (e.g., 4–20 mA).
Q: How do I configure the input range on the IC694ALG223?
A: Use GE’s Proficy Machine Edition software to configure the input range:
-
Open Proficy Machine Edition: Launch the software and connect to the RX3i PLC;
-
Select the IC694ALG223: Navigate to the “I/O Configuration” tab and select the module;
-
Set Input Range: Choose “0–20 mA” or “4–20 mA” for each channel;
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the IC694ALG223’s signal unstable?
A: Check three things first:
-
Cables: Ensure the STP cables are not damaged (check for cuts or breaks);
-
Grounding: Verify the shield is grounded at the source device (or the I/O module if the source cannot be grounded);
-
Sensor: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
