Product Introduction

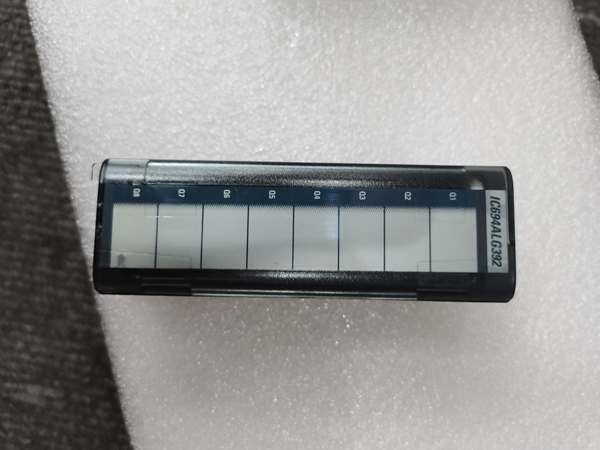

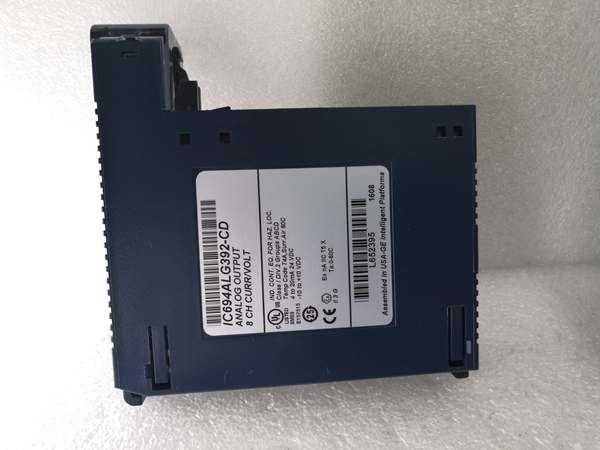

I’ve wired these to control everything from valve positioners to VFD speed references. The GE IC694ALG392-FG is essentially the same 8-channel analog output module as the standard IC694ALG392, just with a “-FG” suffix that typically indicates packaging or regional variations . Functionally, it’s identical: eight independent channels that can output either voltage signals (0-10V or ±10V) or current loops (0-20mA or 4-20mA) .Where this unit earns its keep is density—eight control outputs in one slot, which means fewer modules to manage in a crowded control cabinet. The 8 millisecond update rate for all channels means your control signals stay synchronized, which matters when you’re coordinating multiple actuators in a process line . The 250V AC isolation between field and backplane provides solid protection against ground loops and noise .

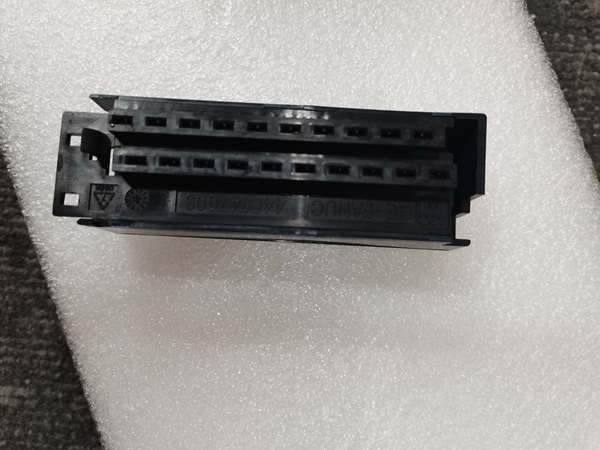

GE IC694ALG392
Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 8 single-ended |
| Voltage Output Ranges | 0-10 V DC, -10 to +10 V DC |
| Current Output Ranges | 0-20 mA, 4-20 mA |
| Resolution | 4-20 mA: 0.5 µA; 0-20 mA: 0.625 µA; Voltage: 0.3125 mV |
| Update Rate | 8 ms (all channels) |
| Accuracy @ 25°C | Current: ±0.1% FS; Voltage: ±0.25% FS |
| Maximum Accuracy Over Temperature | Current: ±0.5% FS; Voltage: ±1.0% FS |
| Backplane Power | 110 mA @ +5 VDC |
| External Power Supply | Required: +24 VDC (user-supplied), Range: 20 to 30 VDC |
| User Power Consumption | 315 mA @ +24 VDC |
| Isolation | 250V AC continuous (field to backplane) |
| Weight | 0.69 lbs (0.31 kg) |
Quality Control Process (SOP Transparency)
We test these “-FG” variants with the same rigor as the standard units—the suffix doesn’t change the testing protocol.
- Incoming Verification: Serial validation against Emerson’s database, visual inspection of all terminal blocks and backplane connector. We specifically check for any physical differences from the standard IC694ALG392—sometimes packaging variants have different labeling or minor cosmetic changes.
- Output Accuracy Test: Using calibrated Fluke 725 process calibrator as a measurement device, we configure each channel for all four output ranges: 0-10V, ±10V, 0-20mA, and 4-20mA. The test PLC program commands specific output values (0%, 25%, 50%, 75%, 100% of range) and we verify the actual output stays within ±0.1% (current) and ±0.25% (voltage) accuracy across all channels and ranges .
- Load Testing: We apply representative loads to each channel: 500Ω resistors for current outputs, 5mA loads for voltage outputs. We verify the module maintains specified accuracy under load—some output drivers sag under load if components are marginal.
- Isolation Verification: We apply 250V AC between field terminals and backplane to verify the specified isolation rating . This is critical for safety in industrial environments where ground faults are common.
- Final QC & Packaging: Inspector signs off, all terminal screws are torqued to spec, the module is sealed in an anti-static bag with desiccant, and packed in custom foam. The QC label shows test date, pass/fail status for each channel and output type, and notes “FG variant verified.”

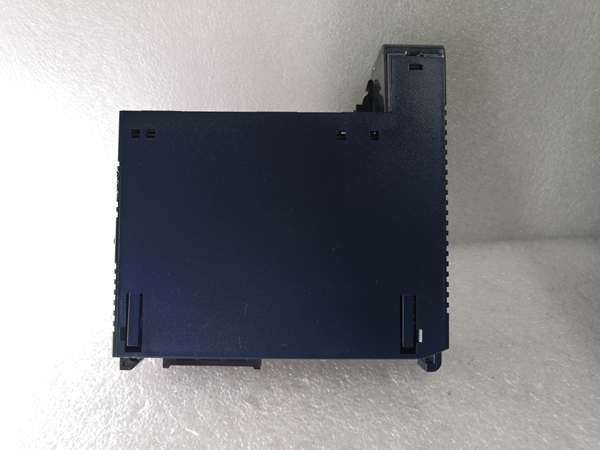

GE IC694ALG392
Replacement Pitfall Guide (Field Engineer’s Warnings)
The “-FG” suffix adds a layer of procurement complexity—here’s what to watch for.
- ❗ Verify Physical Compatibility: While functionally identical to IC694ALG392, some “-FG” variants might have slightly different physical dimensions or connector placements. Measure your existing panel cutout before ordering—I’ve seen cases where variant versions had different mounting hole patterns.
- ❗ Certification Differences: The “-FG” suffix might indicate specific certification requirements for certain regions or industries. Verify that the certifications listed on the module (UL, CE, ATEX, CSA) match your plant’s requirements. Don’t assume all variants have identical certifications.
- ❗ Firmware Recognition Might Vary: Some older PLC firmware might not recognize the “-FG” suffix in the module identification string. The module will still work, but you might get an “unknown module type” warning. Update your controller firmware if possible, or verify with Emerson’s compatibility matrix.
- ❗ External 24VDC Supply is Still Mandatory: Like the standard version, this module requires an external, isolated 24VDC supply via the field power connector . The 315mA draw is significant—undersize your supply and all eight channels will exhibit erratic behavior.
- ❗ Load Impedance Limits are Real: Voltage outputs max at 5mA load current. Current outputs max at 500Ω load resistance. Exceed these and the output won’t regulate properly—your control signal becomes unreliable. Calculate your field device impedance before wiring.
Keep these five points in mind and you’ll eliminate roughly 90% of rework.
