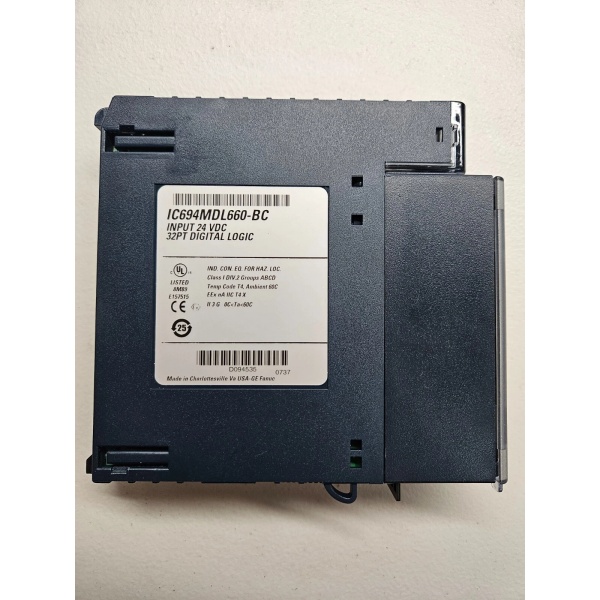

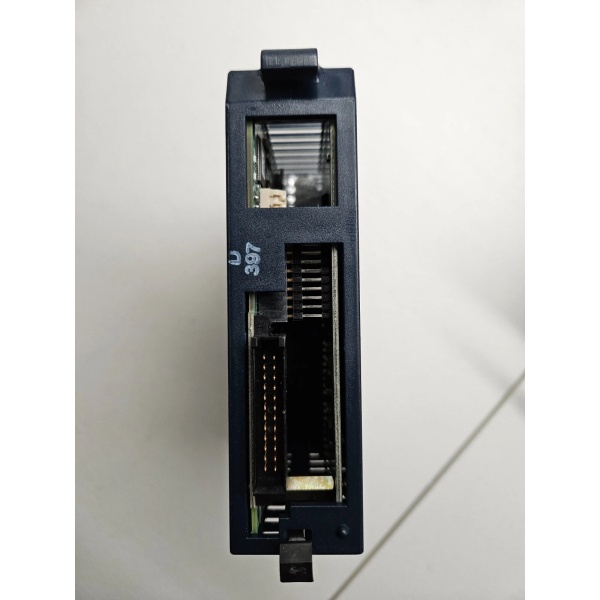

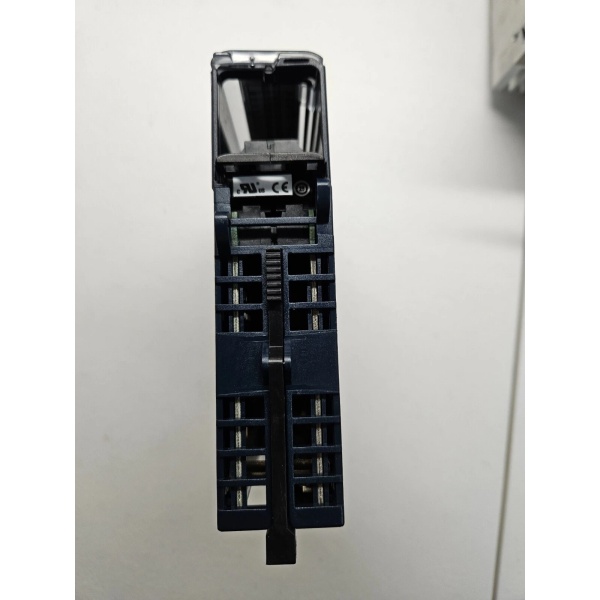

IC694MDL660: Product Overview
The GE IC694MDL660 is a 32-point discrete digital input module from GE’s RX3i PACSystem series, a legacy platform renowned for its reliability in industrial automation. As part of the RX3i ecosystem, it acts as a “field signal interface” between industrial devices (e.g., limit switches, proximity sensors, pushbuttons) and the PLC controller, enabling real-time monitoring of process states—critical for maintaining operational stability and efficiency.
Role in Automation Systems:
Positioned as a “discrete input interface” in RX3i architectures, the IC694MDL660 performs two primary functions:
-
Signal Acquisition: Receives 24V DC digital signals from field devices (e.g., a switch indicating a valve is open) and converts them into a format suitable for the PLC controller.
-
Signal Transmission: Sends processed digital signals to the PLC controller for real-time analysis (e.g., triggering an alarm if a safety switch is activated) and stores historical data for trend analysis.
Core Functionality:
-
Isolated Inputs: Each channel features 1500V AC galvanic isolation, protecting the PLC controller from voltage spikes and electromagnetic interference (EMI) in harsh industrial environments.
-
High Precision: Fast response time (<10ms) ensures accurate signal detection, even for high-speed processes (e.g., conveyor belt positioning).
-
Modular Design: Fits into standard RX3i I/O racks, enabling easy expansion or replacement. The hot-swappable design minimizes downtime during maintenance.
-
Diagnostic LEDs: Each channel has a green LED to indicate signal status (ON/OFF), simplifying troubleshooting and reducing downtime.
Platform Benefits (RX3i Series):
The IC694MDL660 inherits the RX3i platform’s strengths, including:
-
Reliability: The RX3i system is the industry standard for industrial automation, with a proven track record of 24/7 operation in power plants, refineries, and manufacturing facilities worldwide.
-
Legacy Compatibility: The module is designed to work with existing RX3i components (e.g., I/O racks, controllers), reducing the cost of system upgrades.
-
Scalability: Supports expansion with additional I/O modules (e.g., analog inputs, digital outputs) to accommodate growing system demands.
IC694MDL660
Technical Specifications
-
Model Number: IC694MDL660 (Variant of RX3i Series)
-
Manufacturer: GE (General Electric)
-
Product Type: Discrete Digital Input Module
-
Series: RX3i PACSystem (Industrial Automation)
-
Input Channels: 32 points (isolated, 24V DC)
-
Input Voltage Range: 18–30V DC (nominal 24V DC)
-
Input Current: ≤7mA per channel (max)
-
Response Time: <10ms (typical)
-
Isolation: 1500V AC (channel-to-channel, channel-to-logic)
-
Bus Standard: RX3i I/O slots (supports A24/A32 addressing, D32/D16/D8 data transfer)
-
Operating Temperature: 0°C to +60°C (industrial-grade)
-
Storage Temperature: -40°C to +85°C
-
Humidity: 5–95% non-condensing
-
Weight: ~0.3 kg (0.66 lbs)
-
Certifications: CE, UL (inferred from GE industrial product standards)
Core Features & Customer Value
1. Reliable Signal Acquisition:
The IC694MDL660’s isolated inputs and fast response time ensure accurate detection of field device signals, even in electrically noisy environments. For example, in a power plant, the module can reliably detect a turbine emergency stop switch activation and transmit the signal to the PLC controller, which triggers an immediate shutdown to prevent damage.
2. Flexible Configuration:
The 32-point design allows engineers to customize the module’s functionality for different applications. For instance, in a manufacturing plant, the module can monitor multiple limit switches on a conveyor belt, enabling precise control of the production process.
3. Rugged Industrial Design:
The module’s operating temperature range (0°C to +60°C) and compact form factor make it suitable for harsh industrial environments. Its DIN rail mounting option simplifies installation in crowded control cabinets, reducing setup time and effort.
4. Easy Troubleshooting:
The diagnostic LEDs (green for signal status) provide instant visual feedback, slashing troubleshooting time. For example, if a sensor fails, the corresponding LED will turn off, allowing technicians to identify the problem quickly.
IC694MDL660
Typical Applications
The GE IC694MDL660 is widely used in industrial automation systems for:
-
Power Generation:
-
Monitors digital signals from gas/steam turbines (e.g., valve position switches, emergency stop buttons) for real-time control.
-
-
Manufacturing:
-
Used in assembly lines to monitor limit switches, proximity sensors, and pushbuttons, enabling precise control of manufacturing processes.
-
-
Petrochemical Industry:
-
Controls digital signals from refinery equipment (e.g., pump start/stop commands, valve positions), ensuring safe and efficient operation in hazardous environments.
-
-
Water Treatment:
-
Monitors digital signals from water treatment plants (e.g., pump status, valve positions), maintaining proper flow and quality.
-
