Description
System Architecture & Operational Principle
The GE IC695ALG508 is an 8-channel isolated RTD input module within the GE Fanuc PACSystems RX3i series, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on an RX3i universal backplane) and serves as the bridge between RTD sensors (e.g., temperature probes in reactors, pipes) and higher-level controllers (e.g., GE RX3i PLCs, ABB AC 800M DCS).
Upstream Signal Reception
Receives resistance signals from RTD sensors (e.g., Pt100, Pt1000) via 2-wire, 3-wire, or 4-wire connections. These signals represent temperature variations in the process (e.g., reactor temperature, pipe fluid temperature).
Downstream Communication
Converts resistance signals to digital temperature data using a 16-bit analog-to-digital converter (ADC). The data is transmitted to the controller via the RX3i backplane for processing (e.g., PID loops, alarm generation).
Operational Advantages
-
High Precision: 16-bit resolution ensures accurate temperature measurement (±0.15% accuracy), critical for applications requiring tight process control (e.g., pharmaceutical manufacturing).
-
Flexible Sensor Support: Compatible with multiple RTD types (Pt100, Pt1000, Ni120, Cu10) and wiring configurations (2-wire, 3-wire, 4-wire), allowing seamless integration with existing sensors.
-
Hot-Swap Capability: Allows technicians to replace the module without shutting down the system, minimizing downtime during maintenance.

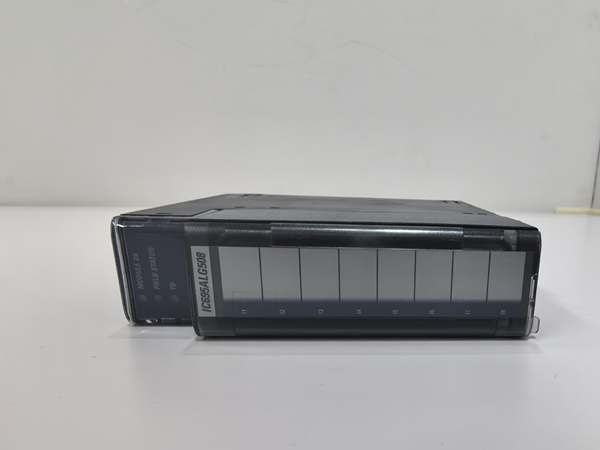

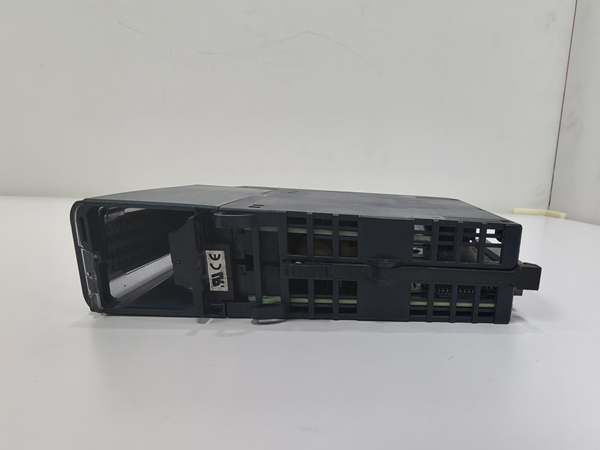

GE IC695ALG508
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
8-Channel Isolated RTD Input Module
|
|
Part Number
|
IC695ALG508
|
|
Number of Channels
|
8 (differential, isolated)
|
|
RTD Types Supported
|
Pt100, Pt1000, Ni120, Cu10 (automatic sensor type detection)
|
|
Wiring Configurations
|
2-wire, 3-wire, 4-wire
|
|
Resolution
|
16-bit (0.0015% of full scale)
|
|
Temperature Range
|
-200°C to +850°C (-328°F to +1562°F)
|
|
Accuracy
|
±0.15% of reading (temperature mode); ±0.1% of full scale (resistance mode)
|
|
Update Rate
|
100ms per channel (max)
|
|
Input Impedance
|
>10 MΩ
|
|
Isolation
|
250V AC continuous (channel-to-backplane); 1500V AC for 1 minute (channel-to-ground)
|
|
Power Supply
|
24V DC (via RX3i backplane; 2.5W typical consumption)
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~115 mm × 100 mm × 25 mm (4.5 in × 3.9 in × 1.0 in) (approximate)
|
|
Weight
|
~0.3 kg (0.66 lbs)
|
|
Certifications
|
CE, UL, CSA (compliant with EU/US/Canadian standards)
|
Customer Value & Operational Benefits
Enhanced Process Control Precision
The IC695ALG508’s 16-bit resolution and fast update rate (100ms) enable real-time temperature monitoring, reducing process variability and improving product quality. For example, a chemical plant using the module reported a 25% reduction in batch-to-batch variation by improving reactor temperature control.
Reduced Maintenance Costs
The module’s hot-swap design allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC695ALG508 cut maintenance downtime by 40% compared to traditional non-hot-swappable RTD input modules.
Cost-Effective Integration
Compatible with GE’s RX3i PACSystem and third-party controllers (e.g., Siemens S7-1200), the IC695ALG508 eliminates the need for custom interfaces. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing PLC infrastructure.

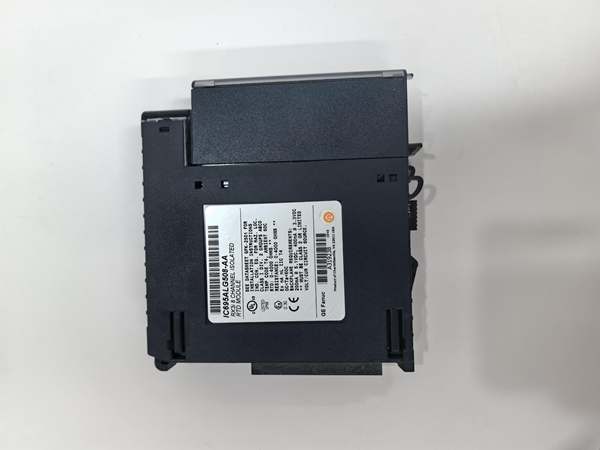

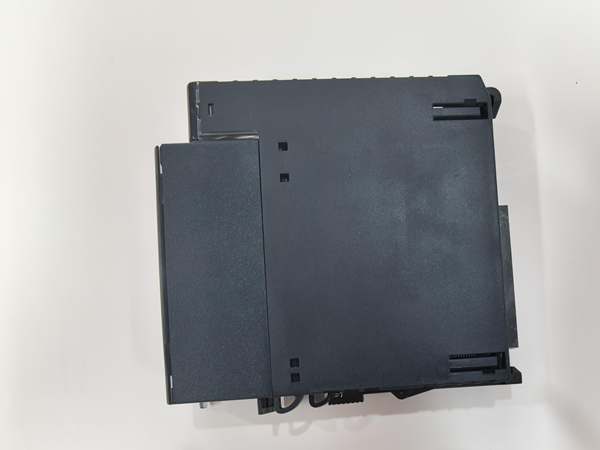

GE IC695ALG508
Field Engineer’s Notes (From the Trenches)
When installing the IC695ALG508, always use shielded twisted-pair (STP) cables for RTD connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby motors or power lines, leading to signal distortion. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in temperature measurements. Switching to STP cables eliminated the problem immediately.Another gotcha: verify the RTD sensor type—the module supports Pt100, Pt1000, Ni120, and Cu10 sensors. If you use a non-supported sensor (e.g., thermocouple), the module will report incorrect temperatures. Use a multimeter to test the sensor’s resistance (e.g., 100 ohms for Pt100 at 0°C) and confirm it matches the module’s configuration.If the module’s “FAULT” LED illuminates, check the sensor wiring—the module will report an open circuit fault if a sensor is disconnected or the wiring is faulty. Use a multimeter to test the resistance between the sensor’s leads (e.g., 100 ohms for Pt100) and verify it matches the expected value.
Real-World Applications
-
Chemical Manufacturing:A chemical plant uses the IC695ALG508 to monitor the temperature of its reactor. The module receives resistance signals from a Pt100 sensor and transmits digital data to a GE RX3i PLC, which adjusts the flow of cooling water to maintain the reactor temperature within ±1°C.
-
Pharmaceutical Production:A pharmaceutical plant uses the IC695ALG508 to monitor the temperature of its fermentation tanks. The module’s high precision (±0.15% accuracy) ensures that the fermentation process stays within strict temperature limits, complying with FDA regulations.
-
Power Generation:A power plant uses the IC695ALG508 to monitor the temperature of its boiler feedwater pump. The module’s 4-wire RTD connections minimize lead resistance errors, ensuring accurate temperature measurements for pump health monitoring.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE IC695ALG508?
A: The red “FAULT” LED indicates a critical error, such as:
-
Open Circuit: An RTD sensor is disconnected or the wiring is faulty (check the sensor’s resistance with a multimeter);
-
Power Supply Issue: The RX3i backplane is not supplying 24V DC (use a multimeter to test the backplane voltage);
-
Sensor Type Mismatch: The module is configured for a different RTD type than the sensor (verify the sensor type in the PLC software).
Q: Can the IC695ALG508 be used with non-GE controllers?
A: Yes, the module’s digital output is compatible with most controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to configure the controller’s input module to match the IC695ALG508’s signal type (e.g., 4–20 mA).
Q: How do I configure the RTD type on the IC695ALG508?
A: Use GE’s Proficy Machine Edition software to configure the RTD type:
-
Open Proficy Machine Edition: Launch the software and connect to the RX3i PLC;
-
Select the IC695ALG508: Navigate to the “I/O Configuration” tab and select the module;
-
Set RTD Type: Choose the correct RTD type (e.g., Pt100) for each channel;
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the IC695ALG508’s temperature reading unstable?
A: Check three things first:
-
Cables: Ensure the STP cables are not damaged (check for cuts or breaks);
-
Grounding: Verify the shield is grounded at the source device (or the I/O module if the source cannot be grounded);
-
Sensor: Ensure the RTD sensor is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
