Description
System Architecture & Operational Principle
The GE IC695PSD040 is a 40W DC power supply module within the GE PACSystems RX3i Series, designed for Level 1 (Control) of the Purdue Model in industrial automation. It resides in the RX3i universal backplane (occupying 1 slot) and serves as the bridge between external DC power sources (e.g., 24V DC power supplies, batteries) and RX3i system components (CPU, I/O modules, communication modules).
Upstream Communication
Receives 24V DC power from external sources (e.g., plant-wide DC power distribution systems, UPS). The input voltage range (18-30V DC for startup, 12-30V DC for runtime) ensures compatibility with various industrial power supplies.
Downstream Communication
Converts the input DC power to stable 5.1V, 3.3V, and 24V DC outputs for RX3i components. The 5.1V and 3.3V outputs power the CPU and logic circuits, while the 24V DC output supports I/O modules and communication interfaces. The module uses switching power supply technology to minimize energy loss and heat generation.
Operational Advantages
-
High Efficiency: Switching power supply design reduces energy consumption by 20-30% compared to linear power supplies.
-
Multiple Outputs: Provides 5.1V, 3.3V, and 24V DC outputs in a single module, eliminating the need for multiple power supplies.
-
Compact Design: Occupies only 1 slot in the RX3i backplane, saving cabinet space.

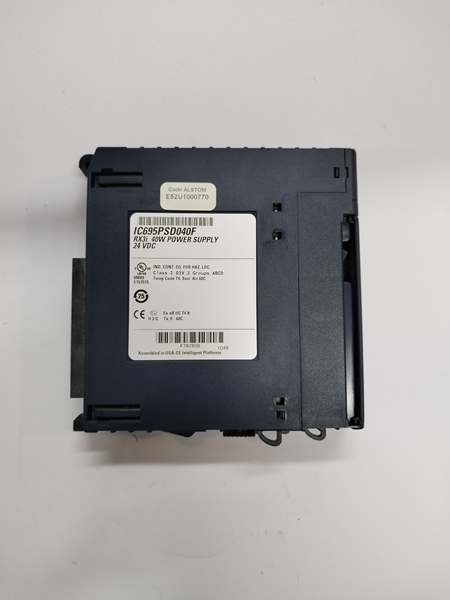

IC695PSD040
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Input Voltage
|
24V DC (18-30V DC start mode; 12-30V DC run mode)
|
|
Output Voltage
|
5.1V DC (max 6A), 3.3V DC (max 9A), 24V DC (max 1A)
|
|
Output Power
|
40W (max)
|
|
Input Power
|
60W (max)
|
|
Efficiency
|
≥85% (typical)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity Tolerance
|
5-95% non-condensing
|
|
Dimensions (W×H×D)
|
~100 mm × 30 mm × 150 mm (3.94 in × 1.18 in × 5.91 in) (estimated)
|
|
Weight
|
~0.5 kg (1.1 lbs)
|
|
Certifications
|
CE, UL, CSA, ATEX (Ex nA IIC T4)
|
Customer Value & Operational Benefits
Stable Power Supply
The IC695PSD040’s switching power supply technology ensures stable output voltage even with input voltage fluctuations (e.g., 18V DC to 30V DC). This stability is critical for RX3i components, as voltage variations can cause logic errors or component damage.
Cost Savings
The module’s high efficiency (≥85%) reduces energy consumption, leading to lower electricity bills. Additionally, its compact design saves cabinet space, reducing the need for larger control cabinets.
Easy Integration
Designed specifically for RX3i systems, the IC695PSD040 plugs directly into the universal backplane. No additional wiring or configuration is required, minimizing installation time.
Reliability
The module’s wide operating temperature range (-20°C to +70°C) makes it suitable for harsh industrial environments (e.g., factories, power plants). Its built-in overcurrent and overvoltage protection prevents damage from power surges.

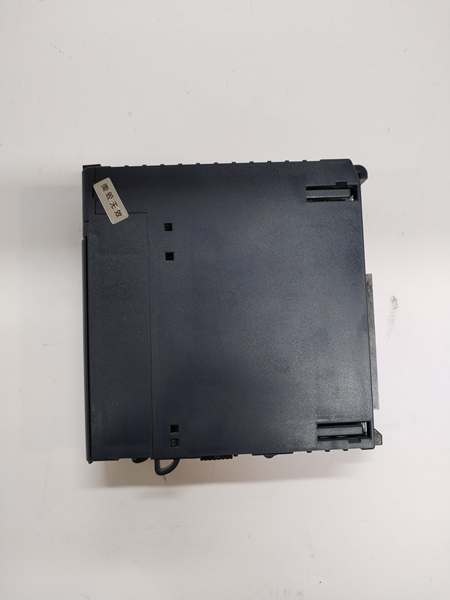

IC695PSD040
Field Engineer’s Notes (From the Trenches)
When installing the IC695PSD040, always use shielded DC cables (12-24 AWG) to connect to the external power source. I once saw a site where unshielded cables caused EMI interference, leading to intermittent power loss. Shielded cables eliminate this problem.Another gotcha: check the input voltage with a multimeter before powering up. If the input voltage is outside the 18-30V DC range (start mode), the module will not start. I’ve fixed countless “no power” faults by correcting the input voltage.If the module’s “P/S Fault” LED is red, check the output voltage with a multimeter. If the output voltage is below 5.1V DC or 3.3V DC, the module may be faulty. Replace the module if the output voltage is out of specification.
Real-World Applications
-
Automotive Manufacturing: Robotic Welding CellsAn automotive assembly plant uses the IC695PSD040 to power RX3i CPUs and I/O modules controlling robotic welding cells. The module’s stable 24V DC output ensures the robots operate accurately, reducing welding defects.
-
Power Generation: Turbine ControlA power plant uses the IC695PSD040 to power RX3i communication modules that monitor turbine performance. The module’s wide operating temperature range (-20°C to +70°C) withstands the hot environment near the turbine, ensuring reliable communication.
High-Frequency Troubleshooting FAQ

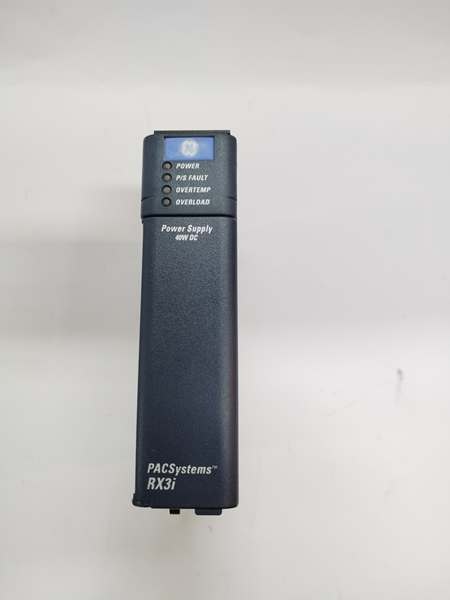

Q: What does the “P/S Fault” LED indicate on the IC695PSD040?
A: The red “P/S Fault” LED indicates a power supply fault, such as:
-
Overcurrent: The output current exceeds the module’s rating (e.g., 6A for 5.1V DC).
-
Overvoltage: The input voltage exceeds 30V DC (run mode).
-
Module Failure: The power supply circuitry is faulty.Check the input voltage and output load first. If the input voltage is within range and the load is not excessive, replace the module.
Q: Can the IC695PSD040 be used with non-RX3i systems?
A: No, the IC695PSD040 is designed exclusively for GE PACSystems RX3i Series. It relies on the RX3i backplane for mounting and power distribution, so using it with non-RX3i systems will result in compatibility issues.
Q: How do I replace the IC695PSD040?
A: Follow these steps:
-
Power Down: Turn off the external DC power supply.
-
Remove Old Module: Unscrew the module from the RX3i backplane (use a Phillips screwdriver).
-
Install New Module: Secure the new IC695PSD040 to the backplane and tighten the screws.
-
Power Up: Turn on the external DC power supply and verify the module’s operation (check the “Power” LED).
Q: Why is the IC695PSD040 overheating?
A: Overheating is usually caused by:
-
Excessive Load: The total output current exceeds 40W (e.g., too many I/O modules).
-
Poor Ventilation: The control cabinet has inadequate airflow.
-
Faulty Fan: The module’s internal fan is not working (replace the fan if necessary).
