Product Overview

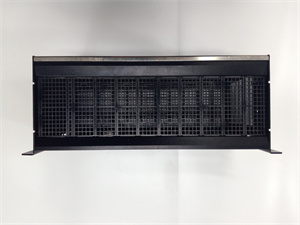

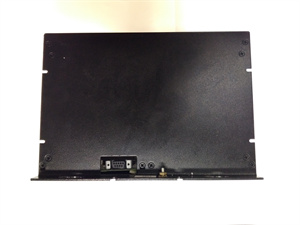

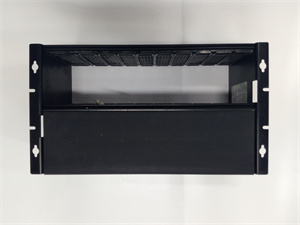

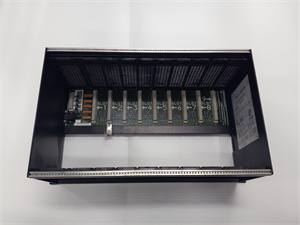

The GE IC697CHS790 is a 9 – slot, rear – mount PLC rack that belongs to the Series 90 – 70 programmable logic controller platform. Once under the umbrella of GE Fanuc, it is now part of Emerson Automation. This rack is a fundamental building block for industrial automation systems, providing a stable and organized framework for housing various components.
With nine slots dedicated to I/O and other modules, along with an additional slot for the power supply, the IC697CHS790 offers substantial flexibility. It allows for the integration of different types of modules, such as analog and digital I/O modules, communication modules, and CPU modules. This modular design enables industrial operators to customize their control systems according to specific application requirements. The rack measures 11.15 inches in height, 19 inches in width, and 7.5 inches in depth (283 mm x 483 mm x 190 mm), making it suitable for installation in standard industrial enclosures. It also supports extended I/O functionality, where two racks can be linked and share power supply modules, further enhancing the scalability of the overall system.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC697CHS790 |
| Manufacturer | GE (formerly, now Emerson Automation) |
| Product Type | PLC Rack |
| Series | 90 – 70 |
| Number of Slots | 9 I/O slots + 1 power supply slot |
| Dimensions | 11.15″ (H) x 19″ (W) x 7.5″ (D) (283 mm x 483 mm x 190 mm) |
| Mounting Type | Rear and front mounting |
| Supported Modules | All IC697 modules |
| Rack Extension | Supported (2 racks can share power) |
| Voltage for Modules | 5 volts DC (power provided through backplane) |
| Maximum 5V Current | 20 amps (for 100 – watt 120/240 VAC or 125 VDC power supply); 11 amps (for 55 – watt 120/240 VAC or 125 VDC power supply); 18 amps (for 90 – watt 24 VDC power supply); 18 amps (for 90 – watt 48 VDC power supply) |
| Power Supply Extension Cable | IC697CBL700 |
| Current Required from I/O Bus | 0.5 amps |
| I/O References | User – configurable without module jumpers or DIP switches |
| Enclosure Depth (for rear – mount) | 10 inches |
| Rack Identification | 4 jumpers behind rack power supply |
| VME System | Designed to support VME standard C.1 |
| Product Life Cycle | Discontinued |
IC697CHS790
Main Features and Advantages
Modular flexibility: The nine – slot configuration of the GE IC697CHS790 allows for a wide range of module combinations. This means that users can tailor the control system to their exact needs, whether it’s a simple setup with a few I/O modules or a complex system with multiple communication and specialized function modules. The ability to mix and match modules provides a high degree of customization, enhancing the adaptability of the industrial control system to different processes.
Scalability: With support for extended I/O, the IC697CHS790 enables the expansion of the control system. By being able to connect and power additional racks, industrial plants can start with a basic setup and gradually grow their control infrastructure as production requirements increase. This scalability not only saves costs in the initial stages but also future – proofs the system, ensuring it can keep up with evolving industrial needs.
User – friendly configuration: The I/O references on the IC697CHS790 can be configured by the user without the need for module – specific jumpers or DIP switches. This simplifies the setup process, reducing the time and expertise required for installation and re – configuration. Technicians can quickly and easily adjust the I/O settings according to changes in the industrial process, minimizing downtime during system modifications.
Reliable design: Built to withstand the rigors of industrial environments, the GE IC697CHS790 is designed with durability in mind. Its construction materials and engineering ensure that it can operate reliably in the presence of electrical noise, vibrations, and temperature fluctuations. The rack also features a mechanical interlock mechanism that prevents accidental or unauthorized module replacement, adding an extra layer of security and reliability to the system.
Scalability: With support for extended I/O, the IC697CHS790 enables the expansion of the control system. By being able to connect and power additional racks, industrial plants can start with a basic setup and gradually grow their control infrastructure as production requirements increase. This scalability not only saves costs in the initial stages but also future – proofs the system, ensuring it can keep up with evolving industrial needs.
User – friendly configuration: The I/O references on the IC697CHS790 can be configured by the user without the need for module – specific jumpers or DIP switches. This simplifies the setup process, reducing the time and expertise required for installation and re – configuration. Technicians can quickly and easily adjust the I/O settings according to changes in the industrial process, minimizing downtime during system modifications.
Reliable design: Built to withstand the rigors of industrial environments, the GE IC697CHS790 is designed with durability in mind. Its construction materials and engineering ensure that it can operate reliably in the presence of electrical noise, vibrations, and temperature fluctuations. The rack also features a mechanical interlock mechanism that prevents accidental or unauthorized module replacement, adding an extra layer of security and reliability to the system.
Application Field
Manufacturing industry: In manufacturing plants, the GE IC697CHS790 is used to build control systems for production lines. It can house the necessary I/O modules to interface with sensors and actuators on robotic arms, conveyor belts, and other manufacturing equipment. By providing a stable platform for these components, it ensures smooth and coordinated operation of the production line, leading to increased productivity and improved product quality.
Process control in industries like oil & gas and chemical: In these industries, precise control of processes is crucial. The IC697CHS790 can be used to create control systems that monitor and adjust parameters such as temperature, pressure, and flow rate. The modular design allows for the integration of specialized modules for handling analog signals from sensors in these process control applications, ensuring accurate and reliable control of the industrial processes.
Power generation: Power plants, whether they are fossil – fuel – based, nuclear, or renewable energy – powered, rely on reliable control systems. The GE IC697CHS790 can be part of the control infrastructure in power generation facilities. It can support modules for monitoring generator status, controlling turbine operations, and managing power distribution. The scalability of the rack is particularly useful in power plants, as they may need to expand or upgrade their control systems over time to meet changing power demands.
IC697CHS790
Related Products
- GE IC697CHS783: Also a part of the Series 90 – 70 PLC rack family. It may have a different number of slots or other physical and functional characteristics compared to the IC697CHS790. For example, it could have fewer slots, making it more suitable for smaller – scale industrial control applications where less expandability is required.
- GE IC695CHS001: Belonging to the GE PACSystems RX3i series, it has a different form factor and compatibility. It is designed for use in systems with different architectural requirements, perhaps with a focus on more compact installations or different types of communication protocols compared to the IC697CHS790 which is tailored for the Series 90 – 70 platform.
- GE IC693CHS390: From the Series 90 – 30 platform, this rack has its own set of features. It likely has a different power distribution system, slot configuration, and compatibility with a different range of modules. It is aimed at applications within the Series 90 – 30 ecosystem, which may have different performance and cost – effectiveness requirements compared to the Series 90 – 70 where the IC697CHS790 resides.
- GE IC697ACC721: This is a fan accessory compatible with the IC697CHS790. It is designed to be used when heat build – up is a concern in the rack. Specifically, it is powered by 120 VAC and helps in maintaining optimal operating temperatures for the modules installed in the IC697CHS790 rack, ensuring reliable performance in environments where heat dissipation is critical.
- GE IC697CBL700: A power supply extension cable for the IC697CHS790 when using rack extensions. It enables the proper connection and power transfer between multiple racks that are sharing a power supply module. This cable is essential for implementing the extended I/O functionality of the IC697CHS790 and ensuring stable power distribution across the expanded system.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC697CHS790, carefully measure the available space to ensure it can accommodate the rack’s dimensions of 11.15″ (H) x 19″ (W) x 7.5″ (D). Check the power source to confirm it meets the requirements for the power supply module that will be installed in the rack. Inspect the rack for any visible signs of damage during transit. Make sure to have all the necessary mounting hardware, such as screws and brackets, ready. Also, plan the layout of the modules to be installed in the rack in advance, taking into account their functionality and communication requirements.
Maintenance recommendations: Regularly check the connection of the modules in the IC697CHS790 to ensure they are firmly seated. Monitor the temperature of the rack, especially if it is installed in a high – heat environment. If a fan accessory like the IC697ACC721 is installed, verify that it is operating correctly. Check the status LEDs on the modules (if applicable) to identify any potential issues. Periodically clean the rack to remove dust and debris, as these can accumulate and affect the performance of the modules. In case of any problems, refer to the product manual for troubleshooting steps or contact Emerson Automation’s technical support for assistance.
Maintenance recommendations: Regularly check the connection of the modules in the IC697CHS790 to ensure they are firmly seated. Monitor the temperature of the rack, especially if it is installed in a high – heat environment. If a fan accessory like the IC697ACC721 is installed, verify that it is operating correctly. Check the status LEDs on the modules (if applicable) to identify any potential issues. Periodically clean the rack to remove dust and debris, as these can accumulate and affect the performance of the modules. In case of any problems, refer to the product manual for troubleshooting steps or contact Emerson Automation’s technical support for assistance.
Product Guarantee
Emerson Automation (formerly GE Fanuc for this product) stands behind the GE IC697CHS790 with a commitment to quality. Although the product is discontinued, for units that are still under a valid warranty at the time of purchase, Emerson provides support. This includes covering manufacturing defects and offering technical assistance. Their team of experts can help with installation guidance, troubleshooting, and providing advice on maintenance. Even though new units may no longer be in production, Emerson’s global network can assist in sourcing refurbished or pre – owned units in good condition. They strive to ensure that customers who rely on the IC697CHS790 can continue to use it with confidence in their industrial control systems, maintaining the integrity and reliability of their operations.
