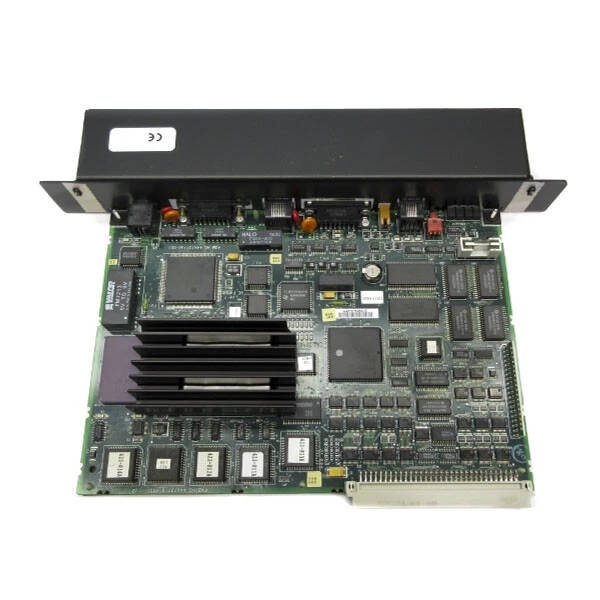

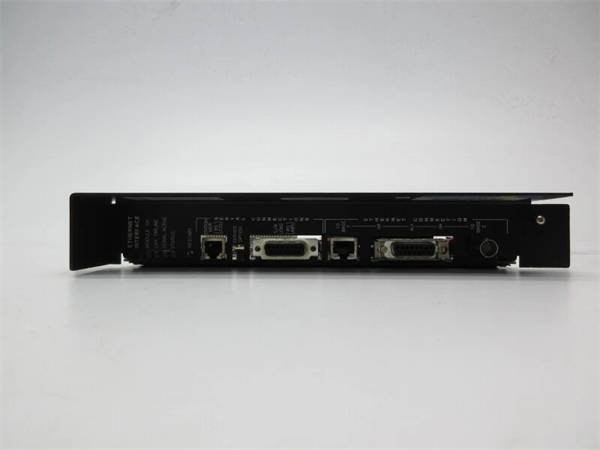

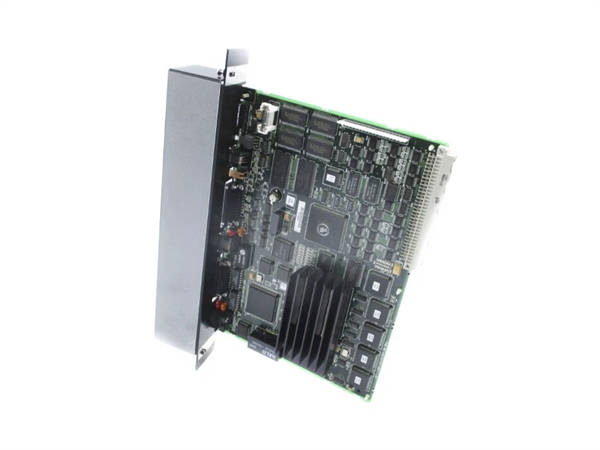

GE IC697CMM742-GH

Product Introduction

The GE IC697CMM742-GH is a high-performance multi-protocol communication module engineered for GE’s Series 90-70 PLC platform, serving as the “network gateway” for integrating distributed control systems with heterogeneous industrial networks. Unlike single-protocol modules (e.g., IC697CSE925 Ethernet module), it supports PROFINET, Ethernet/IP, and Modbus (TCP/RTU) simultaneously, enabling seamless interoperability between the IC697CPU781-HB CPU and diverse field devices—such as Siemens PROFINET I/O modules, Rockwell Ethernet/IP VFDs, and legacy Modbus sensors.

Equipped with dual gigabit Ethernet ports and a dedicated RS-485 interface, the IC697CMM742-GH resolves the “protocol island” problem in modern industrial facilities. When paired with the IC697CPU781-HB, it extends the CPU’s native communication capabilities (limited to Modbus TCP/RTU and basic Ethernet) to support high-speed industrial Ethernet protocols, critical for applications requiring sub-millisecond synchronization (e.g., multi-axis motion control) or cross-vendor system integration. Its rugged design matches the environmental resilience of the IC697CPU781-HB, making it ideal for harsh environments like oil refineries and automotive plants.

Synergy with IC697CPU781-HB

The IC697CMM742-GH operates as a “communication coprocessor” for the IC697CPU781-HB, offloading protocol processing tasks to avoid impacting the CPU’s control performance. Their integration follows a three-layer architecture:

1. Backplane Synchronization Layer

The module occupies any I/O slot (2-20) of the Series 90-70 rack, communicating with the IC697CPU781-HB via the 10 Mbps synchronous backplane.

Real-time data exchange (I/O signals, status flags) uses GE’s proprietary “Burst Transfer” technology, ensuring <1 ms latency between the module and CPU.

Configuration synchronization: Proficy Machine Edition pushes shared parameters (e.g., device addresses, data mapping) to both the CPU and module, eliminating manual consistency checks.

2. Protocol Processing Layer

The IC697CMM742-GH handles all protocol-specific tasks: PROFINET IO cycle management, Ethernet/IP implicit messaging, and Modbus RTU frame encoding/decoding.

The IC697CPU781-HB focuses on core control logic (e.g., PID regulation, ladder logic execution), with the module acting as a transparent data bridge.

Example: In a automotive welding line, the CPU executes robot coordination logic while the module synchronizes 16 PROFINET-enabled weld guns (200 μs cycle time) and collects data from 32 Modbus temperature sensors.

3. Redundancy Integration Layer

When the IC697CPU781-HB is configured for hot-standby redundancy (with IC697CSE925), the IC697CMM742-GH supports “dual-module redundancy”:

Primary/standby modules synchronize network state (e.g., PROFINET IO connections, Modbus master sessions) via a dedicated redundancy link.

Failover time < 50 ms, matching the CPU’s redundancy performance—critical for mission-critical applications like crude distillation units.

Core Advantages and Technical Highlights

1. Multi-Protocol Convergence

The module supports three industrial communication standards in a single device, reducing hardware costs by 40% compared to deploying separate PROFINET, Ethernet/IP, and Modbus modules. Key capabilities include:

PROFINET IO Controller: Manages up to 32 PROFINET devices with IRT (Isochronous Real-Time) support (cycle time down to 125 μs).

Ethernet/IP Scanner: Communicates with Rockwell Allen-Bradley devices (e.g., PowerFlex VFDs) via implicit messaging (32-byte input/output data per device).

Modbus Gateway: Converts Modbus RTU data to Modbus TCP for the CPU, eliminating the need for external protocol converters.

2. Gigabit Performance for High-Speed Applications

Dual gigabit Ethernet ports enable two critical use cases:

Network Segmentation: One port connects to the control network (PROFINET/Ethernet/IP devices), the other to the enterprise network (SCADA/MES systems)—enhancing cybersecurity via physical isolation.

Ring Topology: Support for STP/RSTP and PROFINET MRP (Media Redundancy Protocol) creates fault-tolerant networks. A single cable break triggers <50 ms recovery, ensuring uninterrupted communication for the IC697CPU781-HB.

3. Advanced Diagnostics for Predictive Maintenance

The module provides granular diagnostic data accessible via both Proficy Machine Edition and the IC697CPU781-HB’s fault logs:

Network Health: Port error rates, PROFINET IO latency, Ethernet/IP connection status.

Device Status: Individual PROFINET device heartbeat, Modbus RTU slave response times, voltage levels on the RS-485 bus.

Predictive Alerts: Early warnings for degrading connections (e.g., increasing CRC errors) or approaching device limits (e.g., PROFINET IO cycle time > threshold).

4. Cybersecurity Hardening

Built for industrial security standards (IEC 62443-4-2), the module includes:

Role-based access control (RBAC) for configuration changes.

Secure boot and firmware integrity verification (prevents tampering).

Encrypted communication (HTTPS for web management, TLS 1.3 for PROFINET).

Integration with the IC697CPU781-HB’s access control list (ACL) to restrict unauthorized network traffic.

Typical Application Scenarios

1. Cross-Vendor Automotive Assembly Plant

A plant using both Siemens (PROFINET) and Rockwell (Ethernet/IP) equipment integrates the system with IC697CPU781-HB and IC697CMM742-GH:

Module Role: PROFINET IO Controller (manages 24 Siemens S7-1500 I/O modules) + Ethernet/IP Scanner (controls 12 Rockwell PowerFlex 755 VFDs).

CPU Role: Executes production line sequencing logic, using module-passed data to adjust conveyor speeds and robotic positions.

Outcome: 30% reduction in integration time vs. using separate communication modules; 99.99% network availability.

2. Oil Refinery Distributed Control System (DCS)

A refinery upgrades its legacy DCS with IC697CPU781-HB and IC697CMM742-GH for crude distillation unit (CDU) control:

Module Role: Connects to 16 ABB PROFINET pressure transmitters (sub-1 ms cycle time) and 48 Modbus RTU flow meters (via RS-485 daisy chain).

CPU Role: Runs advanced PID loops to maintain CDU column temperature, using module-provided real-time data.

Redundancy: Dual IC697CMM742-GH modules paired with hot-standby IC697CPU781-HB—zero unplanned downtime in 24 months of operation.

3. Food & Beverage Batch Processing

A beverage plant uses the module to integrate legacy and modern equipment:

Module Role: Converts Modbus RTU data from 20 legacy filling machines to Ethernet/IP for the plant’s Rockwell MES system.

CPU Role: Manages batch recipes and quality control logic, with the module syncing recipe parameters to PROFINET-enabled mixers.

Benefit: Avoided $200k in legacy equipment replacement costs; batch changeover time reduced by 15 minutes.

Related Model Recommendations

GE IC697CMM742-GH

Installation, Commissioning and Maintenance

Installation Preparation

Power off the Series 90-70 rack and wear an anti-static wristband. Ensure the target slot (2-20) is vacant and the IC697PWR712 supply can support additional 1.2 A @ 5 V DC.

Gather tools: Phillips screwdriver, torque wrench (4.5 N·m), gigabit Ethernet cables (CAT6a for PROFINET), RS-485 shielded cable, and PC with Proficy Machine Edition (v9.5+).

Verify environment: -10°C to 65°C temperature, 5%-95% RH (non-condensing). For ATEX Zone 2 areas, use flame-retardant cables and verify module certification.

Commissioning Steps

Hardware Installation: Insert the module into the rack, secure with screws (4.5 N·m torque), and connect Ethernet/RS-485 cables. Power on the rack—confirm green Power LED and no red Fault LED.

Configuration Synchronization:

Launch Proficy Machine Edition, connect to the IC697CPU781-HB (via RS-232/Ethernet), and detect the IC697CMM742-GH via backplane scan.

Import GSDML files for PROFINET devices and EDS files for Ethernet/IP devices.

Map module data to CPU tags: e.g., link PROFINET weld gun status (module input 0x0001) to CPU tag “WeldGun_Ready”.

Protocol Testing:

PROFINET: Use “PROFINET IO Test” tool to verify IRT cycle time (< 500 μs) and device synchronization.

Modbus: Send a read request from the module to a slave sensor (address 0x03, register 0x1000) and confirm data matches CPU display.

Redundancy Validation (if configured): Power off the primary module—confirm standby module takes over in < 50 ms and CPU control logic continues uninterrupted.

Maintenance Guidelines

Daily: Check Ethernet Link/Activity LEDs (green = link up, amber = activity) and RS-485 Activity LED. Verify no red Fault LED.

Weekly: Clean module vents with compressed air (<30 psi) to prevent overheating. Inspect Ethernet/RS-485 connectors for corrosion.

Monthly: Use Proficy Machine Edition to run “Network Diagnostic Scan”: check PROFINET IO latency, Modbus RTU error rates, and backplane communication status.

Quarterly: Update module firmware (via GE Support Portal) to patch security vulnerabilities. Verify redundancy synchronization (if applicable).

Annually: For harsh environments, inspect the moisture-resistant coating and test insulation resistance (minimum 100 MΩ at 500 V DC).

Service and Guarantee Commitment

The GE IC697CMM742-GH includes a 3-year standard warranty covering material defects and performance issues. During warranty, GE provides:

Free repair/replacement of faulty modules, with 24-hour expedited shipping for critical applications (e.g., oil refineries).

Dedicated technical support: 24/7 access to PROFINET/Ethernet/IP specialists via phone/email for integration troubleshooting.

Beyond warranty, GE offers extended service plans:

Premium Support: Annual on-site maintenance (network health checks, configuration optimization) and priority technical support (1-hour response time).

Cybersecurity Update Service: Quarterly firmware patches and vulnerability assessments, aligned with IEC 62443 standards.

Training Services: Customized courses on module-CPU integration and multi-protocol troubleshooting (available in-person or online).
