Product Overview

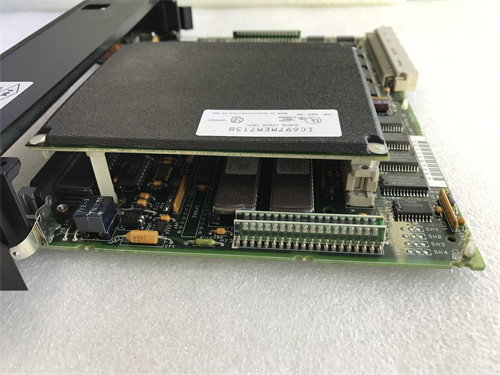

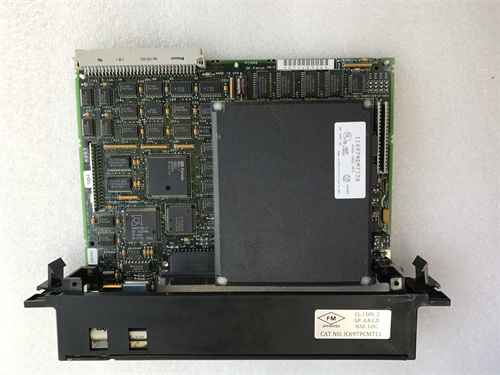

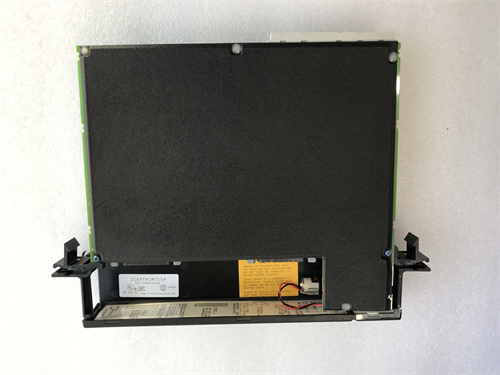

The GE IC697PCM711P is a single – slot programmable coprocessor module, an integral part of the GE Fanuc Series 90 – 70 product line. Engineered with precision, it serves as a powerful addition to industrial control systems. This module features a dual – tasking setup, enabling it to be programmed for a wide array of functions. It can carry out real – time computations, handle operator interface operations, and manage data – related tasks such as storage, acquisition, and communication. Communication between the IC697PCM711P and the PLC CPU occurs via the backplane, eliminating the need for additional application program support. Whether used in simple or complex industrial automation scenarios, the GE IC697PCM711P offers the flexibility to operate with or without an expansion memory daughter board, making it adaptable to different requirements.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC697PCM711P |
| Manufacturer | General Electric |
| Product Type | Programmable Coprocessor Module |
| Input Voltage Range | AC 120 – 240 V |
| Output Current | Up to 5 A |
| Control Channels | 2 channels |
| Program Memory | 64 – 512 Kbytes |
| Current Required | 1.0 amp |
| Serial Ports | 2 (RS – 232/RS – 422/RS – 485 compatible) |
| Battery Shelf Life | 10 years at 20 °C |
| Memory Retention | 6 months without applied power |
| Operating Temperature Range | – 40 °C to + 85 °C |
| Dimensions | 12.5 x 7.5 x 3.5 cm |
| Weight | 0.5 kg |
IC697PCM711P
Main Features and Advantages
Compact and Durable Design: The GE IC697PCM711P is designed to be compact, making it easy to install in industrial control cabinets even with limited space. Its durable construction ensures long – term reliability, withstanding the harsh conditions often found in industrial environments.
Highly Programmable: Offering extensive programmability, the IC697PCM711P can be configured to meet a variety of industrial automation needs. This allows for customization, ensuring it can be tailored to specific control requirements within a system.
Multiple Communication Protocols: It supports a range of communication protocols including Ethernet, Modbus, and Profibus. This versatility enables seamless integration with other components in the control system, facilitating data exchange and overall system coordination.
Flexible Configuration: With the option to operate with or without an expansion memory daughter board, the module provides flexibility in different application scenarios. This adaptability ensures that it can be optimized for specific tasks, whether more memory is required for data – intensive operations or not needed at all.
Highly Programmable: Offering extensive programmability, the IC697PCM711P can be configured to meet a variety of industrial automation needs. This allows for customization, ensuring it can be tailored to specific control requirements within a system.
Multiple Communication Protocols: It supports a range of communication protocols including Ethernet, Modbus, and Profibus. This versatility enables seamless integration with other components in the control system, facilitating data exchange and overall system coordination.
Flexible Configuration: With the option to operate with or without an expansion memory daughter board, the module provides flexibility in different application scenarios. This adaptability ensures that it can be optimized for specific tasks, whether more memory is required for data – intensive operations or not needed at all.
Application Field
Manufacturing Plants: In manufacturing, the GE IC697PCM711P is used for real – time monitoring and control of production lines. It can interface with various sensors and actuators, enabling efficient management of the production process. For example, it can control the speed of conveyor belts, monitor the quality of products through sensor data, and adjust machinery operations accordingly.
Process Control Industry: In industries such as chemical and petrochemical, the module is crucial for data acquisition and analysis. It can collect data from sensors measuring temperature, pressure, and chemical composition in reactors and pipelines. Based on this data, it can control valves, pumps, and other equipment to maintain optimal process conditions.
Power Generation: Power plants rely on the IC697PCM711P for monitoring and controlling power generation and distribution processes. It can manage the operation of generators, control the flow of electricity in the grid, and ensure the stable supply of power. In addition, it can interface with environmental monitoring sensors to ensure compliance with emissions regulations.
IC697PCM711P
Related Products
- IC697CPU771: This is the main CPU module in the GE Fanuc Series 90 – 70. The IC697PCM711P works in tandem with it, where the CPU771 provides overall system control and the IC697PCM711P handles specific coprocessing tasks, enhancing the system’s performance.
- IC693BEM340: A bus expansion module. When used with the IC697PCM711P, it expands the system’s bus capacity, allowing for the connection of more peripheral devices, thus increasing the functionality of the overall industrial control system.
- IC695PSA140: A power supply module that provides the necessary power for the IC697PCM711P and other modules in the system. A stable power supply from this module is essential for the reliable operation of the IC697PCM711P.
- IC698CPE010: An advanced communication processor module. It can enhance the communication capabilities of the IC697PCM711P in more complex industrial network environments, enabling better data transfer and interaction with other network – connected devices.
- IC698ACC701: This module is related to analog input and output. In applications where analog signals need to be processed in combination with the IC697PCM711P‘s functions, the IC698ACC701 can work together with it to handle these analog signals accurately.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC697PCM711P, power to the relevant programmable controller must be disconnected. Thoroughly review the installation manual provided by GE. Ensure the installation environment meets the specified temperature and humidity requirements. Check the module and its accessories for any signs of damage. Make sure the slot in the Series 90 – 70 baseplate where it will be installed is clean and free of debris.
Maintenance recommendations: Regularly monitor the IC697PCM711P‘s operating status, including checking power supply stability and communication connections. Replace the lithium battery before its 10 – year shelf life at 20 °C expires to maintain memory data. Periodically clean the module to prevent dust accumulation, which could affect performance. When software updates are available, install them promptly to improve functionality and stability.
Maintenance recommendations: Regularly monitor the IC697PCM711P‘s operating status, including checking power supply stability and communication connections. Replace the lithium battery before its 10 – year shelf life at 20 °C expires to maintain memory data. Periodically clean the module to prevent dust accumulation, which could affect performance. When software updates are available, install them promptly to improve functionality and stability.
Product Guarantee
GE stands firmly behind the quality of the GE IC697PCM711P. The product undergoes strict quality control during manufacturing to meet high – industry standards. GE offers a standard warranty, covering any defects in materials or workmanship. In the event of a product failure within the warranty period, GE will provide prompt repair or replacement services. Their dedicated technical support team is available around the clock to assist customers with installation, configuration, and any technical issues. This demonstrates GE’s confidence in the IC697PCM711P and commitment to ensuring customer satisfaction and long – term reliable operation in industrial applications.
