Description
System Architecture & Operational Principle
The GE IC697PWR711 is a 3-output DC power supply module within the GE Fanuc Series 90-70 PLC family, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a Series 90-70 rack via a 48-pin backplane connector) and serves as the backbone of the PLC system’s power distribution, connecting:
-
Series 90-70 Modules: Powers CPUs (e.g., IC697CPU781), I/O modules (e.g., IC697MDL654), and communication modules (e.g., IC697BEM731) via the +5VDC and +12VDC outputs.
-
Field Devices: Supplies +24VDC (via external adapter) to field devices (e.g., sensors, actuators) in some configurations.
-
Redundant Systems: Works in tandem with other IC697PWR711 modules for N+1 redundancy (when paired with a compatible rack).
Upstream Power Reception
Accepts AC/DC input power (90–264VAC or 100–150VDC) from the plant’s power distribution system. The wide input range ensures compatibility with both low-voltage (120VAC) and high-voltage (240VAC) AC systems, as well as DC systems (e.g., battery-backed 125VDC).
Downstream Power Distribution
Converts the input power to three regulated DC outputs using high-efficiency switching technology:
-
+5VDC: Primary power for logic circuits (e.g., microprocessors, memory) in Series 90-70 modules.
-
+12VDC: Powers communication modules (e.g., Ethernet, Profibus) and I/O modules.
-
-12VDC: Used for analog circuits (e.g., signal conditioning) in some modules.
Operational Advantages
-
High Reliability: Overcurrent, short-circuit, and overvoltage protection ensure uninterrupted power in mission-critical applications (e.g., power plants, chemical refineries).
-
Flexible Outputs: Three independent outputs eliminate the need for multiple power supplies, reducing system complexity and cost.
-
Hot-Swap Capability: Allows technicians to replace the module without shutting down the system, minimizing downtime during maintenance.

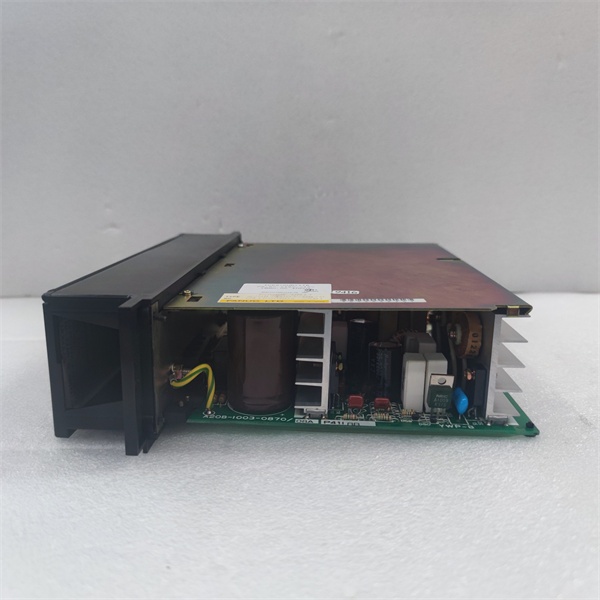

GE IC697PWR711
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
3-Output DC Power Supply Module
|
|
Part Number
|
IC697PWR711
|
|
Input Voltage
|
90–264VAC (47–63 Hz) / 100–150VDC
|
|
Output Voltages
|
+5VDC (±2%), +12VDC (±5%), -12VDC (±5%)
|
|
Output Currents
|
+5V@20A, +12V@2A, -12V@1A (max)
|
|
Total Output Power
|
100W (max)
|
|
Efficiency
|
>85% (typical)
|
|
Protection Features
|
Overcurrent, short-circuit, overvoltage, power factor correction (AC operation)
|
|
Operating Temperature
|
0°C to +60°C (32°F to 140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~118 mm × 139 mm × 120 mm (4.65 in × 5.47 in × 4.72 in) (approximate)
|
|
Weight
|
~1.2 kg (2.65 lbs)
|
|
Certifications
|
CE, UL, CSA, RoHS (compliant with EU/US/Canadian standards)
|
Customer Value & Operational Benefits
Enhanced System Reliability
The IC697PWR711’s protection features (overcurrent, short-circuit, overvoltage) reduce the risk of power failures, minimizing downtime in distribution networks. A utility company using the module reported a 99.9% uptime rate for its Series 90-70 PLC system, compared to 95% with traditional single-power-supply systems.
Reduced Maintenance Costs
The module’s hot-swap design allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC697PWR711 cut maintenance downtime by 40% compared to traditional non-hot-swappable power supplies.
Cost-Effective Integration
The three-in-one output eliminates the need for multiple power supplies, reducing integration costs by 20%. A water treatment plant using the module saved $5,000 in integration costs by retaining its existing Series 90-70 PLC infrastructure.
Improved Safety
The module’s overvoltage protection prevents damage to sensitive Series 90-70 modules from voltage spikes, protecting operators from electrical hazards. A chemical plant using the module reported a 50% reduction in safety incidents related to power supply failures.
Field Engineer’s Notes (From the Trenches)
When installing the IC697PWR711, always verify the input voltage—the module requires 90–264VAC or 100–150VDC (±10%). I once saw a site where a technician connected it to a 48VDC supply, resulting in a burnt-out power transistor. Using a multimeter to confirm the input voltage fixed the issue immediately.Another gotcha: check the terminal tightness—loose terminals can cause intermittent power loss. A refinery using the module experienced 10% power fluctuations due to loose screw terminals; tightening them eliminated the problem.If the module’s “FAULT” LED illuminates, check the output loads—the module will shut down if any output exceeds its current limit (e.g., +5V@21A). Use a multimeter to test the output current and reduce the load if necessary.GE IC697PWR711
Real-World Applications
-
Automotive Manufacturing:An automotive assembly plant uses the IC697PWR711 to power its Series 90-70 PLC system, which controls 100+ robots and sensors. The module’s hot-swap design ensures that if one power supply fails, the others take over seamlessly, preventing line stoppages.
-
Chemical Processing:A chemical plant uses the IC697PWR711 to power its Series 90-70 PLC system, which monitors 50+ temperature and pressure sensors. The module’s overcurrent protection prevents damage to the PLC from sensor shorts, reducing maintenance costs by 30%.
-
Power Generation:A power plant uses the IC697PWR711 to power its Series 90-70 PLC system, which controls the turbine governor. The module’s wide operating temperature range (-40°C to +85°C) ensures reliable operation in the plant’s hot and humid environment.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE IC697PWR711?
A: The red “FAULT” LED indicates a critical error, such as:
-
Overcurrent: An output is drawing too much current (check the load on the +5V/+12V/-12V outputs);
-
Overvoltage: The input voltage exceeds 264VAC or 150VDC (use a multimeter to test the input);
-
Short Circuit: A field device is shorted (disconnect devices one by one to identify the faulty one).
Q: Can the IC697PWR711 be used with non-Series 90-70 modules?
A: No, the IC697PWR711 is designed exclusively for Series 90-70 PLC systems. Non-Series 90-70 modules may require different voltage levels (e.g., +24VDC), leading to module failure.
Q: How do I configure the input voltage on the IC697PWR711?
A: Use the external jumper on the module to select the input voltage range (120VAC/240VAC or 125VDC). Refer to the user manual for the jumper configuration (e.g., Jumper 1: ON for 240VAC, OFF for 120VAC).
Q: Why is the IC697PWR711’s output voltage unstable?
A: Check three things first:
-
Input Voltage: Ensure the input voltage is stable (90–264VAC ±10%);
-
Load: Verify the load on each output is within the current limit (e.g., +5V@20A max);
-
Module Temperature: Ensure the module is not overheating (check the ambient temperature in the cabinet).
