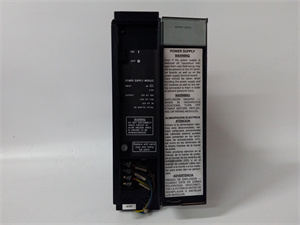

GE IC697PWR748

The General Electric IC697PWR748 is a highly crucial power supply module within the GE Fanuc 90 – 70 series, playing a fundamental role in industrial control systems. This module is designed to provide stable and reliable power, which is essential for the seamless operation of various components within the system.

Operating with a nominal rated voltage of 48 volts DC, the GE IC697PWR748 is engineered to convert this input voltage into multiple output voltages. It offers three distinct output voltages: +5VDC with a capacity of up to 18 amps, +12VDC with an output of up to 1.5 amps, and -12VDC with an output of up to 1 amp, with a total output power of 90 watts. This wide range of output options makes it suitable for powering different types of devices and modules within an industrial setup. The module’s slide – in rack mount construction simplifies installation and maintenance, allowing for easy integration into existing control systems. It can be used in single – rack applications or, with the use of a pre – wired cable (IC697CBL700), can power a second rack, provided the total load remains within the supply rating. This flexibility in application makes the IC697PWR748 a versatile choice for industrial automation and control requirements.

The GE IC697PWR748 offers three precisely regulated output voltages. The +5VDC output, capable of delivering up to 18 amps, is ideal for powering digital circuits and components that require a stable low – voltage power source. The +12VDC and -12VDC outputs, with their respective current capacities, can power analog circuits, amplifiers, and other components that demand these specific voltage levels. This versatility in power output allows it to meet the diverse power requirements of various devices within an industrial control system.

Equipped with electronic short – circuit overcurrent protection on the 5 – volt bus, the IC697PWR748 safeguards connected components from damage due to excessive current. In case of overcurrent situations, the module limits the current, preventing potential overheating and component failures. Additionally, it features overvoltage protection. If the 5 – volt bus exceeds 6.7 volts, the output is clamped, protecting sensitive electronics from high – voltage surges. These protection mechanisms enhance the overall reliability and lifespan of the connected equipment and the entire control system.

The slide – in rack mount construction of the GE IC697PWR748 simplifies the installation process. It can be quickly and securely inserted into the leftmost slot of the rack, which is designed to interface with a 48 – pin backplane – mounted connector. This standardized mounting method ensures compatibility with other modules in the GE Fanuc 90 – 70 series, enabling seamless integration into existing or new control setups. Moreover, its ability to power a second rack using a pre – wired cable (IC697CBL700) adds to its flexibility, allowing for system expansion without the need for complex rewiring or additional power supply units in some cases.

Built with high – grade materials and advanced manufacturing techniques, the IC697PWR748 is highly durable. It can withstand the harsh environmental conditions often present in industrial settings, including vibrations, electrical interferences, and temperature variations. The use of quality components not only enhances its lifespan but also reduces the likelihood of unexpected failures, minimizing costly downtime in industrial operations.

In manufacturing plants, the GE IC697PWR748 is extensively used to power Programmable Logic Controllers (PLCs), Human – Machine Interfaces (HMIs), and various sensors and actuators. For example, in an automotive manufacturing assembly line, it provides stable power to PLCs that control the movement of robotic arms, conveyor belts, and other automated machinery. The precise power output ensures accurate control of these devices, leading to smooth production processes and high – quality product assembly. It also powers HMIs, allowing operators to monitor and control the manufacturing process effectively.

Power generation facilities, such as thermal, hydro, and wind power plants, rely on the IC697PWR748 for powering critical control systems. In a thermal power plant, it can supply power to the control systems that regulate the combustion process, turbine speed, and generator output. The module’s reliable power supply and protection features are crucial in maintaining the stable operation of these systems, ensuring efficient power generation and preventing costly disruptions. In wind power plants, it powers the control systems that manage the pitch and yaw of wind turbine blades, optimizing energy capture and grid – connected stability.

In chemical and petrochemical plants, where precise control of processes is essential for safety and product quality, the GE IC697PWR748 plays a vital role. It powers the Distributed Control Systems (DCS) that monitor and control chemical reactions, fluid flow, and temperature. For instance, in a chemical reactor control system, the module provides stable power to sensors that measure temperature, pressure, and chemical composition. The accurate power supply enables these sensors to provide real – time data to the DCS, which then adjusts process parameters to ensure optimal reaction conditions. The module’s protection mechanisms are also crucial in these hazardous environments, safeguarding the control systems from electrical faults that could potentially lead to safety incidents.

IC697PWR748A – IC697PWR748P: These are likely variations of the IC697PWR748 with potential differences in performance, features, or compatibility. They might have slightly different voltage regulation capabilities, power output tolerances, or additional protection features. For example, some versions could be optimized for specific applications where higher precision in voltage output is required, while others might have enhanced resistance to electrical interference.
IC697CBL700: This is a pre – wired cable that is used to connect the IC697PWR748 to a second rack when powering a dual – rack setup. It is specifically designed to work in tandem with the power supply module, ensuring a reliable and easy – to – install connection for system expansion.
Other Modules in the GE Fanuc 90 – 70 Series: Modules like input/output (I/O) modules (such as IC697MDLxxx series) rely on the power provided by the IC697PWR748. These I/O modules interface with external devices, such as sensors and actuators, and the stable power from the IC697PWR748 enables them to accurately receive and transmit signals, facilitating the overall control and monitoring functions of the industrial system.
GE Fanuc 90 – 70 Series Controllers: Controllers in this series, like the IC697CPUxxx models, are powered by the IC697PWR748. They are the brains of the control system, making decisions based on the data received from I/O modules. The reliable power supply from the IC697PWR748 ensures that these controllers operate smoothly, executing control algorithms and coordinating the operation of the entire industrial control setup.

Pre – installation preparation: Before installing the GE IC697PWR748, carefully read the installation manual provided by General Electric. Ensure that the power to the system is turned off to avoid electrical hazards. Inspect the module for any visible signs of damage during transit. Verify the compatibility of the IC697PWR748 with other components in the GE Fanuc 90 – 70 series control system. Prepare the installation area, making sure it meets the specified environmental conditions, such as temperature and humidity requirements. The module should be inserted into the leftmost slot of the rack, ensuring a proper fit with the 48 – pin backplane – mounted connector. Use the provided mounting screws to securely fasten the module to the rack, ensuring good grounding.

Maintenance recommendations: Regularly check the GE IC697PWR748 for any loose connections. Vibration in industrial environments can cause wires to come loose over time, which may lead to power supply issues. Monitor the operating temperature of the module. If it exceeds the specified range, it could indicate a potential problem, such as a cooling issue or component malfunction. Clean the module periodically to remove dust and debris that could affect its performance. Use appropriate cleaning tools to avoid electrostatic discharge. Check the fuse in the module regularly. In case of an overvoltage condition caused by an internal fault, the fuse may open. If the fuse needs replacement, use a 5 – amp, 250 – volt 5×20 mm fuse as specified. If any abnormal behavior is detected, such as incorrect voltage output or overheating, refer to the troubleshooting guide in the product manual or contact GE’s technical support for prompt assistance.

General Electric stands firmly behind the quality of the GE IC697PWR748 power supply module. The product undergoes rigorous quality control procedures during manufacturing to meet the highest industry standards. GE offers a comprehensive warranty for the IC697PWR748, covering any manufacturing defects that may occur during the warranty period. In case of such defects, they will provide repair or replacement services promptly. Their team of highly skilled technical experts is available around – the – clock to offer technical support for installation, operation, and troubleshooting. This commitment to quality and customer service reflects GE’s confidence in the reliability and performance of the GE IC697PWR748, giving customers peace of mind when integrating this module into their industrial control systems.
