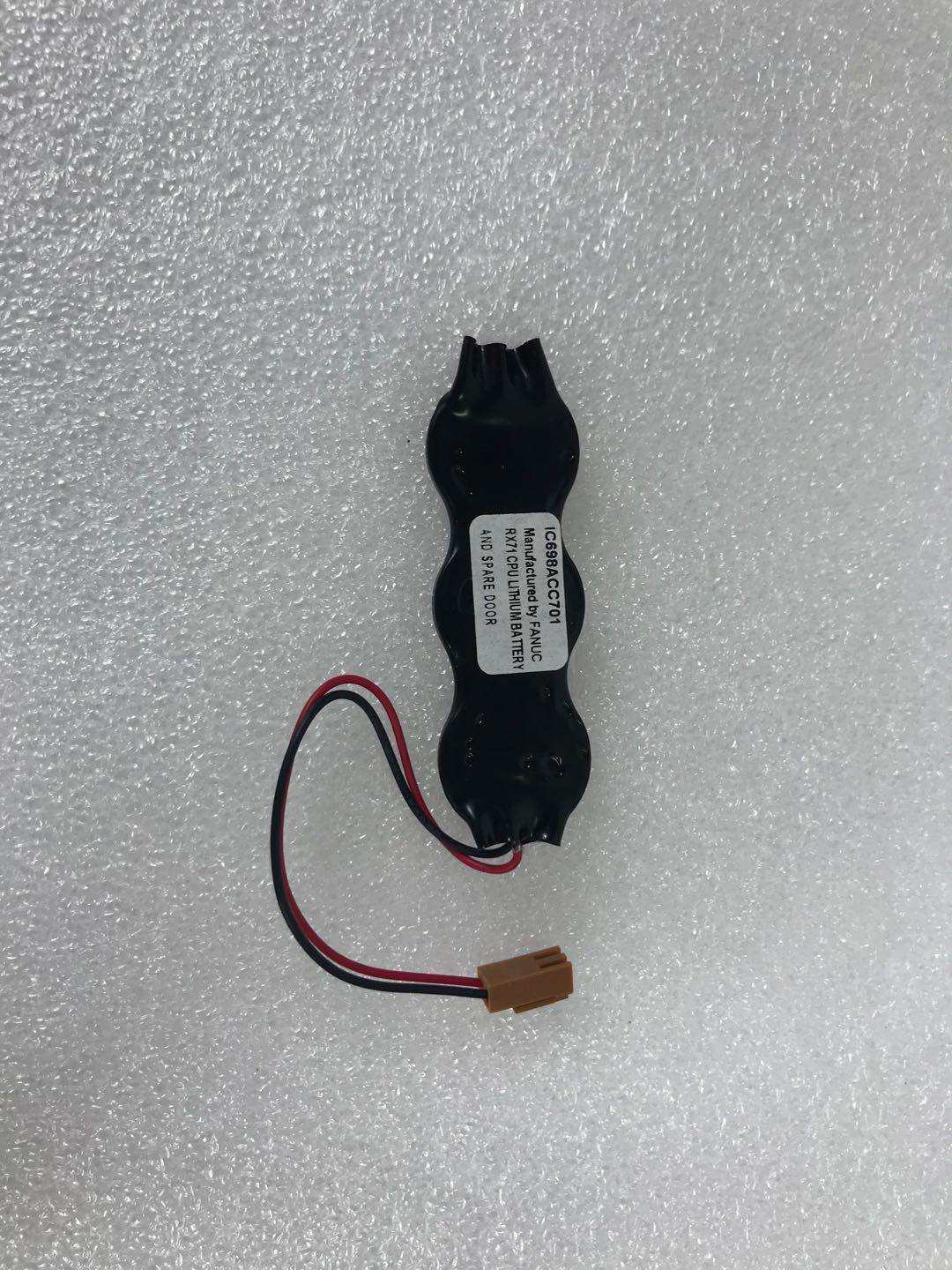

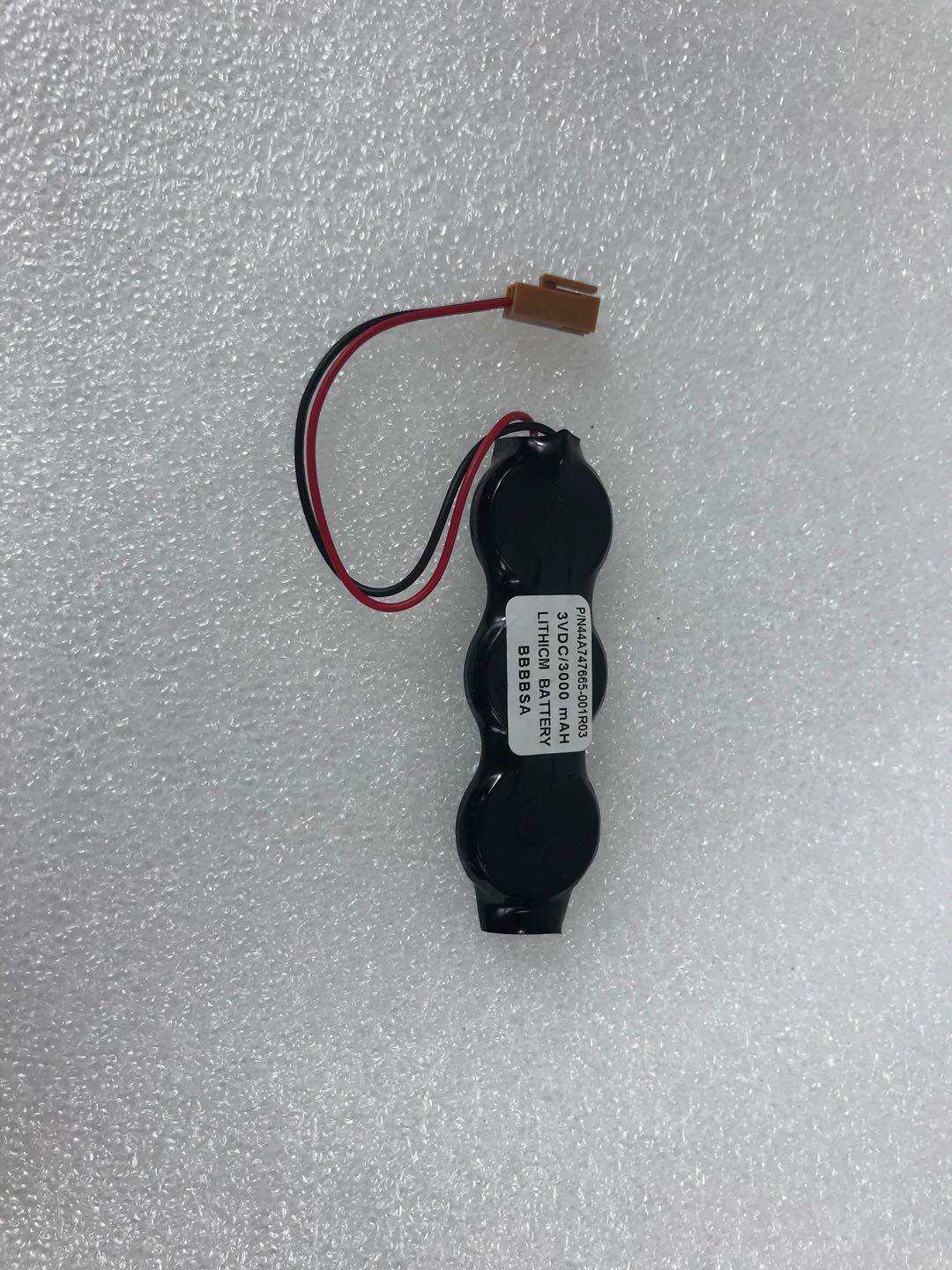

GE IC698ACC701

The GE IC698ACC701 is an auxiliary smart battery module that plays a pivotal role within the PACSystems RX7i series by General Electric. As a key component in industrial automation setups, it’s designed to ensure the seamless operation of the system, especially when it comes to safeguarding crucial data. This module serves as an extended RAM backup solution for the RX7i CPUs. Its “smart” feature, a distinct advantage, allows it to alert operators when the power level is approaching a critical low. This early warning system gives operators sufficient time to take corrective actions, such as replacing the battery, before any data loss occurs in the volatile memory. In the fast – paced and data – driven world of industrial automation, the GE IC698ACC701 is an essential safeguard for maintaining system integrity and continuity.

Smart Battery Monitoring: The GE IC698ACC701 is equipped with a built – in battery – monitoring circuit. This intelligent feature notifies users when the battery power is low. Once the power output drops below 2.5 volts (from its nominal above 2.5 volts), operators have 15 days to replace the battery, preventing any loss of volatile memory contents. This significantly reduces the risk of data corruption and system disruptions in industrial processes.
Extended Battery Life: With a maximum battery capacity of 15 amps – hours and a standard shelf life of 7 years at 20 degrees Celsius storage temperature, the module offers extended periods of reliable operation. When used as a memory battery backup for certain RX3i PACSystems CPUs like the IC695CPU310 or IC695CMU310, it has a maximum battery life of 200 days. Even for other RX3i CPUs such as the IC695CPU320/Cru320 or IC695CPU315, it still provides a reasonable 23 – day maximum battery life.
Robust Casing: Housed in a flame – retardant ABS plastic casing, the GE IC698ACC701 is well – protected against harsh environmental conditions. This ensures its durability and functionality, even in challenging industrial settings where factors like dust, heat, and potential fire hazards may be present.

Industrial Automation Systems: In large – scale manufacturing plants, the GE IC698ACC701 is used to safeguard the data stored in the CPUs of the PACSystems RX7i. For example, in an automotive assembly line where the control system manages the precise movement of robotic arms and conveyor belts, the module ensures that any critical operational data is not lost during power disruptions. This helps maintain the continuity of the production process and reduces downtime.
Power Generation Facilities: Power plants, whether they are coal – fired, gas – powered, or renewable energy – based, rely on complex control systems. The GE IC698ACC701 is utilized here to back up the RAM of CPUs in the control systems. In the event of a sudden power glitch or planned maintenance that involves powering down parts of the system, the battery module ensures that important data related to the power generation process, such as generator settings and sensor readings, is preserved.
Oil and Gas Industry: In oil rigs and refineries, the control systems need to operate continuously and reliably. The GE IC698ACC701 provides the necessary RAM backup for CPUs in these systems. For instance, it safeguards data related to the monitoring and control of oil extraction, refining processes, and the operation of valves and pumps. This helps in maintaining the safety and efficiency of the oil and gas operations.

IC693ACC302: This is a standard battery module. Unlike the GE IC698ACC701, it lacks the smart battery – monitoring feature. The GE IC698ACC701 offers an upgrade in terms of functionality, providing users with the ability to be alerted about low battery levels.
IC695CPU310: A CPU module within the PACSystems series. The GE IC698ACC701 can be used as a memory battery backup for this CPU, ensuring that its data remains intact during power – related issues.
IC695CPU320: Another CPU module. Similar to the IC695CPU310, the GE IC698ACC701 can serve as its backup power source for RAM, but it has a slightly different maximum battery life when paired with this CPU compared to others.
IC695CMU310: A module in the PACSystems family. The GE IC698ACC701 is compatible with it and offers extended RAM backup, contributing to the overall stability of the system it is a part of.
GE IC698PSD300: A power supply module. While the GE IC698ACC701 focuses on providing backup power for RAM in case of power outages, the IC698PSD300 is responsible for supplying the main power to the system components, and both are crucial for the proper functioning of the industrial automation setup.

Pre – installation preparation: Before installing the GE IC698ACC701, verify that all the necessary components are present, including the JAE connectors and the enabling adapter cable. Check the battery’s date code to ensure its freshness and proper functionality. Connect the female JAE connector on the battery to the male JAE connector on the enabling cable first. Then, connect the female connector on the enabling cable to the appropriate battery access ports on the central processing unit. Note that the battery access ports may vary between RX3i and RX7i devices, so refer to the product documentation for accurate instructions.
Maintenance recommendations: To increase the efficiency and lifespan of the GE IC698ACC701, power on the central processing unit before connecting the battery. When the battery is not in use, disconnect the enabling cable to further extend its lifespan. Regularly monitor the battery status through the smart monitoring feature. When the battery reaches the end of its life, dispose of it following the proper guidelines provided with the product to ensure environmental safety.

GE stands firmly behind the quality of the GE IC698ACC701. The module undergoes strict quality control measures before leaving the factory. It comes with a comprehensive warranty that typically covers manufacturing defects. In case of any issues during the warranty period, GE’s global technical support team is readily available. They can offer detailed guidance on installation, troubleshooting, and if required, arrange for the repair or replacement of the GE IC698ACC701 module. This demonstrates GE’s commitment to customer satisfaction and the reliability of their product in industrial applications.
