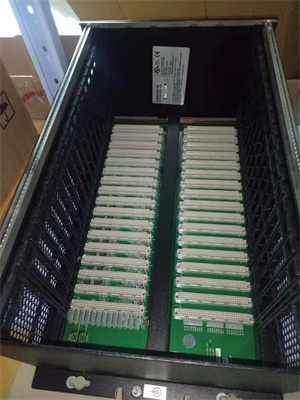

GE IC698CHS017B

Product Introduction

The GE IC698CHS017B is a high-density chassis module in GE’s RX3i PLC family, designed to serve as the “physical and electrical backbone” for large-scale industrial automation systems. Unlike smaller RX3i chassis (e.g., 12-slot IC695CHS012), the GE IC698CHS017B offers 17 slots—enough to house a high-performance CPU like the GE IC698CPE020, multiple I/O modules (e.g., IC695ALG808-AA), communication modules (e.g., GE IC698ETM001), and a redundancy module (e.g., IC695RCM001)—all in a single chassis.

Technical positioning for industries requiring extensive module integration (e.g., large chemical plants, automotive megafactories, utility-scale solar farms), the GE IC698CHS017B features a 1 Gbps backplane that ensures synchronous data transfer between modules—critical for maintaining the GE IC698CPE020’s multi-tasking performance (e.g., PID loops + CIP Motion). It eliminates the need for multiple chassis (and associated cabling) by centralizing module mounting, reducing control cabinet footprint by up to 40% compared to using two 12-slot chassis. In automation architectures, the GE IC698CHS017B acts as a “module hub,” providing stable power distribution and high-speed backplane communication to ensure all RX3i components work in tandem.

Core Advantages and Technical Highlights

17-Slot High Density for Space Optimization: The GE IC698CHS017B’s 17-slot design accommodates more modules than standard 16-slot industrial chassis, eliminating the need for a second chassis in systems requiring 17 components (e.g., 1 GE IC698CPE020 CPU + 10 IC695ALG808-AA I/O modules + 4 GE IC698ETM001 communication modules + 1 IC695RCM001 redundancy module). For an automotive component factory, this reduces cabinet space usage by 35% and eliminates inter-chassis communication delays, ensuring the GE IC698CPE020’s motion control axes remain synchronized.

1 Gbps High-Speed Backplane: The GE IC698CHS017B’s backplane delivers 1 Gbps data transfer—2x faster than legacy RX3i 500 Mbps chassis—critical for high-performance modules like the GE IC698CPE020. In a large chemical plant, this speed ensures the CPU receives real-time data from 10 remote IC695ALG808-AA modules (monitoring reactor temperatures) in ≤1 ms, enabling immediate PID adjustments to prevent process deviations.

Fanless Passive Cooling: Unlike fan-cooled chassis (which accumulate dust and fail in harsh environments), the GE IC698CHS017B uses an industrial-grade aluminum heatsink for passive convection. This design is ideal for dusty settings like cement plants or grain processing facilities, where fan maintenance would be frequent and costly. The heatsink also operates silently, making the GE IC698CHS017B suitable for noise-sensitive areas (e.g., pharmaceutical cleanrooms).

Robust EMI Shielding and Durability: Constructed with cold-rolled steel (for EMI shielding) and a polycarbonate front panel (impact-resistant), the GE IC698CHS017B meets EN 61000-6-2 standards—protecting internal modules (e.g., GE IC698CPE020) from electrical noise generated by nearby motors or variable frequency drives (VFDs). Its wide operating temperature range (-10°C to 65°C) also ensures reliable performance in extreme conditions, from frozen food processing plants (-10°C) to desert solar farms (65°C).

Typical Application Scenarios

In large chemical plants with 15+ reactor vessels, the GE IC698CHS017B houses a GE IC698CPE020 CPU, 10 IC695ALG808-AA analog input modules (monitoring temperature/pressure), 3 GE IC698ETM001 Ethernet modules (connecting to SCADA/MES), 2 IC695ALO404-AA analog output modules (controlling dosing pumps), and 1 IC695RCM001 redundancy module. The chassis’s 17 slots eliminate the need for a second chassis, while its 1 Gbps backplane ensures the GE IC698CPE020 processes reactor data in real time—preventing batch failures and ensuring compliance with EPA regulations.

For automotive megafactories producing electric vehicle (EV) batteries, the GE IC698CHS017B integrates a GE IC698CPE020 (managing 64 motion axes), 8 IC695DIA320-AA digital input modules (tracking battery cell position), 4 IC695DO320-AA digital output modules (controlling robotic arms), 2 GE IC698ETM001 modules (linking to quality control systems), and 1 IC695RCM001. The chassis’s passive cooling avoids dust contamination (critical for battery production), while its compact design fits in the factory’s automated control cabinets.

In utility-scale solar farms (200 MW+), the GE IC698CHS017B houses a GE IC698CRE030 CPU (high-scalability upgrade for GE IC698CPE020), 12 IC695ALG808-AA modules (monitoring inverter voltage/current), 2 GE IC698ETM001 modules (connecting to cloud SCADA), and 1 IC695RCM001. Its wide temperature range (-10°C to 65°C) withstands desert heat, while the 1 Gbps backplane ensures the CPU receives data from 1,200+ inverters without lag—maximizing energy production efficiency.

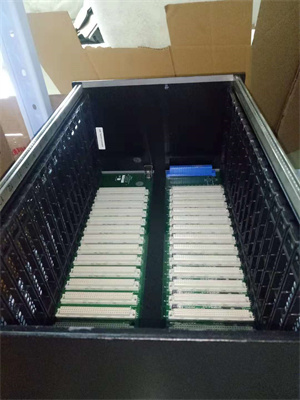

GE IC698CHS017B

Related Model Recommendations

GE IC698CPE020: Balanced-performance RX3i CPU—primary module for GE IC698CHS017B in medium-to-large systems (e.g., chemical plants, automotive component factories).

GE IC698CRE030: High-scalability RX3i CPU—upgrade option for GE IC698CHS017B in ultra-large systems (e.g., 200 MW solar farms, EV battery megafactories).

IC695PWR120: 120V AC to 5V DC power supply—powers GE IC698CHS017B and internal modules in North American industrial facilities.

IC695PWR240: 240V AC to 5V DC power supply—compatible with GE IC698CHS017B for European/Asian markets (240V AC grids).

IC695ALG808-AA: 8-channel analog input module—paired with GE IC698CHS017B to collect sensor data (temperature/pressure) for GE IC698CPE020.

GE IC698ETM001: Compact Ethernet module—expands GE IC698CHS017B’s network connectivity for SCADA/MES integration.

IC695RCM001: Redundancy control module—enables hot-standby for GE IC698CPE020 in GE IC698CHS017B (critical for regulated industries).

IC695CHS012: 12-slot RX3i chassis—smaller alternative to GE IC698CHS017B for mid-sized systems (e.g., regional water treatment plants).

IC695DIA320-AA: 32-channel digital input module—installed in GE IC698CHS017B to monitor discrete devices (e.g., limit switches, photoeyes) for GE IC698CPE020.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC698CHS017B, ensure the control cabinet meets environmental specs (-10°C to 65°C, 5%-95% non-condensing humidity) and has sufficient weight support (≥8 kg for fully loaded chassis). Required tools include a torque screwdriver (1.5-2.0 N·m for mounting), anti-static wristband (prevent ESD damage to modules), and level tool (ensure chassis alignment). For DIN rail mounting, clean the rail to remove debris; for panel mounting, use M4 screws (min. 10 mm length) to secure the chassis. Never install GE IC698CHS017B near heat sources (e.g., VFDs) or in direct sunlight.

Module installation and maintenance: When inserting modules (e.g., GE IC698CPE020, IC695ALG808-AA) into GE IC698CHS017B, align the module’s guide pins with the chassis’s slots and push firmly until it latches—do not force modules (this may damage the backplane). After installation, verify power distribution by checking each module’s “PWR” LED (steady green = normal). For maintenance, clean the chassis’s heatsink every 3 months with compressed air (≤50 psi) to remove dust; inspect backplane connectors annually for corrosion (use a dry cloth to clean if needed). If a module fails, power off the chassis before replacement to avoid backplane damage.

Service and Guarantee Commitment

The GE IC698CHS017B comes with a 2-year manufacturer’s warranty—extended beyond standard RX3i modules—covering defects in materials (e.g., steel chassis, heatsink) and workmanship under industrial use. GE provides 24/7 technical support via phone, email, and online portals, with certified engineers specializing in RX3i chassis systems available to assist with GE IC698CHS017B installation, backplane troubleshooting, and module compatibility checks.

Beyond warranty, GE offers on-site commissioning services for GE IC698CHS017B, including chassis mounting validation, power distribution testing, and backplane speed verification (via specialized tools to confirm 1 Gbps transfer). Global service centers stock genuine spare parts (e.g., front panels, mounting brackets), ensuring expedited replacement (typically 2-3 business days for urgent orders) to minimize downtime. GE’s quality commitment includes 100% factory testing of each GE IC698CHS017B—validating backplane performance, EMI shielding, and cooling efficiency—to meet the strict reliability standards of large-scale industrial automation.
