Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC698CPE010-JU |
| Manufacturer | GE Fanuc |
| Product Category | Central Processing Unit (CPU) |
| Series | PACSystem RX7i |
| Processor Speed | 300 MHz |
| CPU Memory | 10 MB RAM, 10 MB Flash Memory |
| I/O Capacity | 32 Kbits Discrete I/O, 32 KWords Analog I/O |
| Communication Ports | 3 Serial Ports (RS-232, RS-485), 2 Ethernet Ports (10/100 Mbps) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Dimensions (L×W×H) | 13.3 cm × 7.08 cm × 3.93 cm |
| Weight | 1 kg |
| Certifications | CE, UL |
Product Introduction

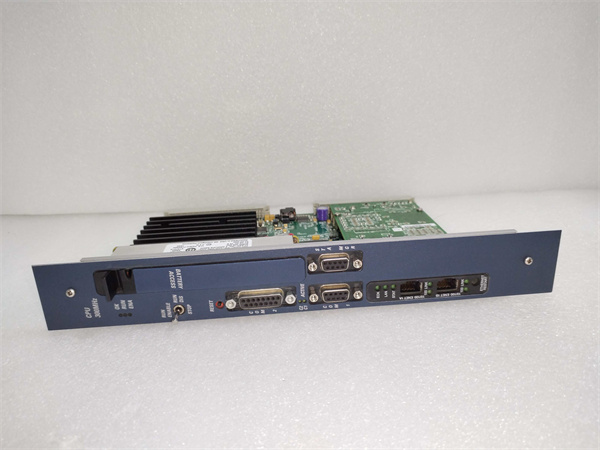

The GE IC698CPE010-JU is a high-performance Central Processing Unit (CPU) module designed for the PACSystem RX7i platform. This CPU is part of the GE Fanuc series, now part of Emerson Automation, and is engineered for robust performance in industrial automation applications.
Core Advantages and Technical Highlights
High-Speed Processing: The IC698CPE010-JU features a 300 MHz Intel Celeron microprocessor, capable of performing floating-point calculations with a Boolean execution speed of 0.33 ms per 1000 Boolean contacts/coils.
Robust Communication Capabilities: The module supports multiple communication protocols, including Modbus RTU Slave, SNP, Serial I/O, Ethernet Global Data (EGD), SRTP, Modbus TCP Server, and Modbus TCP Client.
Flexible Configuration: The IC698CPE010-JU supports up to 512 program blocks, each with a maximum size of 128 KB. It also features 10 MB of battery-backed RAM and 10 MB of non-volatile flash memory.
Advanced Diagnostics: The module includes per-channel status LEDs and real-time health monitoring, simplifying troubleshooting and maintenance.
Wide Operating Temperature Range: The IC698CPE010-JU operates reliably within a temperature range of 0°C to 60°C, making it suitable for harsh industrial environments.
Typical Application Scenarios
The GE IC698CPE010-JU is widely used in various industrial sectors, including:
-
Manufacturing Plants: For process control and monitoring, enabling consistent production quality.
-
Power Plants: For automation of power distribution systems, ensuring efficient resource allocation and minimizing waste.
-
Transportation Sector: Enhancing systems for traffic management and control, improving safety and efficiency.
Related Model Recommendations
-
IC698CPE010AA: A variant with different firmware, suitable for specific customization needs.
-
IC698CPE010CD: Another variant with enhanced features and improved performance.
-
IC698MDL240: A versatile I/O module that works seamlessly with the IC698CPE010-JU, providing additional configuration options.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Check the compatibility of the module with the existing system, especially ensuring it is suitable for the specific GE Fanuc Series 90-30 PLC model used. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation. If any issues are detected, refer to the troubleshooting guide in the manual for inspection and repair.
Service and Guarantee Commitment
The GE IC698CPE010-JU comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE provides technical support and service to assist with installation, troubleshooting, and maintenance, ensuring the stable operation of the industrial automation system.
