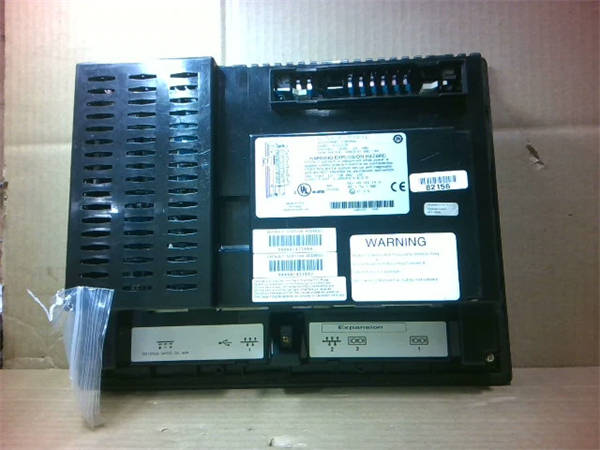

GE IC754CBF12CTD

Description

Detailed Parameter Table

GE IC754CSF12CTD

Product Introduction

The GE IC754CBF12CTD is a high-performance 12-inch touchscreen HMI from GE’s Proficy HMI/SCADA product line, engineered to serve as a reliable human-machine interaction hub for industrial automation systems requiring balanced heat dissipation and operational stability. Unlike fanless HMI variants, the GE IC754CBF12CTD adopts a low-noise brushless fan cooling system paired with a precision heat sink—making it ideal for high-load scenarios (e.g., running multiple concurrent HMI applications) or enclosed cabinets where passive cooling alone may be insufficient.

Equipped with a 12-inch SVGA (800×600) TFT LCD display with an anti-glare coating, the GE IC754CBF12CTD delivers exceptional visibility in bright industrial environments (400 nits brightness) and remains readable even under direct factory lighting. Its 5-wire resistive touchscreen supports 2 million touch cycles, ensuring long-term reliability for high-frequency operation (e.g., shift-based factory control). Powered by an Intel Celeron J4125 quad-core processor (up to 2.7 GHz burst speed) and 8 GB DDR4 RAM, the GE IC754CBF12CTD handles complex tasks like real-time trend analysis and multi-PLC data aggregation seamlessly. With 128 GB SSD storage (expandable via a 2.5-inch SSD slot), it also provides ample space for large application files and historical data logs. The module’s dual Gigabit Ethernet ports and multi-protocol support enable seamless integration with GE PLCs (e.g., GE IC695CPU315CA RX3i CPU) and third-party devices, solidifying its role as a versatile control interface for medium to large-scale automation systems.

Core Advantages and Technical Highlights

Enhanced Cooling for High-Load Reliability: The GE IC754CBF12CTD’s brushless fan + heat sink cooling system addresses a key limitation of fanless HMIs: sustained performance under high loads. The fan operates at a low 2500 RPM (28 dB max), minimizing noise while maintaining efficient heat dissipation—critical for applications like continuous process monitoring, where the HMI runs 24/7 with multiple active dashboards. The air duct design directs airflow precisely over the processor and SSD, preventing overheating even in enclosed cabinets (common in pharmaceutical or electronics manufacturing), where ambient temperatures can rise to 60°C.

Superior Display and Touch Durability: Compared to standard industrial HMIs, the GE IC754CBF12CTD’s display offers two key upgrades: 400 nits brightness (20% higher than many competitors) and an anti-glare coating. This combination ensures readability in harsh lighting conditions—from outdoor solar farm control rooms to indoor foundries with intense overhead lights. Its touchscreen also supports 2 million touch cycles (double the industry average for entry-level HMIs), reducing replacement frequency in high-usage settings like automotive assembly lines, where operators interact with the HMI hundreds of times per shift.

Powerful Processing and Expandability: The GE IC754CBF12CTD’s Intel Celeron J4125 quad-core processor outperforms dual-core alternatives in multi-tasking scenarios. For example, it can simultaneously run a Proficy iFIX dashboard, log 6 months of historical process data, and communicate with three GE IC697CPU788RR redundant PLCs—all without lag. The 8 GB DDR4 RAM (double that of many 12-inch HMIs) further enhances responsiveness, while the 128 GB SSD (with an optional 2.5-inch SSD expansion slot) allows users to store large batches of production data locally, eliminating reliance on external servers for critical log access.

Versatile Connectivity for Integrated Systems: The GE IC754CBF12CTD supports a broader range of industrial protocols than many peers, including Modbus TCP, Ethernet/IP, and GE’s proprietary Genius Bus (via compatible modules). Its dual Gigabit Ethernet ports enable redundant communication paths—essential for mission-critical applications like power plant turbine control, where network downtime could cause costly outages. The four USB 3.1 ports also allow connecting peripherals like barcode scanners (for batch tracking) or wireless keyboards (for data entry), while the HDMI 2.0 output supports external monitors for multi-screen setups (e.g., control rooms with separate dashboards for operators and supervisors).

Typical Application Scenarios

The GE IC754CBF12CTD excels in industrial environments requiring high performance and reliable cooling. In electronics manufacturing, for example, the GE IC754CBF12CTD is mounted in enclosed control cabinets to monitor and control surface mount technology (SMT) machines. Its cooling system prevents overheating while the HMI runs concurrent applications: a Proficy iFIX dashboard tracking component placement accuracy, a data logger recording solder paste temperatures, and a communication link to a GE IC695CPU315CA PLC managing conveyor speeds. The 400 nits anti-glare display ensures operators can read component alignment data even under the bright LED lights of the SMT workshop, while the durable touchscreen withstands frequent adjustments during shift changes.

In pharmaceutical production, the GE IC754CBF12CTD controls sterile filling lines—an application requiring 24/7 operation and strict data logging. The HMI’s quad-core processor handles real-time monitoring of filling pressure (from GE IC697VAL348 analog modules) and batch recipe management, while the 128 GB SSD stores compliance data (e.g., FDA-mandated process logs) for up to 12 months. Its IP65 front panel resists occasional washdowns with sanitizing agents, and the low-noise fan ensures compliance with cleanroom noise standards (below 30 dB). The dual Ethernet ports provide redundant connectivity to the plant’s SCADA system, preventing data loss during network maintenance.

In renewable energy (e.g., wind farms), the GE IC754CBF12CTD serves as the local HMI for wind turbine control cabinets. Its wide operating temperature range (-5°C to 65°C) withstands the extreme cold of winter and heat of summer on turbine nacelles, while the cooling system maintains performance during prolonged operation (e.g., tracking wind speed, generator temperature, and power output). The HMI communicates with a GE IC695CRU320CA power supply and remote PLCs, allowing technicians to adjust turbine parameters locally or send data to a central monitoring system—ensuring optimal energy production and minimizing downtime.

GE IC754CSF12CTD

Related Model Recommendations

GE IC754CBF15CTD: A 15-inch variant of the GE IC754CBF12CTD (1024×768 XGA resolution), ideal for control rooms needing larger displays to monitor multiple processes—retains the same cooling system and processor for consistent performance.

GE IC695CPU315CA: RX3i series quad-core CPU module, directly compatible with GE IC754CBF12CTD—the HMI visualizes real-time PLC data (e.g., I/O status, control loops) and sends parameter adjustments.

GE IC695CRU320CA: RX3i rack-mounted power supply, provides stable 18V-36V DC power to GE IC754CBF12CTD in distributed systems (e.g., wind farm turbine cabinets).

GE IC697BEM721: Genius Bus Controller Module, enables GE IC754CBF12CTD to communicate with legacy Series 90-70 I/O modules (e.g., in older manufacturing plants) via Genius Bus protocol.

GE IC754PSU2400: 24V DC industrial power supply, tailored for GE IC754CBF12CTD—regulates voltage in facilities with unstable grids (e.g., remote mining sites) to prevent HMI shutdowns.

GE Proficy iFIX 7.0: HMI/SCADA software optimized for GE IC754CBF12CTD, offering advanced features like predictive maintenance dashboards and compliance-ready data logging for regulated industries.

GE IC754CSF12CTD: Fanless 12-inch HMI sibling of GE IC754CBF12CTD, suitable for dust-intensive environments (e.g., cement plants) where fans could clog—shares the same display and touch technology.

GE IC695COMM301: Ethernet/IP communication module, enhances data transfer speed between GE IC754CBF12CTD and RX3i PLCs in high-volume applications (e.g., automotive paint shops with 100+ I/O points).

GE IC754CBF10CTD: A 10-inch compact variant of the GE IC754CBF12CTD (640×480 VGA resolution), designed for space-constrained setups (e.g., small packaging machines)—uses a smaller fan for efficient cooling.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC754CBF12CTD, ensure the mounting panel is flat, rigid, and can support the unit’s weight (3.2 kg). Cut a panel opening of 300 mm × 230 mm (11.8 in × 9.1 in) to fit the HMI’s front bezel—this ensures a tight seal for IP65 protection. Wear an ESD wrist strap to avoid damaging internal components (e.g., the SSD or processor), and verify the input voltage (18V-36V DC) matches the power supply (e.g., GE IC754PSU2400). For enclosed cabinets, ensure at least 50 mm of clearance around the HMI’s side vents to maintain airflow for the cooling system—blocked vents can cause overheating. Route power and communication cables through cable glands to prevent water ingress, and separate signal cables (Ethernet, USB) from high-voltage motor cables to reduce EMI interference. Secure the HMI with the provided screws, ensuring the front bezel is flush with the panel to avoid dust accumulation.

Maintenance suggestions: Conduct weekly inspections of GE IC754CBF12CTD—check the fan for dust buildup (use compressed air to clean vents if needed) and verify the fan is running quietly (unusual noise indicates a failing fan, which should be replaced immediately). Wipe the touchscreen bi-weekly with a soft, lint-free cloth dampened with isopropyl alcohol—avoid harsh chemicals that could damage the anti-glare coating. Every month, test communication with connected PLCs (e.g., GE IC697CPU788RR) by triggering a test signal and confirming the HMI displays data correctly—reboot the HMI if lag or disconnections occur. Back up configuration files and historical data quarterly to an external drive (via USB or Ethernet) to prevent loss from SSD failure. Calibrate the touchscreen annually using the built-in Windows tool—this ensures accurate input, especially in applications requiring precise parameter adjustments (e.g., pharmaceutical dosing). For hardware issues (e.g., unresponsive touch, fan failure), contact GE support—unauthorized disassembly will void the warranty.

Service and Guarantee Commitment

The GE IC754CBF12CTD comes with a 36-month warranty from the date of purchase, covering defects in materials (e.g., display panel, fan, SSD) and workmanship under normal industrial use. This includes the brushless fan—GE guarantees fan performance for 20,000 hours (over 2 years of continuous operation) to minimize maintenance concerns. GE’s global technical support team is available 24/7 via email, online chat, and remote diagnostics to assist with installation, software configuration (e.g., Proficy iFIX setup), and troubleshooting—critical issues (e.g., HMI failure causing production downtime) receive priority support, with a response time of less than 2 hours and on-site assistance within 48 hours in major industrial regions (North America, Europe, Asia Pacific).

For customers in regulated industries (e.g., pharmaceuticals, energy), GE offers customized service agreements tailored to GE IC754CBF12CTD, including annual preventive maintenance (fan inspection, touchscreen calibration, firmware updates), compliance documentation support (e.g., FDA 21 CFR Part 11 for data integrity), and expedited spare parts delivery (48-hour global shipping for critical components like fans or SSDs). All genuine GE IC754CBF12CTD units undergo rigorous testing—including 5,000 hours of continuous operation at 65°C, ESD stress tests, and vibration trials—to meet international standards (IEC 61010-1 for electrical safety, EN 61326-1 for EMC immunity, IP65 for environmental protection). In the event of a warranty claim, GE provides a replacement HMI within 48 hours (for stock items) to minimize downtime, reflecting our commitment to product reliability and customer operational continuity.
