GE IC754VGL06CTD ES0622

Product introduction

The GE IC754VGL06CTD ES0622 is a compact and reliable industrial graphic terminal, also known as a Human-Machine Interface (HMI). It serves as a critical bridge between operators and industrial control systems, providing a user-friendly interface for monitoring and controlling industrial processes.

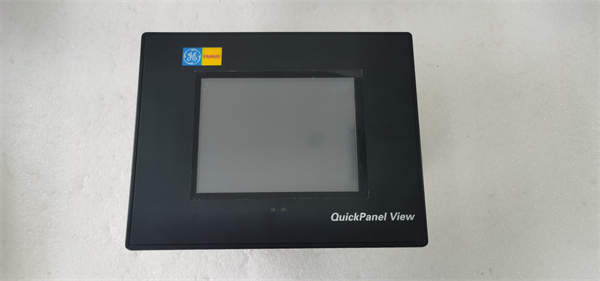

This 6-inch color touchscreen HMI allows operators to visualize real-time data from connected PLCs, controllers, and sensors. It displays process parameters, equipment status, alarm information, and trend graphs in an intuitive format, enabling operators to quickly understand the current state of the industrial system. Through its touch interface, operators can input commands, adjust setpoints, and acknowledge alarms, facilitating efficient control of the process.

Widely used in manufacturing, packaging, material handling, and other industrial sectors, the IC754VGL06CTD ES0622 integrates seamlessly with GE’s PLCs and other mainstream industrial control equipment, making it an ideal choice for small to medium-sized industrial applications where space is limited but effective human-machine interaction is essential.

Core advantages and technical highlights

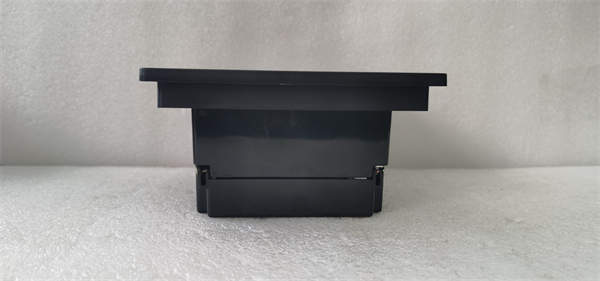

Compact and space-saving design: With a 6-inch display, the IC754VGL06CTD ES0622 is perfect for installation in tight spaces, such as small control cabinets or machinery panels. Its compact size does not compromise functionality, ensuring that operators can still access all necessary information and control options. In a packaging machine, for example, it can be easily mounted on the machine’s control panel without taking up excessive space, while providing clear visibility of production counts, speed, and fault alerts.

Clear visualization and intuitive operation: The high-resolution color touchscreen delivers sharp and vivid displays of industrial data. Operators can quickly identify key information through color-coded indicators, dynamic graphics, and real-time trend charts. The resistive touchscreen is responsive even when operators wear gloves, a common requirement in industrial environments. This intuitive operation reduces training time for new operators and minimizes the risk of operational errors. For instance, in a food processing line, operators can easily navigate through screens to monitor temperature zones, adjust conveyor speeds, and acknowledge cleaning alerts with simple touches.

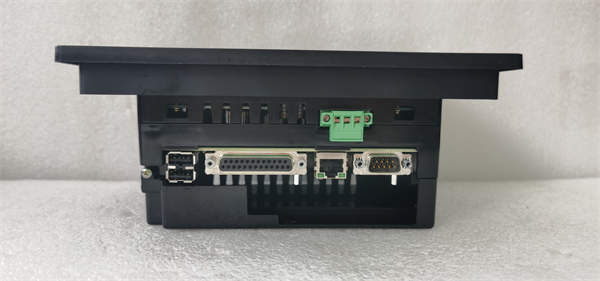

Reliable communication capabilities: Equipped with multiple communication interfaces, including Ethernet and serial ports, the HMI can seamlessly connect to a wide range of industrial devices. It supports standard communication protocols, enabling efficient data exchange with PLCs, SCADA systems, and other control equipment. This ensures that real-time data is transmitted accurately and promptly, allowing operators to make informed decisions. In a material handling system, it can communicate with the PLC controlling the conveyors, displaying the position of goods and enabling operators to manually override the system if needed.

Durable for harsh environments: Designed to withstand the rigors of industrial settings, the IC754VGL06CTD ES0622 operates reliably in temperatures ranging from -10°C to +55°C. It is resistant to dust, vibration, and electromagnetic interference, ensuring stable performance in factories with high levels of electrical noise or mechanical vibration. This durability reduces downtime and maintenance costs, making it suitable for use in demanding environments such as automotive assembly plants or chemical processing facilities.

Easy programming and integration: Compatible with GE’s user-friendly programming software, the HMI allows engineers to quickly develop and customize HMI projects. The software provides a library of pre-built objects, templates, and symbols, simplifying the creation of screens for data visualization and control. The HMI also integrates seamlessly with GE’s PLCs and other industrial control systems, reducing integration time and ensuring compatibility. For example, in a water treatment plant, engineers can easily program the HMI to display water level, pH, and flow rate data from the PLC, and create control screens to operate pumps and valves.

Typical application scenarios

Packaging machinery: In packaging lines for food, beverages, or pharmaceuticals, the IC754VGL06CTD ES0622 is used to monitor packaging speed, film tension, and product count. Operators can adjust settings such as bag length or sealing temperature through the touchscreen, and receive real-time alerts if there is a jam or film break. This ensures efficient and consistent packaging operations, reducing waste and improving product quality.

Material handling systems: In warehouses and distribution centers, the HMI is integrated into conveyor systems, automated guided vehicles (AGVs), and sorting machines. It displays the status of each conveyor segment, the location of products, and any system faults. Operators can use the touchscreen to redirect products, start/stop conveyors, or troubleshoot issues, ensuring smooth material flow and timely order fulfillment.

Small-scale manufacturing cells: In manufacturing cells producing small components, such as electronic parts or precision hardware, the HMI monitors machine parameters like spindle speed, feed rate, and tool wear. It allows operators to load different production recipes, view production progress, and receive alerts when maintenance is required. This helps optimize production efficiency and ensure consistent part quality.

Environmental control systems: In facilities such as greenhouses, data centers, or clean rooms, the HMI is used to monitor and control temperature, humidity, air pressure, and ventilation. Operators can adjust setpoints, view historical trends, and receive alerts if environmental conditions deviate from the desired range. This ensures a stable environment, which is critical for plant growth, equipment performance, or product quality.

GE IC754VGL06CTD ES0622

Comparison with related models in the series

Compared with other GE HMI models: GE offers a range of HMI models with different display sizes, from 4-inch to 15-inch or larger. The IC754VGL06CTD ES0622, with its 6-inch display, strikes a balance between size and functionality, making it suitable for applications where space is limited but a larger display than 4-inch is needed. Higher-end models may offer features such as higher resolution displays, more powerful processors, or additional communication interfaces (e.g., wireless connectivity). These models are better suited for complex industrial systems requiring extensive data visualization and advanced control. The IC754VGL06CTD ES0622, however, provides a cost-effective solution for small to medium-sized applications with basic to moderate HMI requirements.

Compared with similar products from other brands: Compared to HMI products from other manufacturers, the IC754VGL06CTD ES0622 benefits from seamless integration with GE’s industrial control ecosystem, including its PLCs and software. This integration simplifies system design and reduces compatibility issues. The HMI’s durable design and wide operating temperature range give it an advantage over some competing products that may be less robust. Additionally, GE’s global service and support network ensure that users can receive timely assistance, which is crucial for minimizing downtime in industrial operations. The user-friendly programming software and intuitive touch interface also make it a popular choice compared to HMIs with more complex programming requirements.

Installation, commissioning and maintenance instructions

Installation preparation: Choose a location for the HMI that is easily visible and accessible to operators, away from direct sunlight, excessive heat sources, and strong vibrations. Ensure the mounting surface is flat and sturdy. Verify that the power supply is 24 V DC and properly grounded, with overvoltage protection in place. Gather necessary tools such as screwdrivers, drill, and mounting hardware. Review the installation manual to understand the mounting dimensions and cutout requirements for panel installation. Prepare communication cables (Ethernet, serial) of appropriate length and type for connecting to PLCs or other devices.

Commissioning process: Mount the HMI securely in the panel cutout using the provided brackets or clips. Connect the power supply cable, ensuring correct polarity. Connect the communication cables to the corresponding interfaces on the HMI and the connected devices (PLC, controller). Power on the HMI and check that it boots up correctly, with no error messages. Use GE’s programming software to download the HMI project, which includes screens, tags, and logic, to the device. Verify that the HMI communicates correctly with the connected devices by checking if real-time data is displayed accurately. Test all touch functions, such as button presses and screen navigation, to ensure they work properly. Simulate alarms and check that they are displayed correctly and can be acknowledged. Document the commissioning process, including configuration settings and test results.

Maintenance suggestions: Regularly clean the touchscreen with a soft, dry cloth to remove dust and fingerprints. Avoid using harsh chemicals or abrasive materials that could damage the screen. Inspect the HMI for loose connections, physical damage, or signs of overheating. Check the power supply and communication cables periodically to ensure they are secure and in good condition. Back up the HMI project regularly to a secure location to prevent loss in case of device failure. Update the HMI’s firmware to the latest version using GE’s software tools to benefit from performance improvements and bug fixes. Monitor the HMI’s operation for any unusual behavior, such as slow response or communication errors. If issues occur, check the communication links, power supply, and connected devices first. Refer to the troubleshooting guide or contact GE’s technical support for assistance if problems persist. Use genuine GE spare parts if replacement is needed to maintain the HMI’s reliability.

Service and guarantee commitment

GE provides a standard warranty for the IC754VGL06CTD ES0622, covering manufacturing defects for a specified period. Their global technical support team is available 24/7 via phone, email, or online platforms to assist with installation, programming, and troubleshooting. Customers can access technical documentation, software updates, and training materials through GE’s online resources. For complex issues, field service engineers can be dispatched to provide on-site support. GE also offers extended warranty options and preventive maintenance services to enhance the HMI’s long-term reliability. Training programs are available to help users master HMI programming, configuration, and maintenance, ensuring optimal performance and minimizing downtime in industrial applications.
