Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200AEADH4A |
| Manufacturer | GE (General Electric) |
| Product Category | Input Terminal Board |
| Series | Mark VI / Mark VIe Control System |
| Input Voltage Range | 100-150 VDC |
| Output Voltage Range | 0-10 VDC |
| Output Current | 0-2 A |
| Efficiency | 85% |
| Isolation Voltage | 500 VDC |
| Overload Protection | 120-150% of rated output current |
| Overvoltage Protection | 115-125% of rated output voltage |
| Operating Temperature Range | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 120 mm × 80 mm × 40 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL |

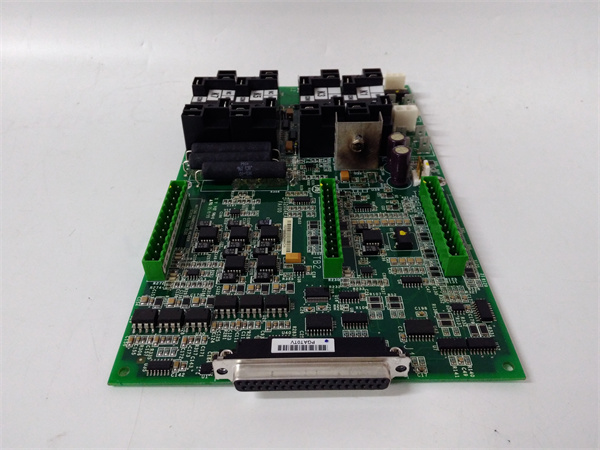

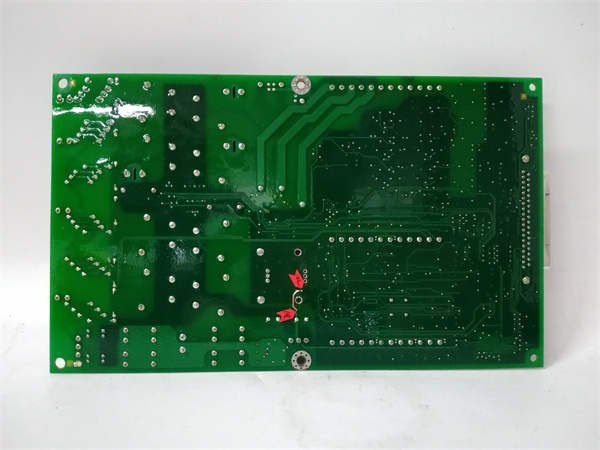

IS200AEADH4A
Product Introduction
The GE IS200AEADH4A is an advanced input terminal board designed for the GE Mark VI and Mark VIe control systems. It is used to manage and condition analog input signals from various sensors and devices in industrial automation applications. This board is crucial for ensuring accurate and reliable data acquisition, which is essential for the safe and efficient operation of turbines and other industrial processes.
Core Advantages and Technical Highlights
High Precision and Stability: The IS200AEADH4A features a 16-bit ADC with ±0.1% accuracy, ensuring reliable data acquisition even in environments with high electromagnetic interference. Its isolated power supply and noise-filtering circuitry further enhance signal integrity, which is critical for applications where measurement errors could lead to operational inefficiencies or safety risks.
Robust Design: The board is engineered to withstand harsh industrial conditions, including extreme temperatures, vibrations, and dust. It is designed for continuous operation in demanding environments, ensuring long-term reliability and minimal maintenance.
Versatile Signal Conditioning: The IS200AEADH4A can handle multiple sensor types, eliminating the need for separate signal conditioners. This versatility simplifies system design, reduces component count, and lowers installation costs, making it an ideal choice for complex industrial setups.
Compatibility with Mark VIe Systems: As part of the Mark VI series, this board is designed to seamlessly integrate with other components of the system, facilitating a cohesive and efficient control environment.

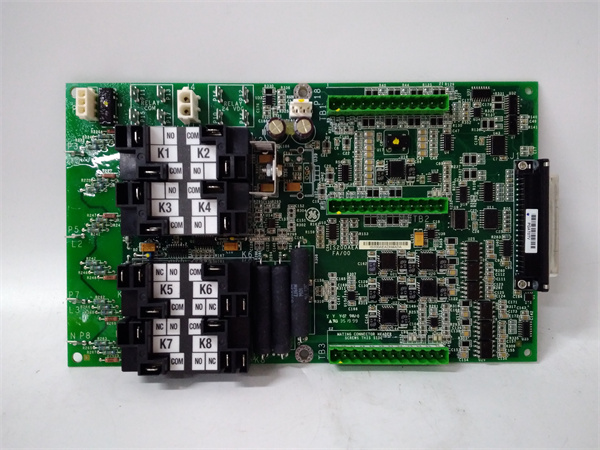

IS200AEADH4A
Typical Application Scenarios
The GE IS200AEADH4A is widely used in various industrial sectors, including:
-
Power Plants: For managing critical control functions such as turbine monitoring and power generation optimization.
-
Manufacturing Plants: For process control and monitoring, enabling consistent production quality.
-
Transportation Sector: Enhancing systems for traffic management and control, improving safety and efficiency.
Related Model Recommendations
-
IS200AEAAH1A: An analog acquisition module that works seamlessly with the IS200AEADH4A, providing additional configuration options.
-
IS200VTURH1B: Another model in the series, offering enhanced features and improved performance.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Check the compatibility of the module with the existing system, especially ensuring it is suitable for the specific GE Mark VI or Mark VIe control system used. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation. If any issues are detected, refer to the troubleshooting guide in the manual for inspection and repair.
Service and Guarantee Commitment
The GE IS200AEADH4A comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE provides technical support and service to assist with installation, troubleshooting, and maintenance, ensuring the stable operation of the industrial automation system.
