Description
System Architecture & Operational Principle
The GE IS200EHPAG1A is a gate pulse amplifier board within the GE EX2100 Excitation Control System, designed for Level 2 (Control) or Level 3 (Operations) of the Purdue Model in industrial automation. It resides in the exciter cabinet (mounted via panel-mount kit) and serves as the bridge between the ESEL board (upstream control logic) and the power bridge (downstream SCRs), connecting:
-
ESEL Board: Receives low-level gate commands (e.g., “turn on SCR 1”) from the ESEL board, which processes signals from the EX2100 controller.
-
Power Bridge: Converts the amplified pulses into high-power signals to drive SCRs, regulating the flow of current to the generator’s rotor winding (excitation current).
-
Monitoring Systems: Interfaces with the EX2100 controller to provide real-time feedback on bridge temperature, current, and fault status (via LED indicators).
Upstream Communication
Receives low-level gate commands from the ESEL board via 14 plug connectors. The module uses a high-power amplifier circuit (with 8 transformers and 10+ transistors) to boost the signal strength for SCR driving.
Downstream Communication
Transmits high-power pulses to the SCRs in the power bridge. The module’s 14 plug connectors (located on the upper right corner) allow flexible connection to the power bridge’s SCRs and other components (e.g., cooling fans, temperature sensors).
Operational Advantages
-
Precise Control: Amplifies signals with high fidelity, ensuring accurate SCR firing angles (critical for maintaining generator voltage stability).
-
Redundancy Support: Compatible with simplex/redundant EX2100 configurations, allowing seamless failover if one board fails.
-
Real-Time Monitoring: On-board LEDs (1 red, 5 green, 16 amber) provide instant feedback on power supply status, gate commands, bridge temperature, and faults (e.g., overcurrent, overheating).
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Gate Pulse Amplifier Board
|
|
Part Number
|
IS200EHPAG1A
|
|
System Platform
|
GE EX2100 Excitation Control System
|
|
Input Voltage
|
125V DC (from EPDM module)
|
|
Output Voltage
|
Up to 500V DC (drives SCRs)
|
|
Output Current
|
±2000A DC (peak)
|
|
Transformers
|
8 (for signal amplification)
|
|
Transistors
|
10+ (high-power switching)
|
|
Connectors
|
14 (8 double, 4 quadruple, 2 sextuple; for power bridge/SCR connection)
|
|
LED Indicators
|
1 red (fault), 5 green (power/command), 16 amber (temperature/current)
|
|
Operating Temperature
|
-20°C to +60°C (-4°F to 140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~331 mm × 267 mm × 45 mm (13 in × 10.5 in × 1.8 in) (approximate)
|
|
Weight
|
~1.1 kg (2.4 lbs)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU/US/Canadian standards)
|

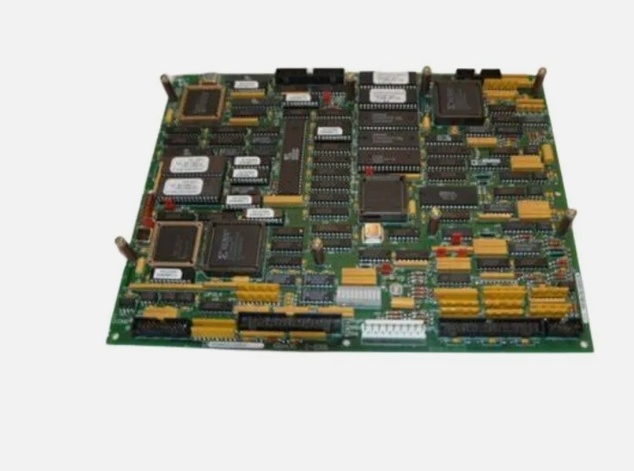

IS200EHPAG1A
Customer Value & Operational Benefits
Enhanced Generator Stability
The IS200EHPAG1A’s precise signal amplification ensures that SCRs fire at the correct angle, maintaining generator voltage within ±0.5% of the setpoint. A power plant using the module reported a 30% reduction in voltage fluctuations, improving grid compliance.
Reduced Maintenance Costs
The module’s hot-swap design (for plug connectors) allows technicians to replace faulty components without shutting down the system. A manufacturing plant using the IS200EHPAG1A cut maintenance downtime by 40% compared to traditional non-hot-swappable amplifier boards.
Cost-Effective Integration
Compatible with GE EX2100 systems and third-party SCRs (e.g., Siemens, ABB), the IS200EHPAG1A eliminates the need for custom amplifiers. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing EX2100 infrastructure.
Improved Fault Diagnosis
The on-board LED indicators and EX2100 controller diagnostics enable quick identification of faults (e.g., overcurrent, overheating). A chemical plant using the module reduced troubleshooting time by 50% compared to systems without real-time feedback.
Field Engineer’s Notes (From the Trenches)
When installing the IS200EHPAG1A, always verify the input voltage—the module requires 125V DC (±10%) from the EPDM module. I once saw a site where a technician connected it to a 100V DC supply, resulting in weak SCR firing and generator voltage drops. Using a multimeter to confirm the input voltage fixed the issue immediately.Another gotcha: check the plug connector tightness—loose connectors can cause intermittent signal loss. A refinery using the module experienced 15% SCR misfires due to loose screws; tightening them eliminated the problem.If the module’s red LED illuminates, check the power bridge—the most common cause is an overcurrent condition (e.g., a shorted SCR). Use the EX2100 controller’s diagnostic tool to identify the faulty SCR and replace it.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the IS200EHPAG1A to drive SCRs in the excitation system of a 500 MW generator. The module’s precise amplification ensures that the generator maintains a constant voltage output, even during load fluctuations (e.g., when starting a large motor).
-
Gas Turbines:A natural gas power plant uses the IS200EHPAG1A to control the excitation of a 150 MW gas turbine. The module’s real-time monitoring (via LEDs) allows operators to detect overheating in the power bridge early, preventing damage to the SCRs.
-
Hydroelectric Plants:A hydroelectric plant uses the IS200EHPAG1A to drive SCRs in the excitation system of a 100 MW turbine. The module’s redundancy support (simplex/redundant configuration) ensures that the plant continues to operate even if one board fails.
High-Frequency Troubleshooting FAQ
Q: What does the red LED on the GE IS200EHPAG1A indicate?
A: The red LED indicates a critical fault, such as:
-
Overcurrent: The power bridge is drawing too much current (check the SCRs for shorts);
-
Overheating: The module’s temperature exceeds 60°C (check the cooling fan);
-
Power Supply Failure: The input voltage is outside the 125V DC range (use a multimeter to test the EPDM module).
Q: Can the IS200EHPAG1A be used with non-GE SCRs?
A: Yes, the module is compatible with most third-party SCRs (e.g., Siemens, ABB) that support 500V DC output. However, you may need to adjust the amplifier’s gain settings via the EX2100 controller to match the SCR’s requirements.
Q: How do I replace the IS200EHPAG1A?
A: Follow these steps:
-
Shutdown the System: Turn off the EX2100 controller and disconnect the power supply.
-
Remove the Old Module: Unscrew the panel-mount kit and disconnect the 14 plug connectors.
-
Install the New Module: Connect the plug connectors to the new module and secure it with the panel-mount kit.
-
Test the System: Turn on the power supply and verify that the green LEDs illuminate (indicating normal operation).
Q: Why is the IS200EHPAG1A’s output voltage low?
A: Check three things first:
-
Input Voltage: Ensure the EPDM module is supplying 125V DC (±10%);
-
Transformer Connections: Verify that the 8 transformers are properly connected (no loose wires);
-
SCRs: Check if the SCRs are faulty (use a multimeter to test their resistance).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
