Description
System Architecture & Operational Principle
The IS200VCMIH2BEE is a communication interface board in the GE Mark VI Speedtronic family, designed to mount in a Mark VI I/O rack (Purdue Level 1). It serves as a protocol bridge, enabling the Mark VI controller to exchange data with external systems such as operator stations, historians, remote I/O, and third-party PLCs.
The board supports dual 10/100 Mbps Ethernet ports for high-speed TCP/IP communication (e.g., Modbus TCP, EGD) and four software-selectable serial ports (RS-232/422/485) for legacy device integration (e.g., RTUs, meters). Internally, it contains protocol processors for Mark VI-specific protocols (e.g., VMEbus Global Data) and standard industrial protocols (Modbus RTU/ASCII, DF1).
The IS200VCMIH2BEE uses 1500 VDC optical isolation on all communication ports to break ground loops and protect the Mark VI controller from field-side transients. It communicates with the host controller via the VME64x backplane using DMA for efficient data transfer. The board is hot-swappable when installed in a supported Mark VI rack, allowing replacement without shutting down the turbine—critical for 24/7 power generation and petrochemical applications.

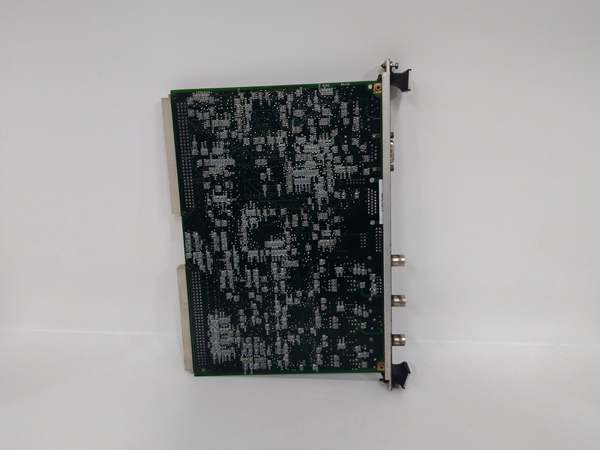

GE IS200VCMIH2BEE
Core Technical Specifications
-
Physical Interface: 2x RJ45 Ethernet ports (front panel), 2x DB9 serial connectors (4 ports via breakout cable), 96-pin VME64x backplane connector (P1/J1)
-
Ethernet Ports: 2x 10/100 Mbps (auto-negotiation, full/half duplex)
-
Serial Ports: 4x software-selectable RS-232/422/485 (up to 115.2 kbps per port)
-
Protocol Support: Modbus RTU/ASCII, Modbus TCP, EGD, DF1, Mark VI proprietary protocols
-
Isolation: 1500 VDC port-to-VMEbus, 500 VDC port-to-port
-
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
-
Storage Temperature: -55°C to +100°C (-67°F to +212°F)
-
Humidity: 5–95% RH non-condensing
-
Backplane Compatibility: Mark VI VME64x rack (P1/J1 interface)
-
Power Consumption: 12 W typical, 18 W max
-
Dimensions: ~240 mm × 30 mm × 180 mm (9.4 in × 1.2 in × 7.1 in)
-
Weight: ~1.1 kg (2.4 lbs)
-
Certifications: UL/cUL, CE, IEEE 1613 (substation environmental compliance)
Customer Value & Operational Benefits
Multi-Protocol Flexibility for Diverse System Integration
The ability to support both modern Ethernet protocols (Modbus TCP, EGD) and legacy serial protocols (RS-232/422/485) allows a single IS200VCMIH2BEE to integrate with a wide range of external systems—from modern SCADA networks to decades-old RTUs. This reduces the need for multiple communication cards, simplifying system design and lowering costs.
Robust Isolation for Harsh Industrial Environments
1500 VDC isolation on all communication ports prevents ground loops and protects the Mark VI controller from voltage spikes caused by lightning, motor startups, or faulty field devices. This is essential in outdoor substations or refinery environments where electrical noise is prevalent.
Hot-Swappable Maintenance Without Downtime
The ability to replace a faulty IS200VCMIH2BEE without powering down the rack is invaluable for continuous process industries. Maintenance can be performed during scheduled outages or routine checks, avoiding costly turbine trips or safety incidents.

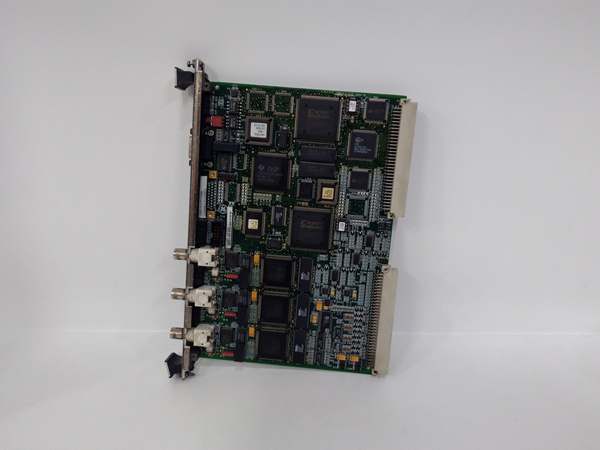

GE IS200VCMIH2BEE
Field Engineer’s Notes (From the Trenches)
When configuring the serial ports on the IS200VCMIH2BEE, always verify the termination settings for RS-485—incorrect termination is a common cause of communication errors. I once spent hours troubleshooting a Modbus RTU link until I realized the last device in the chain wasn’t terminated. Also, use shielded twisted pair cable for Ethernet and serial connections, and ground the shield at the module end only; grounding both ends creates ground loops that induce noise, leading to CRC errors or dropped packets.
Real-World Applications
In a Florida natural gas power plant, the IS200VCMIH2BEE connects a Mark VI turbine controller to a plant-wide SCADA system via Modbus TCP. The dual Ethernet ports provide redundancy, ensuring continuous data flow even if one network path fails. The 1500 VDC isolation prevents interference from nearby high-voltage breakers, ensuring reliable data for the turbine’s safety system.
On a North Sea oil platform, the IS200VCMIH2BEE interfaces with 4 legacy serial RTUs via RS-485, collecting data on pipeline pressure and temperature. The module’s wide operating temperature range (-40°C to +85°C) withstands the platform’s harsh marine environment, and its hot-swap capability allows maintenance during crew changes without interrupting production.
