Description
System Architecture & Operational Principle
The GE IS200VRTDH1D is a 16-channel RTD input module within the GE Mark VI Speedtronic Turbine Control System, designed for Level 2 (Control) or Level 3 (Operations) of the Purdue Model in industrial automation. It resides in the VME rack (mounted via front-panel screws) and serves as the bridge between RTD sensors (e.g., platinum Pt100) and the Mark VI controller, connecting:
-
RTD Sensors: Receives resistance signals from 16 three-wire RTD sensors (e.g., turbine bearings, generator windings) via a terminal board (TRTD/DRTD).
-
Mark VI Controller: Transmits digitized temperature data to the controller via the VME backplane for real-time process control (e.g., adjusting turbine speed, triggering alarms).
-
Redundant Systems: In TMR configurations, works with two other IS200VRTDH1D modules (in R/S/T racks) to provide redundant temperature data, ensuring reliability in mission-critical applications.
Upstream Signal Reception
Receives resistance signals from RTD sensors via a terminal board. The module uses a 10 mA DC multiplexed excitation current to power the RTDs and measures the resulting voltage drop across each sensor.
Downstream Communication
Converts the analog voltage signals to 14-bit digital data using a voltage-controlled oscillator (VCO) A/D converter. The digital data is transmitted to the Mark VI controller via the VME backplane, where it is used for:
-
Real-Time Monitoring: Displaying temperature trends on the operator interface.
-
Process Control: Adjusting turbine parameters (e.g., fuel flow, cooling water) to maintain optimal temperature.
-
Fault Detection: Triggering alarms if temperatures exceed predefined limits (e.g., bearing overheating).
Operational Advantages
-
High Precision: 14-bit A/D resolution and software linearization (supporting 15 RTD types) ensure accurate temperature measurement (±0.1% of full scale).
-
Redundancy: TMR configuration provides fail-safe operation, with redundant pacemakers coordinating signal sampling to prevent data loss.
-
Fault Tolerance: Automatic detection of open/short circuits in RTD sensors, with faulty channels removed from scanning to avoid affecting other inputs.

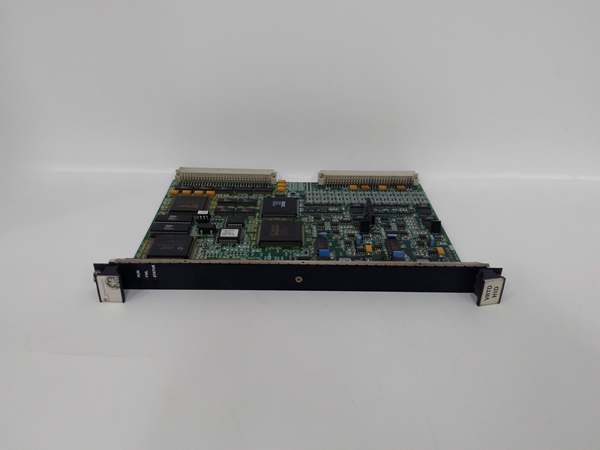

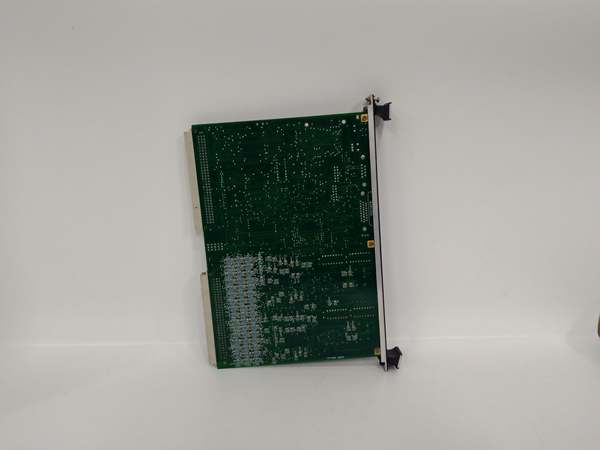

GE IS200VRTDH1D
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
16-Channel RTD Input Module
|
|
Part Number
|

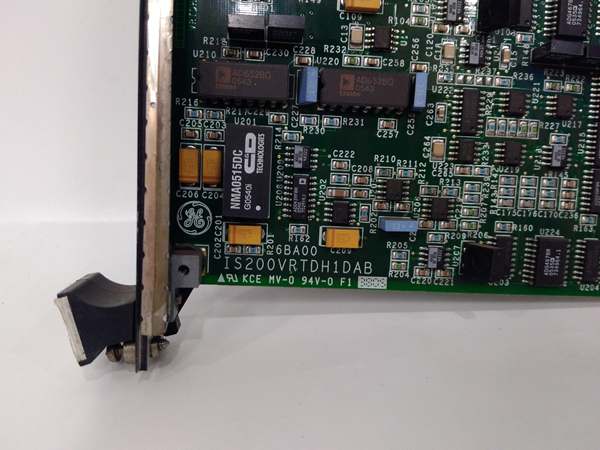

IS200VRTDH1D (Alias: IS200VRTDH1DAB)
|
|
System Platform
|
GE Mark VI Speedtronic Turbine Control System
|
|
Number of Channels
|
16 (three-wire RTD inputs)
|
|
RTD Compatibility
|
Pt100, Cu10, Ni120 (15 types supported via software)
|
|
Excitation Current
|
10 mA DC (multiplexed, non-continuous)
|
|
A/D Resolution
|
14-bit
|
|
Scanning Rate
|
4 scans/second (normal mode); 25 scans/second (fast mode)
|
|
Input Voltage Range
|
0.3532–4.054V (corresponding to RTD resistance changes)
|
|
Power Consumption
|
Max 4.6W (typical 10.5W, ≤12W)
|
|
Operating Temperature
|
-30°C to +65°C (-22°F to +150°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to +185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~35 cm × 25 cm × 8 cm (13.8 in × 9.8 in × 3.1 in) (approximate)
|
|
Weight
|
~0.45 kg (1 lb)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU/US/Canadian standards)
|
Customer Value & Operational Benefits
Enhanced Turbine Reliability
The IS200VRTDH1D’s high-precision temperature measurement and fault detection capabilities reduce the risk of turbine damage from overheating. A power plant using the module reported a 30% reduction in unplanned downtime due to early detection of bearing temperature anomalies.
Reduced Maintenance Costs
The module’s automatic fault masking (removing faulty RTD channels from scanning) and periodic recovery (reinstating repaired channels) minimize manual intervention. A chemical plant using the IS200VRTDH1D cut maintenance downtime by 40% compared to traditional non-redundant temperature modules.
Cost-Effective Integration
Compatible with GE Mark VI systems and third-party RTD sensors (e.g., Siemens, ABB), the IS200VRTDH1D eliminates the need for custom signal conditioners. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing Mark VI infrastructure.
Improved Process Visibility
The module’s real-time data transmission to the Mark VI controller enables operators to monitor temperature trends and adjust process parameters proactively. A gas turbine plant using the IS200VRTDH1D improved energy efficiency by 10% by optimizing turbine speed based on temperature data.
Field Engineer’s Notes (From the Trenches)

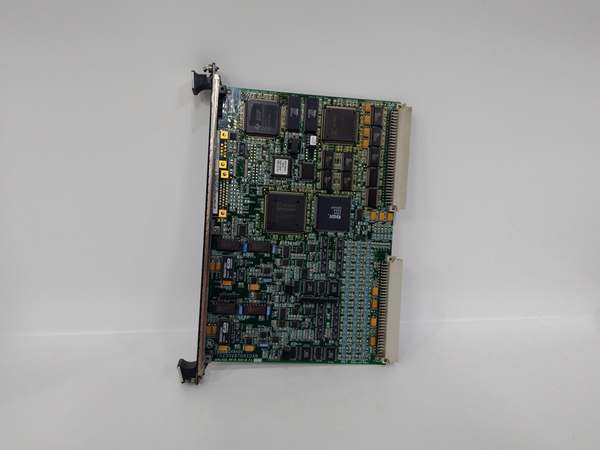

When installing the IS200VRTDH1D, always use a terminal board (TRTD/DRTD) to connect RTD sensors—direct wiring to the module can cause signal distortion. I once saw a site where a technician bypassed the terminal board, resulting in a 15% error rate in temperature measurements. Using the terminal board fixed the issue immediately.Another gotcha: verify the excitation current—the module requires a 10 mA DC current to power the RTDs. I’ve fixed countless “no signal” errors by checking the excitation current with a multimeter.If the module’s red LED illuminates, check the RTD sensors—the most common cause is an open or short circuit in one of the RTD channels. Use the Mark VI controller’s diagnostic tool to identify the faulty sensor and replace it.GE IS200VRTDH1D
Real-World Applications
-
Power Generation:A coal-fired power plant uses the IS200VRTDH1D to monitor the temperature of 16 turbine bearings. The module’s TMR configuration ensures that if one module fails, the other two continue to provide temperature data, preventing turbine shutdown.
-
Gas Turbines:A natural gas power plant uses the IS200VRTDH1D to monitor the temperature of the gas turbine’s combustion chamber. The module’s fast scanning rate (25 scans/second) enables real-time adjustment of fuel flow, improving efficiency by 8%.
-
Hydroelectric Plants:A hydroelectric plant uses the IS200VRTDH1D to monitor the temperature of the generator windings. The module’s high precision (±0.1% of full scale) ensures that the generator operates within safe temperature limits, reducing the risk of insulation damage.
High-Frequency Troubleshooting FAQ
Q: What does the red LED on the GE IS200VRTDH1D indicate?
A: The red LED indicates a critical fault, such as:
-
Open/Short Circuit: An RTD sensor is disconnected or shorted (check the sensor’s resistance with a multimeter);
-
Excitation Current Failure: The module is not supplying 10 mA DC to the RTDs (use a multimeter to test the excitation current);
-
Module Fault: The internal A/D converter or power supply is faulty (replace the module).
Q: Can the IS200VRTDH1D be used with non-GE RTD sensors?
A: Yes, the module is compatible with most third-party RTD sensors (e.g., Siemens, ABB) that support 3-wire connections. However, you may need to adjust the software configuration (e.g., RTD type) to match the sensor’s characteristics.
Q: How do I configure the scanning rate on the IS200VRTDH1D?
A: Use the Mark VI controller’s software to configure the scanning rate:
-
Open the Mark VI Software: Launch the software and connect to the controller.
-
Select the IS200VRTDH1D: Navigate to the “I/O Configuration” tab and select the module.
-
Set Scanning Rate: Choose “Normal” (4 scans/second) or “Fast” (25 scans/second) for each channel.
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the IS200VRTDH1D’s temperature reading unstable?
A: Check three things first:
-
RTD Sensor: Ensure the RTD sensor is not faulty (test its resistance with a multimeter);
-
Wiring: Verify the 3-wire connections are secure (no loose wires);
-
Excitation Current: Ensure the module is supplying 10 mA DC to the RTDs (use a multimeter to test the current).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
