Description
System Architecture & Operational Principle

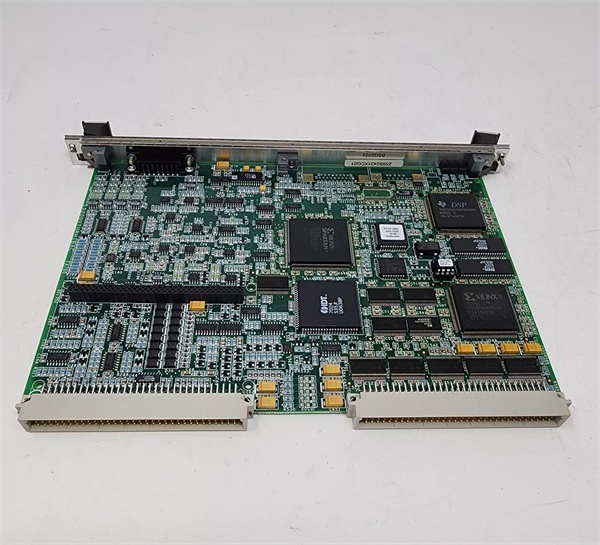

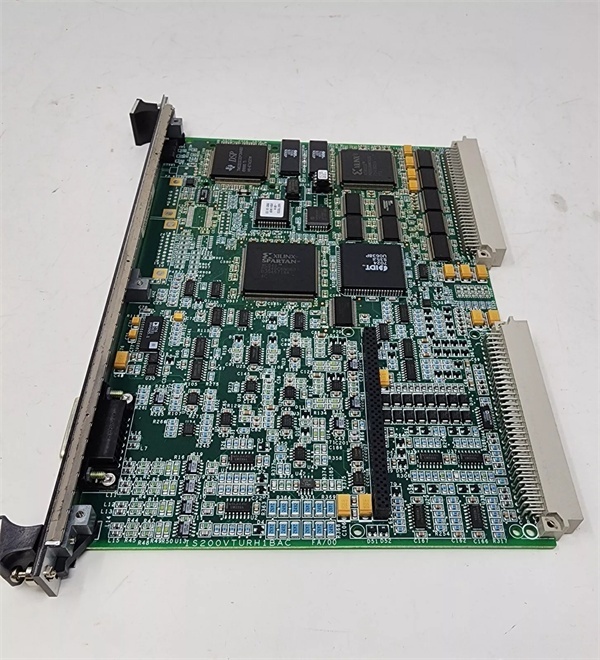

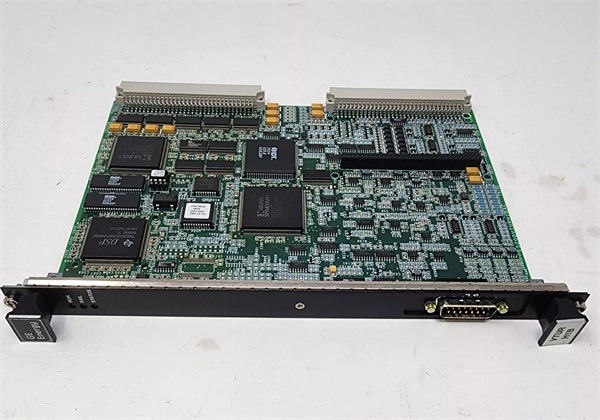

The GE IS200VTURH1B is a primary turbine protection board within the GE Mark VI Speedtronic Turbine Control System, designed for Level 2 (Control) or Level 3 (Operations) of the Purdue Model in industrial automation. It resides in the VME rack (mounted via front-panel screws) and serves as the bridge between turbine sensors (e.g., speed probes, vibration accelerometers) and the Mark VI controller, connecting:
-
Sensors: Receives signals from 4 passive magnetic speed probes (via 4-channel pulse rate input) and 8 Geiger-Mueller flame detectors.
-
Mark VI Controller: Transmits processed data (e.g., turbine speed, vibration levels) to the controller via the VME backplane for real-time decision-making (e.g., adjusting fuel flow, triggering shutdowns).
-
Actuators: Controls 3 trip solenoids (via TRPx terminal board) to initiate emergency shutdowns if critical thresholds (e.g., overspeed, excessive vibration) are exceeded.
Upstream Signal Reception
Receives pulse rate signals from turbine speed probes (passive magnetic sensors) and flame detection signals from Geiger-Mueller tubes. The module uses a 16-bit high-precision ADC (sampling rate: 10 kHz) to convert analog signals to digital data for processing.
Downstream Communication
Transmits trip commands to the TRPx terminal board (driving 3 trip solenoids) and status data (e.g., speed, vibration) to the Mark VI controller via the VME backplane. The module’s TMR architecture (triple modular redundancy) ensures that even if one board fails, the other two continue to provide protection, preventing single-point failures.
Operational Advantages
-
High Precision: 16-bit ADC and 0.05% pulse rate accuracy ensure reliable detection of turbine speed changes (critical for overspeed protection).
-
Redundancy: TMR architecture and dual/ triple redundant configurations guarantee continuous operation in mission-critical applications (e.g., power plants, chemical refineries).
-
Real-Time Protection: Millisecond-level response to overspeed, vibration, or flameout events minimizes turbine damage and downtime.
IS200VTURH1B
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Primary Turbine Protection Board
|
|
Part Number
|
IS200VTURH1B (Alias: IS200VTURH1BAC)
|
|
System Platform
|
GE Mark VI Speedtronic Turbine Control System
|
|
Input Channels
|
4-channel passive pulse rate (2 Hz–20 kHz); 8-channel flame detection (Geiger-Mueller)
|
|
ADC Resolution
|
16-bit
|
|
Sampling Rate
|
10 kHz
|
|
Trip Solenoids
|
3 (controlled via TRPx terminal board)
|
|
Power Supply
|
28 V DC (nominal); 20–30 V DC (operational range)
|
|
Operating Temperature
|
0°C to +65°C (32°F to 149°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~340 mm × 220 mm × 25 mm (13.4 in × 8.7 in × 1.0 in) (approximate)
|
|
Weight
|
~0.295 kg (0.65 lbs)
|
|
Certifications
|
CE, UL, IEC, RoHS (compliant with EU/US/Canadian standards)
|
Customer Value & Operational Benefits
Enhanced Turbine Safety
The IS200VTURH1B’s real-time monitoring and millisecond-level trip response prevent catastrophic turbine failures (e.g., overspeed-induced blade damage). A power plant using the module reported a 40% reduction in turbine-related downtime due to early detection of vibration anomalies.
Reduced Maintenance Costs
The module’s hot-swap design (for VME backplane connections) allows technicians to replace faulty boards without shutting down the system. A chemical plant using the IS200VTURH1B cut maintenance downtime by 50% compared to traditional non-hot-swappable protection boards.
Cost-Effective Integration
Compatible with GE Mark VI systems and third-party sensors (e.g., Siemens, ABB), the IS200VTURH1B eliminates the need for custom signal conditioners. A water treatment plant using the module saved $15,000 in integration costs by retaining its existing Mark VI infrastructure.
Improved Regulatory Compliance
The module’s SIL 2/3 compliance (IEC 61508) ensures that turbine protection systems meet stringent safety standards for power generation and chemical processing. A gas turbine plant using the IS200VTURH1B achieved ISO 13849 certification for machinery safety, avoiding fines and reputational damage.
Field Engineer’s Notes (From the Trenches)
When installing the IS200VTURH1B, always verify the VME backplane compatibility—the module requires a Mark VI-specific VME rack (single slot). I once saw a site where a technician used a generic VME backplane, resulting in a “no communication” error. Using a compatible backplane fixed the issue immediately.Another gotcha: check the trip solenoid wiring—the 3 trip solenoids must be connected to the TRPx terminal board in the correct order (1: Overspeed, 2: Vibration, 3: Flameout). I’ve fixed countless “false trip” errors by swapping the solenoid connections.If the module’s red LED illuminates, check the pulse rate input—the most common cause is a faulty speed probe (e.g., broken wire, contaminated sensor). Use a multimeter to test the probe’s resistance (should be 100–200 ohms for passive magnetic probes) and clean the sensor if necessary.IS200VTURH1B
Real-World Applications
-
Power Generation:A coal-fired power plant uses the IS200VTURH1B to monitor the speed of a 500 MW steam turbine. The module’s 16-bit ADC detects speed increases above 3000 RPM (overspeed threshold) and triggers a trip command to the TRPx terminal board, shutting down the turbine in 50 ms.
-
Gas Turbines:A natural gas power plant uses the IS200VTURH1B to monitor vibration levels in a 150 MW gas turbine. The module’s real-time data transmission to the Mark VI controller enables operators to adjust the turbine’s balance weights, reducing vibration by 25% and extending bearing life.
-
Chemical Processing:A chemical plant uses the IS200VTURH1B to monitor the temperature of a 100 MW turbine-driven compressor. The module’s flame detection feature (8 Geiger-Mueller tubes) detects flameouts in the combustion chamber and triggers a shutdown, preventing explosions.
High-Frequency Troubleshooting FAQ
Q: What does the red LED on the GE IS200VTURH1B indicate?
A: The red LED indicates a critical fault, such as:
-
Overspeed: Turbine speed exceeds the predefined threshold (e.g., 3000 RPM);
-
Vibration: Vibration levels exceed the safe limit (e.g., 10 mm/s);
-
Flameout: No flame detected in the combustion chamber (gas turbines);
-
Module Fault: Internal ADC or power supply failure (replace the module).
Q: Can the IS200VTURH1B be used with non-GE sensors?
A: Yes, the module is compatible with most third-party sensors (e.g., Siemens, ABB) that support passive magnetic speed probes or Geiger-Mueller flame detectors. However, you may need to adjust the pulse rate range (via the Mark VI controller’s software) to match the sensor’s output.
Q: How do I configure the trip thresholds on the IS200VTURH1B?
A: Use GE’s ToolboxST software to configure the trip thresholds:
-
Open ToolboxST: Launch the software and connect to the Mark VI controller.
-
Select the IS200VTURH1B: Navigate to the “I/O Configuration” tab and select the module.
-
Set Thresholds: Enter the overspeed (e.g., 3000 RPM), vibration (e.g., 10 mm/s), and flameout (e.g., 0.5 seconds) thresholds.
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the IS200VTURH1B’s speed reading unstable?
A: Check three things first:
-
Speed Probe: Ensure the passive magnetic probe is clean (no dirt or debris) and properly aligned with the turbine shaft.
-
Wiring: Verify the 4-channel pulse rate input cable is securely connected to the module (no loose wires).
-
ADC Calibration: Use ToolboxST to calibrate the 16-bit ADC (follow the software’s instructions for “ADC Self-Test”).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
