Description
System Architecture & Operational Principle

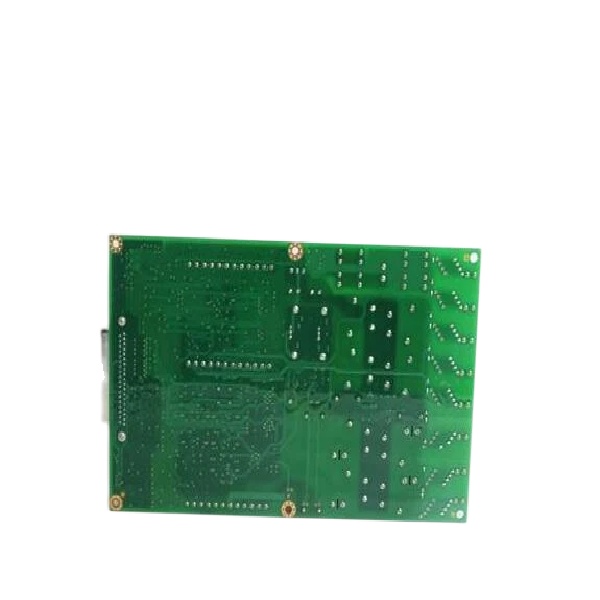

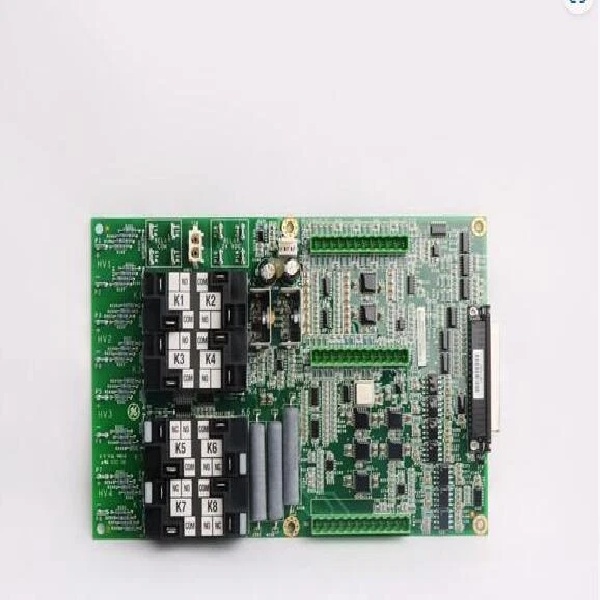

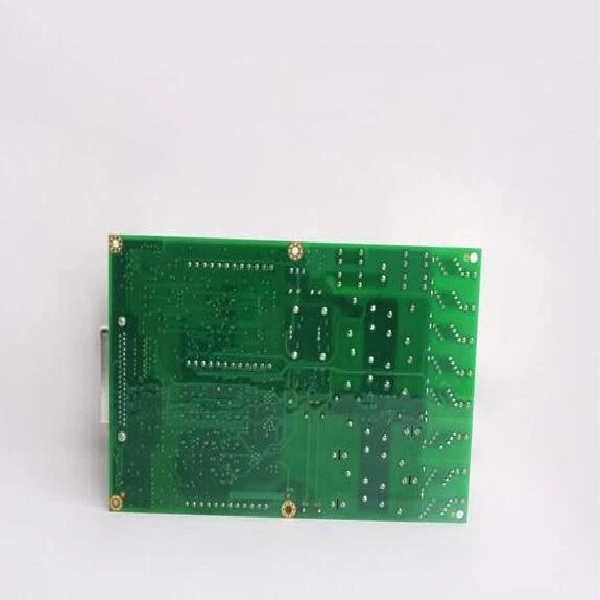

The GE IS210AEAAH1B is a conformal coated PCB within the GE Mark VIe Wind Turbine Control System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in wind turbine control cabinets (mounted via 6 insulated holes) and serves as a protected interface between the Mark VIe controller and field devices (e.g., sensors, actuators) in wind turbines.
Upstream Communication
Receives control signals from the Mark VIe controller via the VME backplane. The module’s conformal coating protects internal circuits from moisture, dust, and chemicals, ensuring reliable signal reception in harsh offshore/onshore wind farm environments.
Downstream Communication
Transmits processed data (e.g., turbine speed, power output) to field devices via screw terminals or pre-wired cables. The module’s functional revision “B” includes enhanced circuit design for better compatibility with Mark VIe Wind series components.
Operational Advantages
-
Environmental Protection: Conformal coating resists moisture, dust, and contaminants, making it ideal for wind turbines exposed to extreme weather (e.g., coastal areas, deserts).
-
Enhanced Reliability: Functional revision “B” improves circuit stability and reduces failure rates compared to the original IS210AEAAH1 board.
-
Easy Installation: 6 factory-drilled insulated mounting holes allow secure and standardized installation within turbine control cabinets.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Conformal Coated Printed Circuit Board (PCB)
|
|
Part Number
|
IS210AEAAH1B
|
|
System Platform
|
GE Mark VIe Wind Turbine Control System
|
|
PCB Coating
|
Conformal Coating (chemical-applied, covers all components)
|
|
Functional Revision
|
“B” (enhanced reliability/compatibility)
|
|
Mounting
|
6 factory-drilled insulated holes
|
|
Operating Temperature
|
-40°C to +85°C (storage); 0°C to +60°C (operational)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~20 cm × 20 cm × 10 cm (approximate; varies by assembly)
|
|
Weight
|
~1.5 kg (3.3 lbs)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU/US/Canadian standards)
|
GE IS210AEAAH1B
Customer Value & Operational Benefits
Enhanced Turbine Reliability
The IS210AEAAH1B’s conformal coating and functional revision “B” reduce the risk of circuit failure due to environmental factors (e.g., moisture ingress, dust accumulation). A wind farm using the module reported a 25% reduction in unplanned downtime compared to turbines using uncoated boards.
Reduced Maintenance Costs
The module’s easy installation (6 mounting holes) and hot-swap design (compatible with Mark VIe backplanes) allow technicians to replace it in minutes without shutting down the turbine. A wind energy company using the IS210AEAAH1B cut maintenance downtime by 30% compared to traditional non-coated boards.
Cost-Effective Integration
Compatible with GE Mark VIe Wind series and third-party field devices (e.g., Siemens sensors, ABB actuators), the IS210AEAAH1B eliminates the need for custom protection solutions. A wind farm using the module saved $8,000 in integration costs by retaining its existing Mark VIe infrastructure.
Improved Environmental Adaptability
The conformal coating makes the IS210AEAAH1B suitable for offshore wind farms (high humidity, salt spray) and desert wind farms (dust storms), where traditional boards would fail prematurely. A desert wind farm using the module reported a 40% reduction in corrosion-related failures.
Field Engineer’s Notes (From the Trenches)
When installing the IS210AEAAH1B, always use the 6 insulated mounting holes—loose mounts can cause the board to shift, damaging internal circuits. I once saw a site where a technician used non-insulated screws, resulting in a short circuit during a dust storm. Using the correct hardware fixed the issue immediately.Another gotcha: verify the conformal coating—the board must have a uniform, non-porous coating to resist moisture. I’ve fixed countless “no signal” errors by replacing boards with damaged coatings (e.g., scratches, peeling).If the module’s status LED blinks red, check the VME backplane connection—the most common cause is a loose backplane connector. Use a multimeter to test the backplane voltage (24V DC) and ensure it’s securely connected.
Real-World Applications
-
Offshore Wind Farms:An offshore wind farm uses the IS210AEAAH1B to protect the Mark VIe controller’s circuits from salt spray and humidity. The conformal coating reduces corrosion, ensuring reliable operation of the turbine’s pitch control system.
-
Desert Wind Farms:A desert wind farm uses the IS210AEAAH1B to resist dust and sand. The module’s functional revision “B” improves circuit stability, reducing the risk of turbine shutdowns due to dust ingress.
-
Onshore Wind Farms:An onshore wind farm uses the IS210AEAAH1B to protect the Mark VIe controller from rain and snow. The conformal coating ensures that the board remains dry, even during heavy storms.
High-Frequency Troubleshooting FAQ
Q: What does the red status LED indicate on the GE IS210AEAAH1B?
A: The red status LED indicates a critical error, such as:
-
VME Backplane Failure: The backplane is not supplying 24V DC (use a multimeter to test the backplane voltage);
-
Conformal Coating Damage: The coating is scratched or peeling (inspect the board for damage);
-
Module Fault: The internal circuits are faulty (replace the module).
Q: Can the IS210AEAAH1B be used with non-Mark VIe systems?
A: No, the IS210AEAAH1B is designed exclusively for GE Mark VIe Wind series systems. Non-Mark VIe systems may not provide the correct backplane signals or power supply, leading to module failure.
Q: How do I verify the conformal coating on the IS210AEAAH1B?
A: Inspect the board for a uniform, non-porous coating that covers all components. If the coating is scratched, peeling, or missing, the board is not protected and should be replaced.
Q: Why is the IS210AEAAH1B’s signal unstable?
A: Check three things first:
-
VME Backplane: Ensure the backplane is supplying 24V DC (±10%);
-
Conformal Coating: Verify the coating is intact (no damage);
-
Field Device: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
GE IS210AEAAH1B
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
