GE IS220UCSAH1A

Product Introduction

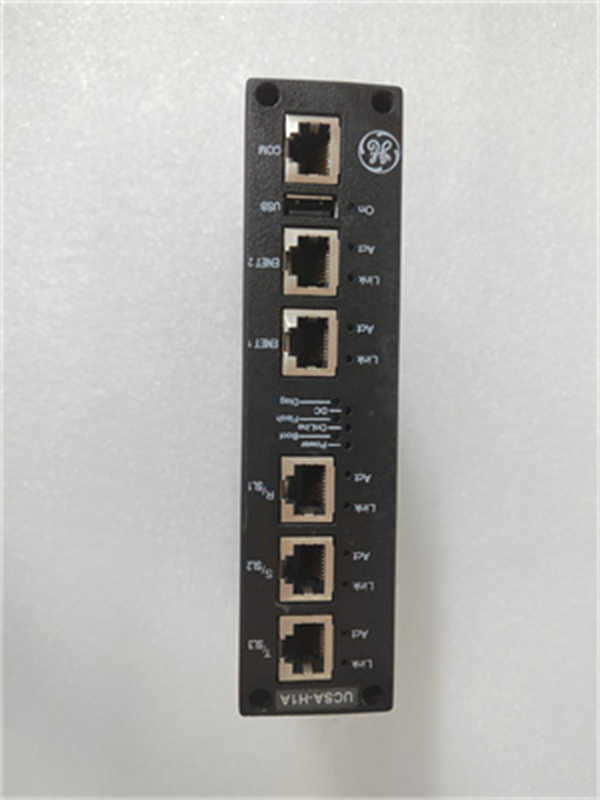

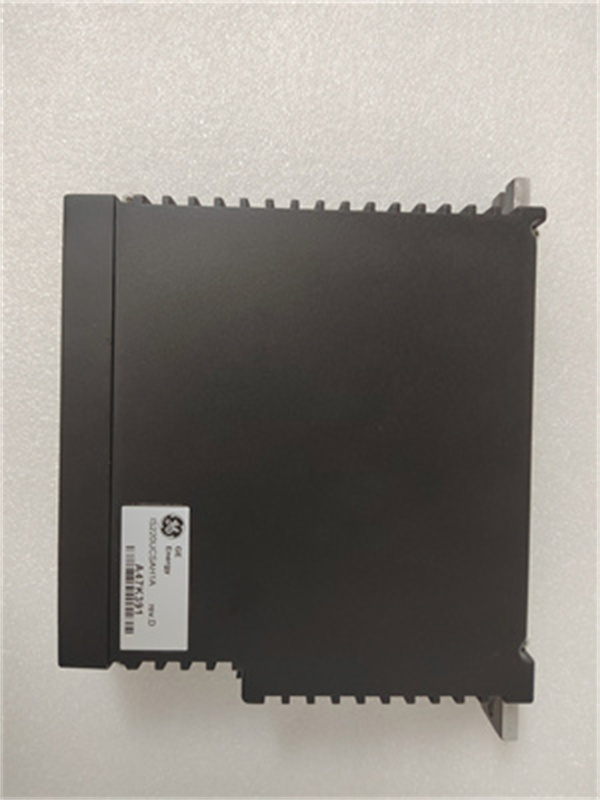

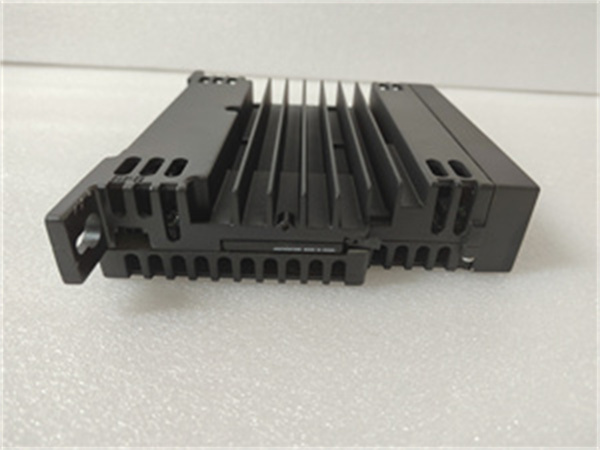

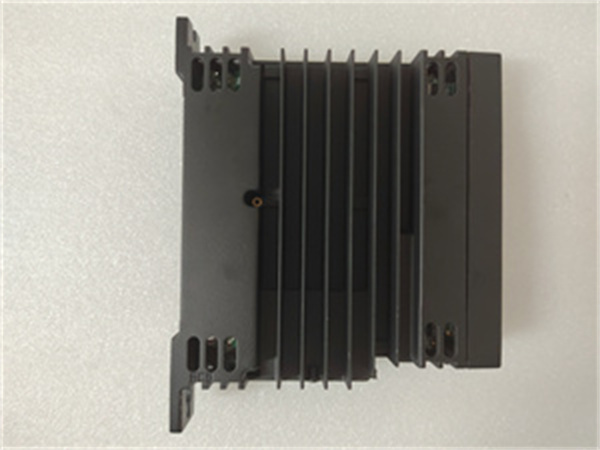

The **GE IS220UCSAH1A** is a high-precision isolated analog input module under GE’s classic Mark VI control system series, specifically engineered to accurately acquire and transmit continuous analog process signals from field sensors to the Mark VI controller. As a core front-end data acquisition component in industrial automation, it serves as the critical link between on-site devices (such as pressure transmitters, temperature sensors, and flow meters) and the digital control layer, ensuring reliable conversion of real-world physical variables into processable digital data.

In industrial control scenarios where precise process monitoring is essential, the **GE IS220UCSAH1A** excels in capturing subtle changes in analog signals even in harsh operational environments. Its configurable input signal type enhances flexibility in sensor integration, while the high accuracy, resolution, and isolation rating guarantee signal integrity and measurement reliability. By providing dependable analog input data, the **GE IS220UCSAH1A** lays a solid foundation for process regulation, equipment health monitoring, and quality control across industries like power generation, petrochemicals, and precision manufacturing.

Core advantages and technical highlights

High Precision & Resolution: The **GE IS220UCSAH1A** features a 16-bit analog-to-digital converter (ADC) and achieves an accuracy of ±0.1% FS, enabling it to detect even minor fluctuations in process signals—such as subtle pressure changes in chemical reactors or slight temperature variations in turbine bearings. This level of precision ensures the Mark VI controller can make accurate control adjustments, which is vital for maintaining stable production processes and product quality.

Flexible Signal Compatibility: Supporting both 4-20mA DC current signals and 0-10V DC voltage signals (configurable per channel), the **GE IS220UCSAH1A** seamlessly connects to a wide range of field sensors without the need for additional signal converters. The dedicated input impedance (250Ω for current, ≥10MΩ for voltage) minimizes loading effects on sensor signals, preserving measurement accuracy even for long-distance sensor installations.

Superior Isolation & Anti-Interference: Equipped with a 2kVrms channel-to-channel isolation rating, the **GE IS220UCSAH1A** effectively prevents signal crosstalk between channels and shields the module from damage caused by ground loops, voltage transients, and electromagnetic interference. This isolation design not only ensures the accuracy of acquired analog signals but also protects the entire Mark VI control system from electrical disturbances, making it suitable for deployment in high-noise environments like power plant switchyards and steel mills.

Seamless Mark VI Integration & Diagnostics: The **GE IS220UCSAH1A** is fully compatible with the Mark VI control system chassis, supporting hot-swapping for quick module replacement without shutting down the entire system—minimizing operational downtime. It features front-panel LED status indicators for each input channel, providing clear visual feedback on signal acquisition status. Built-in self-diagnostic functions monitor channel health and wiring integrity (e.g., open circuits, short circuits), sending real-time fault alerts to the controller for proactive maintenance.

Typical application scenarios

In thermal power plants, the **GE IS220UCSAH1A** is a key component in the Mark VI turbine control system. It acquires analog signals from turbine bearing temperature sensors, exhaust gas pressure transmitters, and lubricating oil viscosity meters. By converting these continuous variables into digital data, it enables the controller to monitor turbine operating conditions in real time. When abnormal temperature or pressure values are detected, the controller adjusts turbine parameters or triggers shutdown procedures to prevent equipment damage. Its high isolation rating protects against electrical noise from turbine generators and auxiliary equipment.

In petrochemical refineries, the **GE IS220UCSAH1A** is used to monitor critical process variables in distillation columns and reaction vessels. It connects to 4-20mA DC pressure transmitters and 0-10V DC level sensors, transmitting data on crude oil flow rates, column pressure, and liquid levels to the Mark VI distributed control system. This data is used to regulate valve openings and pump speeds, maintaining optimal refining conditions. The module’s rugged design and wide operating temperature range allow it to withstand the harsh refinery environment with high temperatures, chemical vapors, and electrical interference.

Related model recommendations

**GE IS220UCSOH1A**: A Mark VI isolated analog output module that forms a complete control loop with the **GE IS220UCSAH1A**, executing control commands based on acquired analog data.

**GE IS220PBIH1A**: A Mark VI terminal board that provides wiring interfaces for sensors connected to the **GE IS220UCSAH1A**, simplifying field wiring termination.

**GE IS220UCSAH2A**: An upgraded version of the **GE IS220UCSAH1A** with 16 analog input channels, designed for large-scale analog data acquisition systems.

**GE IS220YDIAS1A**: A Mark VI digital input module that complements the **GE IS220UCSAH1A** by acquiring discrete status signals alongside continuous process data.

**GE IS220PCAAH1A**: A Mark VI power supply module that provides stable 24V DC power to the **GE IS220UCSAH1A** and other Mark VI I/O modules.

**GE IS220TCICH1A**: A Mark VI communication module that transmits analog data from the **GE IS220UCSAH1A** to upper-level SCADA systems.

**GE IS220TSPRH1A**: A Mark VI signal processing module that conditions weak analog signals in high-noise environments before input to the **GE IS220UCSAH1A**.

GE IS220UCSAH1A

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the **GE IS220UCSAH1A**, power off the Mark VI chassis and verify slot compatibility. Required tools include a Phillips screwdriver, ESD wristband, and precision multimeter. Clean the module and chassis slot to remove dust or debris. Align the module with the chassis guide rails, insert firmly until it clicks into place, and fasten the front-panel screws. Use shielded twisted-pair cables for sensor wiring, connecting the cable shield to the cabinet ground. Configure input signal type (current/voltage) via chassis jumpers, and label wires clearly to match channel numbers.

Maintenance suggestions: Conduct monthly visual inspections of the **GE IS220UCSAH1A** to check LED indicators, loose wiring, or abnormal heating. Clean the module surface and chassis slot quarterly using compressed air (max pressure 0.5MPa) to remove dust buildup. Calibrate the module annually using a standard signal generator to maintain accuracy, following the Mark VI system manual. If signal drift or a fault is indicated, first check the sensor and wiring, then use the Mark VI diagnostic software to isolate the issue. Replace damaged modules with genuine GE spares to ensure compatibility and maintain system safety.

Service and guarantee commitment

The **GE IS220UCSAH1A** comes with a 12-month manufacturer’s warranty covering material and workmanship defects. GE’s global technical support team provides 24/7 assistance via email, online portals, and phone, offering installation guides, calibration procedures, and troubleshooting solutions. For on-site service needs, certified GE engineers can be dispatched to customer locations within 48 hours in major industrial regions. Extended warranty plans up to 3 years and customized maintenance services are available to maximize the module’s operational lifespan. GE is committed to delivering high-reliability, precision analog input modules to support customers’ critical Mark VI control system requirements.
