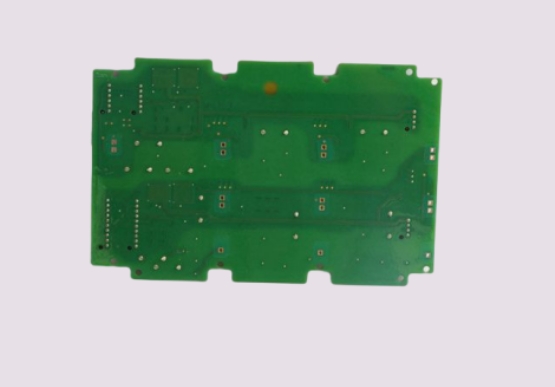

GE IS400JPDHG1ABB IS410JPDHG1A

Product Introduction

The GE IS400JPDHG1ABB and IS410JPDHG1A are advanced process I/O modules designed for seamless integration with GE’s Mark VIe Distributed Control System. As key components in industrial automation, these modules serve as the interface between field devices (such as sensors and actuators) and the central control system, enabling precise data acquisition and control signal transmission.

Both the IS400JPDHG1ABB and IS410JPDHG1A feature 8 configurable channels that can be set up as analog inputs or outputs, supporting a wide range of signal types including ±10V, 0-20mA, and 4-20mA. This flexibility allows them to interface with various industrial sensors (e.g., temperature, pressure, flow) and actuators (e.g., control valves, variable speed drives). Their high-resolution 16-bit conversion ensures accurate measurement and control, making them ideal for critical process applications in power generation, oil & gas, and manufacturing.

While sharing core functionality, the IS400JPDHG1ABB and IS410JPDHG1A may differ in specific firmware optimizations or component tolerances, tailoring them to slightly different operational nuances within the Mark VIe ecosystem. Both modules leverage dual-port Ethernet for reliable communication, ensuring continuous data flow even in the event of a network fault.

Core Advantages and Technical Highlights

Flexible channel configuration: Each channel on the IS400JPDHG1ABB and IS410JPDHG1A can be independently configured as input or output, eliminating the need for separate modules for different signal types. In a chemical processing plant, for example, some channels can monitor pH levels (4-20mA input) while others control dosing pumps (4-20mA output), simplifying system design and reducing hardware costs.

Robust isolation: With 2.5kVrms channel-to-channel isolation and 5kVrms channel-to-backplane isolation, these modules protect the control system from electrical noise and ground loops common in industrial environments. In a steel mill, where high-voltage equipment generates significant interference, the IS400JPDHG1ABB and IS410JPDHG1A ensure accurate signal transmission from temperature sensors near furnaces.

Redundant communication: Dual-port Ethernet enables ring topology networking, a critical feature for mission-critical applications like power plant turbine control. If one network path fails, the IS400JPDHG1ABB and IS410JPDHG1A automatically switch to the alternate path, preventing data loss and maintaining control continuity. This redundancy is essential for avoiding unplanned shutdowns in facilities where downtime costs run into thousands of dollars per minute.

High accuracy and stability: The 16-bit resolution and tight component tolerances of the IS400JPDHG1ABB and IS410JPDHG1A ensure measurement errors below 0.1% of full scale. In a natural gas processing plant, this level of accuracy is vital for controlling pressure in pipeline systems, where small deviations can lead to safety risks or product quality issues. Long-term drift is minimized through advanced calibration algorithms, reducing maintenance requirements.

Typical Application Scenarios

Power generation: In combined cycle power plants, the IS400JPDHG1ABB and IS410JPDHG1A monitor and control key parameters of gas turbines and heat recovery steam generators (HRSGs). They measure exhaust gas temperatures (via thermocouple transmitters), steam pressure, and fuel flow rates, while adjusting fuel valves and damper positions to optimize efficiency. The modules’ ATEX certification allows safe operation in areas with potentially explosive gas mixtures, such as around fuel handling systems.

Oil and gas production: On offshore platforms, the IS400JPDHG1ABB and IS410JPDHG1A integrate with subsea sensors to monitor wellhead pressure and flow rates (analog inputs), while controlling choke valves (analog outputs) to regulate production. Their rugged design withstands the harsh marine environment, including high humidity and vibration, ensuring reliable operation in remote locations where maintenance access is limited.

Pulp and paper manufacturing: In paper mills, these modules control the consistency of pulp slurries by adjusting chemical additive flows (outputs) based on real-time concentration measurements (inputs). The IS400JPDHG1ABB and IS410JPDHG1A coordinate with drying section sensors to maintain precise moisture levels, directly impacting paper quality. Their ability to handle both input and output signals simplifies the control loop, reducing latency between measurement and adjustment.

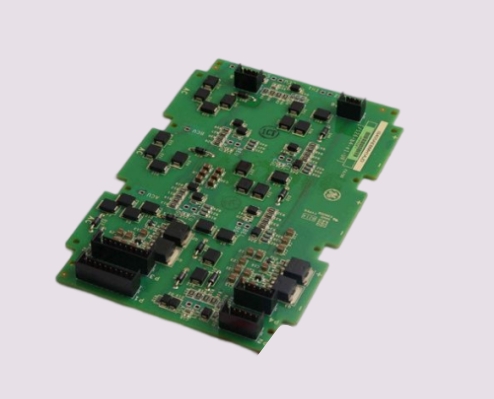

GE IS400JPDHG1ABB IS410JPDHG1A

Related Model Recommendations

GE IS200JPDHG1A: A 4-channel analog I/O module in the Mark VIe series, suitable for smaller-scale applications where fewer channels are needed. It works alongside the IS400JPDHG1ABB and IS410JPDHG1A in distributed systems, handling localized control tasks.

GE IS400TPSHG1A: A thermocouple/millivolt input module that complements the IS400JPDHG1ABB and IS410JPDHG1A by specializing in high-temperature measurements (e.g., in furnace control), expanding the system’s sensing capabilities.

GE IS400VCRHG1A: A digital I/O module that pairs with analog modules to handle discrete signals (e.g., limit switches, solenoids) in mixed-signal systems. In a water treatment plant, it can work with the IS410JPDHG1A to control valve actuators (analog) and monitor valve position switches (digital).

GE IC698CPE030: The CPU module for the Mark VIe system, which processes data from the IS400JPDHG1ABB and IS410JPDHG1A to execute control logic. It coordinates all I/O modules, ensuring synchronized operation across the automation system.

GE IS400SERHG1A: A serial communication module that enables the IS400JPDHG1ABB and IS410JPDHG1A to interface with legacy devices using RS-485, facilitating retrofits of older systems without replacing all field equipment.

GE IS400ETHHG1A: An Ethernet switch module that enhances network redundancy for the IS400JPDHG1ABB and IS410JPDHG1A, supporting larger ring topologies in sprawling industrial facilities like refineries.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing the IS400JPDHG1ABB or IS410JPDHG1A, ensure the Mark VIe rack is powered down and grounded. Verify the 24VDC power supply meets the ±10% tolerance and is protected by a 1A circuit breaker. Use ESD-safe tools and wear anti-static wristbands to prevent damage to sensitive components. Check that the rack backplane is clean and free of debris, and confirm the module’s keying aligns with the slot (to prevent incorrect insertion). Label all field wiring according to the system diagram to avoid cross-connections during termination.

Commissioning and maintenance: After installation, power up the rack and use GE’s ToolboxST software to configure channel types (input/output) and signal ranges for the IS400JPDHG1ABB or IS410JPDHG1A. Calibrate each channel using a precision signal generator, recording offsets in the system database. During operation, perform quarterly visual inspections to check for loose connectors or dust accumulation—clean vents with compressed air. Use the module’s built-in diagnostics (accessible via ToolboxST) to monitor for drift or channel faults; replace modules if errors exceed 0.2% of full scale. Back up configuration files monthly, and store spare modules in ESD packaging in a dry environment (30-60% humidity).

Service and Guarantee Commitment

GE provides a 36-month warranty for the IS400JPDHG1ABB and IS410JPDHG1A, covering manufacturing defects and component failures under normal operating conditions. The company’s global technical support team offers 24/7 assistance via phone, email, and secure remote access, with on-site service available in 48 hours for critical failures in major industrial regions.

Customers gain access to firmware updates, calibration procedures, and troubleshooting guides through GE’s Power Services Portal. Training courses (online and in-person) are available to certify technicians in installation, configuration, and maintenance of the IS400JPDHG1ABB and IS410JPDHG1A. For mission-critical applications, GE offers extended warranty plans including preventive maintenance visits, ensuring these modules deliver reliable performance in the most demanding industrial environments.
