GE IS410JPDHG1A

Description

Detailed Parameter Table

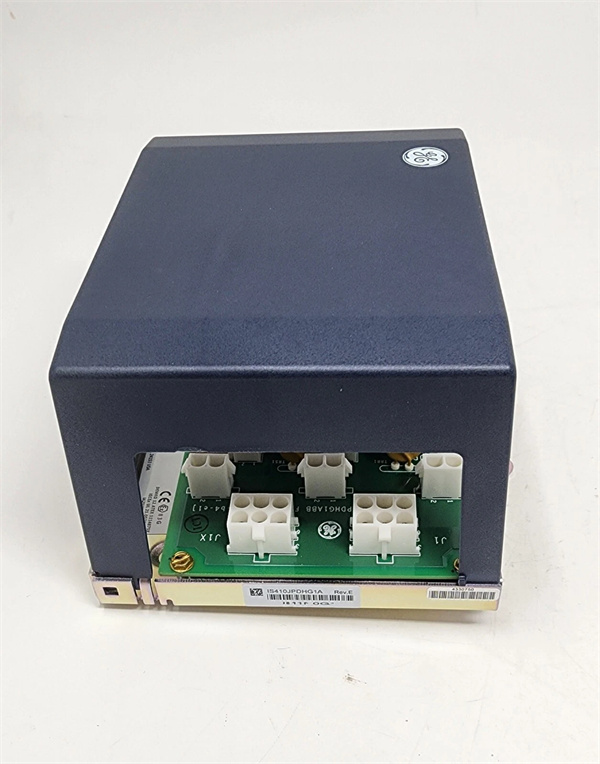

GE IS410JPDHG1A

Product introduction

GE IS410JPDHG1A is a high-density process I/O module designed for GE’s Mark VIe control system, engineered to serve as a versatile interface between field sensors/actuators and the central control unit in complex industrial processes. Unlike specialized I/O modules that handle only one signal type, GE IS410JPDHG1A integrates 16 universal analog inputs (supporting 4–20mA, voltage, thermocouples, and RTDs) and 8 analog outputs in a single unit—eliminating the need for multiple dedicated modules in control cabinets.

In process automation, GE IS410JPDHG1A acts as the “sensory hub” for critical variables, converting raw sensor data into actionable insights for the Mark VIe CPU. For example, in a chemical plant’s reactor system, it simultaneously measures temperature via thermocouples (Type K), pressure via 4–20mA transmitters, and fluid level via 0–10V sensors—then sends calibrated data to the control system. Its analog outputs also enable precise control of valve positioners and variable-speed drives, closing the loop between measurement and action.

What distinguishes GE IS410JPDHG1A is its combination of density and accuracy: it handles 24 channels in a compact form factor, maintains lab-grade precision across extreme temperatures (-40°C to +70°C), and includes built-in diagnostics to minimize downtime. This makes it ideal for space-constrained, harsh-environment applications like offshore oil platforms, refineries, and power plant process loops—where reliable measurement of multiple variables is critical to safety and efficiency.

Core advantages and technical highlights

Universal Inputs for Reduced Complexity: GE IS410JPDHG1A’s 16 universal analog inputs eliminate the need to stock separate modules for different sensor types. A single channel can be configured via software to accept a 4–20mA pressure signal in the morning and a Type J thermocouple temperature reading in the afternoon—saving time during system reconfigurations. In a food processing plant, this flexibility allowed operators to repurpose the module from monitoring oven temperatures (RTDs) to tracking filling line pressure (4–20mA transmitters) during a product changeover, reducing setup time by 2 hours and avoiding the cost of a dedicated pressure module ($800+).

Lab-Grade Accuracy in Extreme Conditions: GE IS410JPDHG1A maintains ±0.05% input accuracy even when ambient temperatures swing from -40°C to +70°C—a critical feature for Arctic oil rigs or desert solar plants. In a Siberian natural gas processing facility, the module measured pipeline temperatures (via Type T thermocouples) with ±0.3°C error, ensuring the gas remained within the 0°C to 5°C range required for efficient compression. This precision reduced energy waste by 8% compared to legacy modules that drifted by ±1.5°C in cold conditions.

Dual-Port Ethernet for Redundant Communication: Unlike single-interface I/O modules, GE IS410JPDHG1A includes dual-port Ethernet, enabling redundant communication paths to the Mark VIe CPU. In a nuclear plant’s cooling water system, this redundancy ensures sensor data (e.g., flow rate, temperature) reaches the control system even if one Ethernet port fails—preventing false shutdowns that could cost $100,000 per hour. The module also supports Modbus TCP/IP, allowing seamless integration with third-party SCADA systems without protocol converters.

Intelligent Diagnostics for Proactive Maintenance: GE IS410JPDHG1A detects channel-level faults (open circuits, shorts, overrange) and logs them with timestamps, enabling technicians to identify issues before they affect process control. In a refinery’s distillation column, the module flagged a “short circuit” on a pressure transmitter input—alerting maintenance to a damaged cable before the control system lost visibility of column pressure. This proactive warning avoided a 4-hour unplanned shutdown, saving $40,000 in lost production. The built-in self-calibration feature also reduces maintenance costs by eliminating the need for manual calibration every 6 months.

Typical application scenarios

GE IS410JPDHG1A is a critical component in a 250,000-barrel-per-day refinery’s crude distillation unit, where it monitors and controls 12 process variables across the distillation column. The module’s 16 analog inputs track: 6 tray temperatures (Type K thermocouples), 3 pressure points (4–20mA transmitters), 2 flow rates (0–10V magnetic meters), and 1 RTD for reboiler temperature. Its 8 analog outputs adjust: 4 control valves (regulating reflux, steam, and product draws) and 4 variable-speed pumps (managing feed rates).

During a summer heatwave, the refinery’s control room temperatures reached 38°C—well within GE IS410JPDHG1A’s operating range. The module maintained stable measurements, ensuring the distillation column’s top temperature stayed within ±0.5°C of the setpoint (350°F), critical for producing on-spec gasoline. When a thermocouple wire loosened (causing an open circuit), the module immediately flagged the fault on the Mark VIe HMI, and technicians replaced the wire during a scheduled 15-minute window—avoiding a process upset that could have required a 2-hour shutdown to reset.

In an offshore wind farm’s substation, GE IS410JPDHG1A monitors transformer oil temperature (RTD), busbar voltage (0–10V), and cooling fan current (4–20mA). Its conformal coating resists salt spray, and its -40°C low-temperature rating handles North Sea winters. The dual Ethernet ports ensure data reaches both the on-site HMI and the onshore control center, providing full visibility of substation health—critical for maintaining 98% turbine uptime.

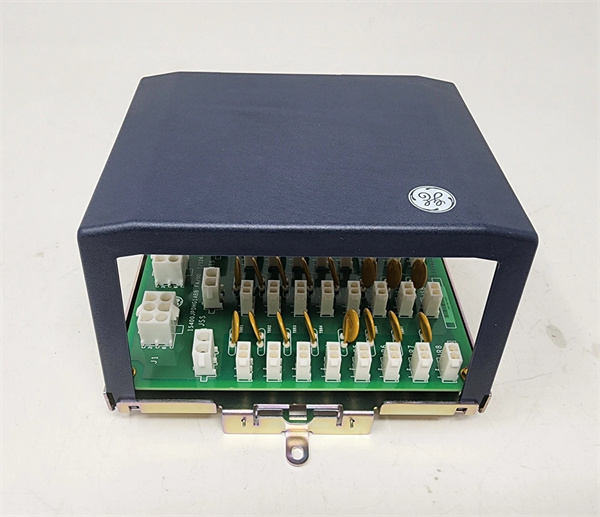

GE IS410JPDHG1A

Related model recommendations

GE IS410JPDHG2A: Enhanced variant of GE IS410JPDHG1A (32 inputs/16 outputs, SIL 3 compliance); upgrade for large-scale process plants requiring higher channel counts and safety integrity.

GE IC698CPE040-FJGE: Mark VIe CPU that processes data from GE IS410JPDHG1A; executes control algorithms and displays real-time process variables on the HMI.

GE DS200DDTBG2A: Digital I/O terminal board that complements GE IS410JPDHG1A; adds 32 discrete channels for monitoring limit switches or controlling contactors.

GE DS200EXPSG1A: Redundant 24V DC power supply module that powers GE IS410JPDHG1A; ensures uninterrupted operation during single power source failures.

GE IC698HSC004: High-speed counter module that works with GE IS410JPDHG1A; adds 4 counter channels for flow totalization or encoder feedback.

GE Proficy Machine Edition v10.0: Configuration software for GE IS410JPDHG1A; used to set input types, calibrate channels, and configure fault thresholds.

GE IS420YDOAS1B: Digital output module that pairs with GE IS410JPDHG1A; provides 16 relay outputs for controlling high-power devices (e.g., heaters, large valves).

GE 90-30 PLC Interface Module (IC693CMM311): Adapter for integrating GE IS410JPDHG1A with legacy GE 90-30 systems; enables phased migration to Mark VIe.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing GE IS410JPDHG1A, verify compatibility with the Mark VIe rack and target sensors/actuators. Ensure the environment meets -40°C to +70°C and 5%–95% RH (non-condensing). Required tools: torque screwdriver (0.6–0.9 N·m), wire strippers (22–14 AWG), ESD-safe gloves, multimeter, and calibrated signal generator. Safety precautions: Power off the control system and apply lockout/tagout. Mount GE IS410JPDHG1A in the Mark VIe rack, secure with M4 screws, and connect redundant 24V DC power inputs. Use shielded twisted-pair cable for analog signals (ground shields at one end) to minimize noise.

Commissioning and maintenance: During setup, use Proficy Machine Edition to configure input types (e.g., “AI1 = Type K Thermocouple”) and calibrate outputs using a precision multimeter. For daily operation, monitor the module’s health LEDs (green = normal, red = fault) and check for channel alarms on the HMI. Every 12 months, verify input accuracy with a calibrated signal generator (e.g., 4mA, 12mA, 20mA for current inputs) and inspect terminal blocks for corrosion (clean with a dry cloth if needed). If a channel fault persists after checking wiring, use the software to isolate the issue—replace GE IS410JPDHG1A with a GE-approved spare if internal components fail. Avoid using abrasive cleaners or water, as they can damage the conformal coating.

Service and guarantee commitment

GE IS410JPDHG1A is backed by a 5-year manufacturer’s warranty from GE, covering defects in materials, workmanship, and performance under normal industrial use (per UL 61010-1 and IEC 61508 standards). This extended warranty reflects GE’s confidence in the module’s rugged design and long-term reliability. If GE IS410JPDHG1A fails within the warranty period, GE provides next-business-day replacement for priority customers (e.g., refineries, nuclear plants) to minimize process downtime.

GE offers 24/7 global technical support for GE IS410JPDHG1A, with specialists trained in process instrumentation available via phone or email to assist with calibration, fault diagnosis, or integration. Customers receive free access to Proficy Machine Edition updates for 3 years post-purchase, ensuring compatibility with new Mark VIe features. For enhanced support, GE’s Process Services team provides on-site commissioning assistance and annual accuracy verification—helping customers maintain optimal performance and compliance with industry standards like ISO 9001 and API 550.
