Description
Product Overview

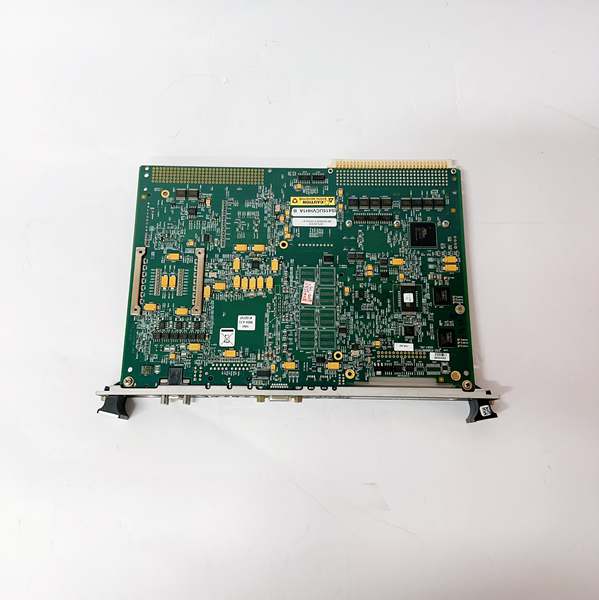

The GE IS415UCVHH1A is a VME-based controller board designed for critical applications in gas turbine, steam turbine, and power generation systems. As part of GE’s Mark VIe Speedtronic control platform, it executes turbine control algorithms, manages I/O interfaces, and ensures real-time operational stability in harsh industrial environments.
Role in Automation Systems:
-
Acts as the primary control module in Mark VIe systems, processing turbine performance data (e.g., speed, temperature) and executing protection logic.
-
Interfaces with turbine I/O boards via the VME bus to monitor sensors and drive actuators.
Core Functionality:
-
Control Logic Execution: Runs QNX-based turbine control software for tasks like combustion optimization and load management.
-
Data Acquisition: Processes analog/digital signals from field devices (e.g., pressure transducers, vibration sensors).
-
Redundancy Support: Enables simplex, dual, or triple-redundant configurations for fault tolerance.
Platform Integration:
-
Compatible with GE’s VCMI communication cards for synchronization and data exchange.
-
Supports Modbus TCP/IP, DNP3, and Profibus protocols for cross-vendor system integration.
GE IS415UCVHH1A
Technical Specifications
-
Model: IS415UCVHH1A
-
Manufacturer: GE
-
Product Type: VME Controller Board
-
Processor: Intel Celeron 650 MHz (ULV)
-
Memory:
-
RAM: 128 MB SDRAM (expandable)
-
Storage: 128 MB Compact Flash
-
-
Communication Interfaces:
-
Ethernet: 2× RJ45 ports (10/100 Mbps)
-
Serial: 2× RS-232C (COM1/COM2)
-
USB: 2× USB 2.0 ports
-
-
Environmental Ratings:
-
Temperature: 0°C to +70°C (operating)
-
Humidity: 5–95% non-condensing
-
-
Power Supply: 200–250 VAC (50/60 Hz)
-
Certifications: CE, UL 508, IEC 61000-6-2
Core Features & Customer Value
-
High-Reliability Design:
-
Built with industrial-grade components and conformal coating to resist dust, moisture, and vibration.
-
Application: Maintains 24/7 uptime in gas turbine control systems exposed to extreme temperatures.
-
-
Deterministic Performance:
-
QNX real-time OS ensures <1 ms task scheduling, critical for turbine protection during load shifts.
-
Application: Prevents overspeed events by processing RPM signals at 1 kHz sampling rates.
-
-
Flexible Configuration:
-
Supports hot-swappable VME modules for maintenance without system shutdown.
-
Application: Enables rapid replacement of faulty I/O boards in power plants.
-
Typical Applications
-
Gas Turbine Control:
-
Load Management: Adjusts fuel flow based on grid demand while maintaining emissions compliance.
-
Example: Optimizes combustion efficiency in combined-cycle plants during peak hours.
-
-
Steam Turbine Protection:
-
Overspeed Protection: Triggers emergency shutdowns if RPM exceeds 110% of rated speed.
-
-
Renewable Energy:
-
Wind Turbine Integration: Regulates pitch control systems using turbine speed feedback.
GE IS415UCVHH1A
-
Installation & Maintenance
-
Mounting: DIN rail or panel-mounting with IP20-rated enclosure.
-
Wiring: Pre-terminated connectors for sensors (e.g., 4–20 mA vibration signals).
-
Diagnostics:
-
LED indicators for power, communication, and fault alerts.
-
Built-in self-test (POST) during startup.
-
-
Service:
-
Field-replaceable flash memory and CMOS battery for BIOS retention.
-
