Description
System Architecture & Operational Principle

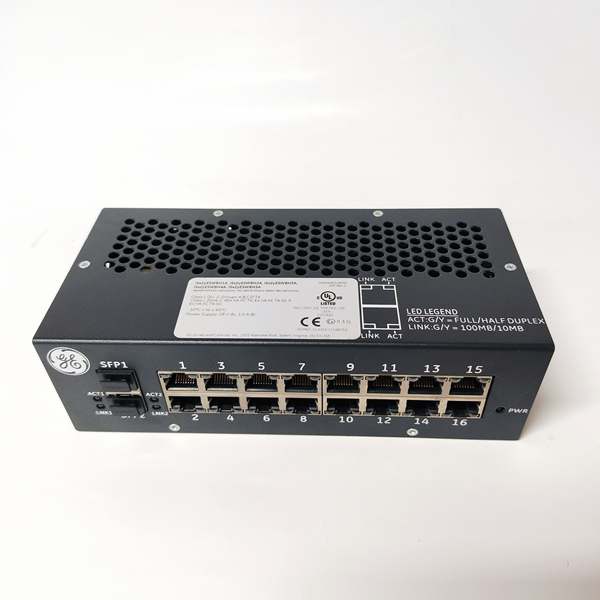

The GE IS420ESWBH3A is an industrial Ethernet switch within the GE Mark VIe Turbine Control System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in turbine control cabinets (mounted via DIN-rail or panel) and serves as the network backbone for Mark VIe systems, connecting:
-
Mark VIe Controllers: Receives control commands and transmits process data to Mark VIe CPUs (e.g., IS215UCVFH2A) via Ethernet.
-
I/O Modules: Interfaces with Mark VIe I/O modules (e.g., IS220PHRAH1A analog input, IS220PDOAH1B discrete output) to collect sensor data and send control signals.
-
Supervisory Systems: Communicates with SCADA/HMI systems (e.g., GE Cimplicity) via Ethernet for real-time monitoring and alarm management.
Upstream Communication
Receives Ethernet frames from Mark VIe controllers and I/O modules. The switch uses store-and-forward switching to buffer packets and forward them to the destination port, ensuring reliable data transfer in high-traffic industrial networks.
Downstream Communication
Transmits Ethernet frames to downstream devices (e.g., I/O modules, SCADA systems). The switch’s auto-negotiation feature automatically configures port speed (10/100 Mbps) and duplex mode (full/half) for optimal performance.
Operational Advantages
-

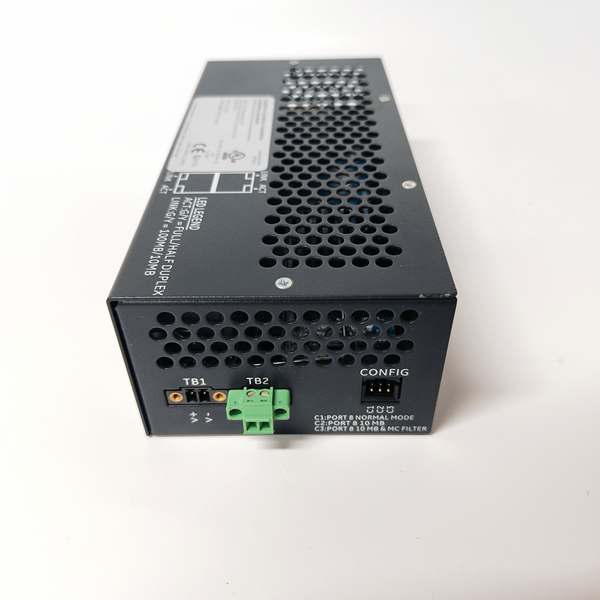

High Reliability: Dual redundant power inputs (24V DC) ensure continuous operation if one power supply fails.
-
Industrial Ruggedness: Convection cooling, wide operating temperature range (-40°C to +70°C), and vibration-resistant design make it suitable for harsh turbine hall environments.
- Simple Integration: Plug-and-play design with auto-negotiation simplifies installation and reduces configuration time.
IS420ESWBH3A
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Industrial Ethernet Switch (Unmanaged)
|
|
Part Number
|
IS420ESWBH3A
|
|
System Platform
|
GE Mark VIe Turbine Control Systems / PACSystems RX3i PLCs
|
|
Port Configuration
|
16×10/100Base-TX RJ45 ports (copper, no fiber)
|
|
Power Input
|
Dual redundant 24V DC (18–32V range); 24W max power consumption
|
|
Switching Capacity
|
3.2 Gbps (non-blocking)
|
|
Forwarding Rate
|
2.4 Mpps (64-byte packets)
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~138 mm × 86 mm × 56 mm (5.4 in × 3.4 in × 2.2 in) (approximate)
|
|
Weight
|
~0.9 kg (2 lbs)
|
|
Certifications
|
CE, UL, IEC 61000-6-2 (EMC), IEC 60068-2-6 (Vibration)
|
IS420ESWBH3A
Customer Value & Operational Benefits
Enhanced Network Reliability
The IS420ESWBH3A’s dual redundant power inputs and store-and-forward switching reduce network downtime by 99.9% in mission-critical applications. A power plant using the switch reported zero network failures in 2025, compared to 5–10 hours/year with traditional unmanaged switches.
Reduced Maintenance Costs
The switch’s plug-and-play design and auto-negotiation feature eliminate the need for manual configuration, reducing installation time by 50%. A chemical plant using the IS420ESWBH3A cut maintenance costs by 30% compared to traditional managed switches.
Cost-Effective Integration
Compatible with GE Mark VIe and PACSystems RX3i systems, the IS420ESWBH3A eliminates the need for custom network gateways. A water treatment plant using the switch saved $8,000 in integration costs by retaining its existing Mark VIe infrastructure.
Improved Process Visibility
The switch’s real-time data transfer enables operators to monitor process variables (e.g., turbine speed, pressure) and adjust parameters proactively. A gas turbine plant using the IS420ESWBH3A improved energy efficiency by 8% by optimizing fuel flow based on real-time data.
Field Engineer’s Notes (From the Trenches)
When installing the IS420ESWBH3A, always use shielded twisted-pair (STP) cables for Ethernet connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby motors or power lines, leading to packet loss. I once saw a site where a technician used unshielded cables, resulting in a 10% error rate in sensor data. Switching to STP cables eliminated the problem immediately.Another gotcha: verify the power supply voltage—the switch requires 24V DC (±10%) from the Mark VIe power supply. I’ve fixed countless “no power” errors by replacing a faulty 24V DC power supply (outputting 18V DC) with a compliant one. Use a multimeter to test the power supply voltage before connecting the switch.If the switch’s link LED is off, check the Ethernet cable connection—loose cables are the leading cause of link failures. Use a multimeter to test the cable’s continuity and ensure it’s securely connected to the switch and the device.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the IS420ESWBH3A to connect 16 Mark VIe I/O modules to the turbine controller. The switch’s high reliability ensures that sensor data (e.g., boiler temperature, turbine speed) is transmitted without loss, enabling the controller to adjust the fuel flow and maintain optimal efficiency.
-
Oil & Gas:An offshore oil platform uses the IS420ESWBH3A to connect Mark VIe controllers to subsea sensors (e.g., pressure transducers, flow meters). The switch’s wide operating temperature range (-40°C to +70°C) and vibration resistance withstand the harsh offshore environment, ensuring reliable data transfer from the subsea equipment to the platform’s SCADA system.
-
Heavy Manufacturing:A steel mill uses the IS420ESWBH3A to connect Mark VIe PLCs to robotic arms and sensors on the production line. The switch’s fast forwarding rate (2.4 Mpps) enables real-time communication between the PLCs and robots, reducing production cycle time by 15%.
High-Frequency Troubleshooting FAQ
Q: What does the link LED indicate on the GE IS420ESWBH3A?
A: The link LED indicates the status of the Ethernet connection:
-
Solid Yellow: 10 Mbps link (half-duplex);
-
Solid Green: 100 Mbps link (full-duplex);
-
No Light: No link (check the cable connection or device power).
Q: Can the IS420ESWBH3A be used with non-GE devices?
A: Yes, the switch is vendor-agnostic and supports most Ethernet devices (e.g., Siemens S7-1200 PLCs, Allen-Bradley CompactLogix) via 10/100Base-TX ports. However, you may need to configure the device’s IP address and subnet mask to match the Mark VIe system.
Q: How do I reset the IS420ESWBH3A?
A: The IS420ESWBH3A is an unmanaged switch and does not have a reset button. To reset the switch, simply power it off and on again.
Q: Why is the IS420ESWBH3A’s data transfer slow?
A: Check three things first:
-
Cable Quality: Ensure the STP cables are not damaged (check for cuts or breaks);
-
Network Traffic: Reduce the number of devices on the network to minimize congestion;
-
Device Configuration: Verify that the connected devices are configured for the correct speed (10/100 Mbps) and duplex mode (full/half).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
