Description
Product Overview
The GE IS420UCSBH1A is a compact industrial control module designed for integration into PLC and DCS systems. It serves as a critical interface for real-time data acquisition, signal processing, and device control in industrial automation applications.
Role in Automation Systems:
-
Acts as a local control unit for sensors, actuators, and field devices.
-
Supports emergency shutdown protocols and data logging for safety-critical systems.
Core Functionality:
-
Signal Conditioning: Filters and scales analog inputs (0–24 V DC) for accuracy.
-
Digital I/O Handling: Manages 16 channels of digital input/output with configurable logic.
-
Communication: Enables bidirectional data exchange via Ethernet and serial interfaces.
Platform Benefits:
-
Modular Design: Compatible with GE’s Mark Vle control systems and third-party PLCs.
-
Low Power Consumption: Optimized for energy efficiency in continuous operation.

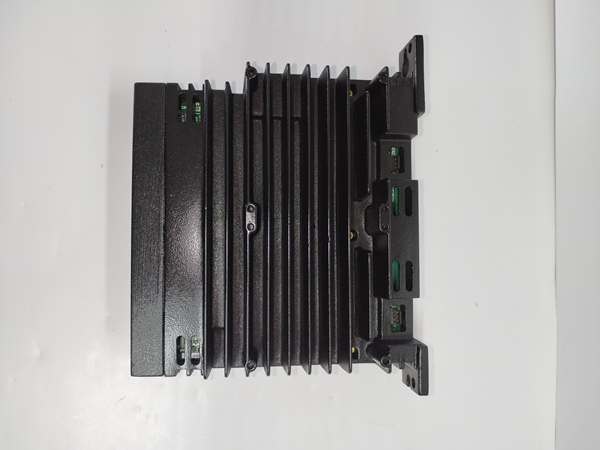

GE IS420UCSBH1A
Technical Specifications
-
Model: IS420UCSBH1A
-
Manufacturer: GE
-
Product Type: Industrial Controller
-
Processor: 600 MHz Intel EP80579
-
Memory: 16 KB RAM, 32 KB ROM
-
Communication Interfaces:
-
Ethernet: RJ45 port (Profinet/EtherCAT)
-
Serial: RS-485/RS-232
-
-
I/O Configuration:
-
Digital Input: 16 channels (0–24 V DC)
-
Digital Output: 16 channels (0–24 V DC)
-
-
Environmental Ratings:
-
Temperature: -20°C to +60°C (operating), -40°C to +85°C (storage)
-
Humidity: 5–95% non-condensing
-
-
Certifications: UL, CE, ATEX Zone 2 (IIC Group)
Core Features & Customer Value
-
High-Reliability Design:
-
Built with industrial-grade components to withstand harsh environments (vibration, dust, humidity).
-
Redundant thermal management prevents overheating during sustained high-load operation.
-
-
Flexible Configuration:
-
I/O Customization: Channels can be reconfigured via software for analog/digital mix setups.
-
Protocol Support: Seamless integration with Siemens, Rockwell, and Schneider systems via Modbus.
-
-
Safety & Compliance:
-
ATEX Zone 2 certification ensures safe operation in explosive atmospheres (e.g., oil refineries).
-
Overcurrent and short-circuit protection (300% rated current trip).
GE IS420UCSBH1A
-
Typical Applications
-
Power Generation:
-
Gas Turbine Control: Monitors turbine speed, fuel flow, and vibration sensors to optimize combustion efficiency.
-
Example: Maintains stable output in combined-cycle plants during load fluctuations.
-
-
Process Industries:
-
Chemical Plants: Controls reactor temperature and pressure via analog inputs, triggering safety shutdowns if thresholds are exceeded.
-
-
Manufacturing:
-
Assembly Lines: Drives robotic arms using digital outputs and synchronizes motion via Ethernet communication.
-
-
Infrastructure:
-
Water Treatment: Regulates pump operations based on flow meter data to prevent overflow.
-
Installation & Maintenance
-
Mounting: DIN rail or panel-mounting with IP20-rated enclosure.
-
Wiring: Pre-terminated connectors for sensors/actuators (e.g., 24 V DC discrete inputs).
-
Diagnostics: LED indicators for power, communication, and fault alerts.
-
Service:
-
Annual calibration for analog inputs (±0.5% accuracy).
-
Field-replaceable components for minimal downtime.
-
