Description
System Architecture & Operational Principle
The V7768-312000 is a 16-channel analog input I/O pack in the Mark VIe V7768 series, designed to mount in a Mark VIe I/O carrier within a controller rack (Purdue Level 1). It interfaces directly with field instruments—such as pressure transmitters, temperature sensors (via transmitters), and flowmeters—that output 4–20 mA signals. These signals represent process variables like bearing temperature, exhaust pressure, or fuel flow rate.
Each channel contains signal conditioning circuitry (precision resistor networks, filtering) and 1500 VDC optical isolation to eliminate ground loops and protect the Mark VIe controller from high-voltage transients or field-side faults. The conditioned signals are digitized by a high-resolution ADC (Analog-to-Digital Converter) and transmitted to the controller carrier (e.g., UCVE board) via the VME backplane.
The I/O pack is hot-swappable when installed in a supported Mark VIe carrier, allowing replacement without shutting down the entire control system. This is critical for high-availability turbine applications where even brief outages can lead to significant production losses. The pack also includes diagnostic LEDs for power, communication, and channel faults, enabling quick visual troubleshooting.
GE V7768-312000
Core Technical Specifications
-
Physical Interface: 2x 16-position terminal blocks (one per 8 channels) for field wiring
-
Input Channels: 16 single-ended analog inputs (4–20 mA)
-
Input Range: 4–20 mA (selectable 0–20 mA via jumper)
-
Resolution: 16 bits (65,536 counts)
-
Accuracy: ±0.05% of span (at 25°C)
-
Isolation: 1500 VDC channel-to-channel, 500 VDC channel-to-ground
-
Input Impedance: 250 Ω nominal (converts 4–20 mA to 1–5 VDC internally)
-
Update Rate: 10–20 ms per channel (software-configurable)
-
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
-
Storage Temperature: -55°C to +85°C (-67°F to +185°F)
-
Humidity: 5–95% RH non-condensing
-
Common Mode Rejection Ratio (CMRR): >120 dB at 50/60 Hz
-
Dimensions: ~200 mm × 30 mm × 150 mm (7.9 in × 1.2 in × 5.9 in)
-
Weight: ~1.0 kg (2.2 lbs)
-
Certifications: UL/cUL, CE, IEEE 1613 (substation environmental compliance)
Customer Value & Operational Benefits
High-Resolution Signal Acquisition for Precise Monitoring
The 16-bit resolution and ±0.05% accuracy ensure that small changes in process variables are detected reliably. This is essential for turbine health monitoring (e.g., detecting early signs of bearing wear via temperature trends) and combustion optimization (e.g., fine-tuning fuel flow based on exhaust pressure).
Robust Isolation Prevents Ground Loops and Transient Damage
Channel-to-channel and channel-to-ground isolation eliminates interference from field-side ground potential differences, which are common in large plants with multiple grounding zones. This protects the Mark VIe controller from voltage spikes caused by lightning, motor startups, or faulty transmitters, reducing unplanned downtime.
Hot-Swappable Design Minimizes Maintenance Impact
The ability to replace a faulty V7768-312000 I/O pack without powering down the rack is invaluable for continuous process industries (power generation, oil & gas). Maintenance can be performed during scheduled plant rounds, avoiding costly shutdowns or safety incidents.

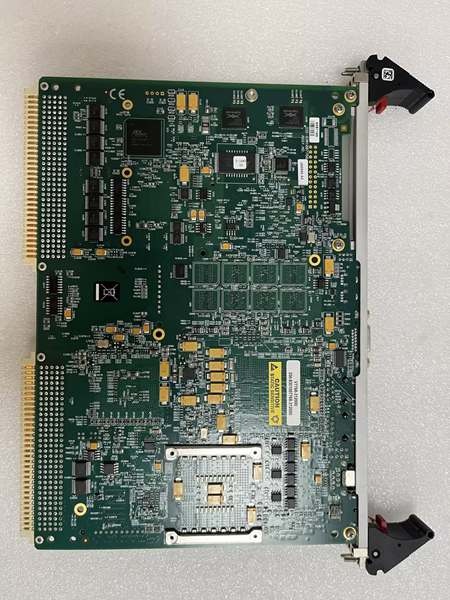

GE V7768-312000
Field Engineer’s Notes (From the Trenches)
When wiring 4–20 mA loops to the V7768-312000, always use shielded twisted pair cable and terminate the shield at the I/O pack’s terminal block only—grounding both ends creates ground loops that manifest as erratic readings or drift. I once spent hours troubleshooting a pressure transmitter that “drifted” until I realized the shield was bonded to the transmitter housing and the I/O pack chassis. Also, verify the loop resistance doesn’t exceed 600 Ω (including cable resistance)—higher resistance drops voltage below the pack’s 1 VDC minimum input, causing a 0 mA reading.
Real-World Applications
In a Pennsylvania natural gas power plant, the V7768-312000 monitors 16 pressure transmitters on a gas turbine’s fuel gas skid. The 16-bit resolution allows the Mark VIe controller to detect pressure fluctuations as small as 0.01 psi, triggering early warnings for filter clogging. The 1500 VDC isolation prevents interference from nearby high-voltage starters, ensuring reliable data for the turbine’s safety system.
On an offshore oil platform, the V7768-312000 reads 4–20 mA signals from subsea flowmeters in a gas export line. The module’s wide operating temperature range (-40°C to +70°C) withstands the platform’s unheated control module room, while IEEE 1613 compliance ensures reliable operation in the marine environment. Hot-swapping failed I/O packs during crew changes minimizes impact on production.
