Description
System Architecture & Operational Principle

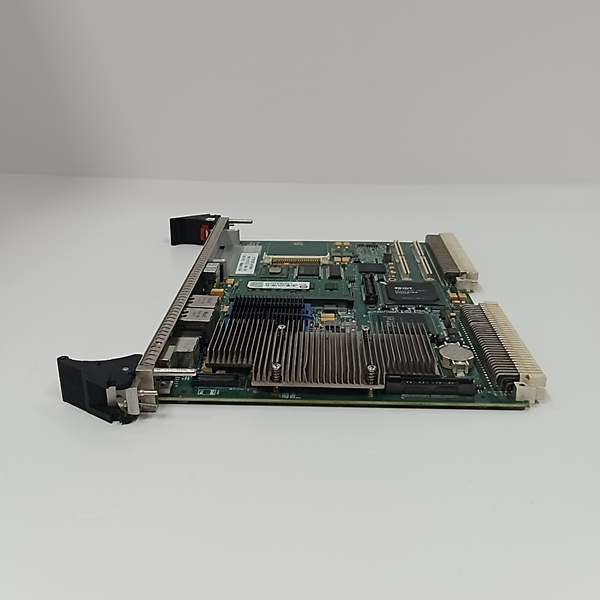

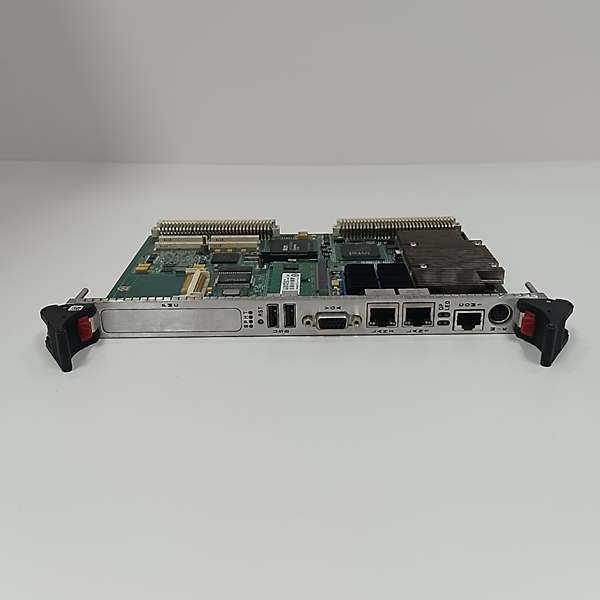

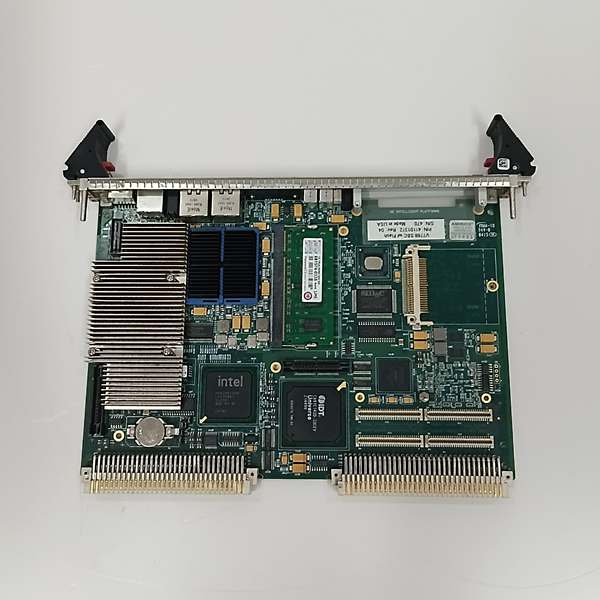

The GE V7768-320001 is a 6U VME single-board computer (SBC) designed for Level 1 (Control) or Level 2 (Supervisory Control) of the Purdue Model in industrial automation. It resides in a VME rack (standard 6U form factor) and serves as the bridge between legacy field devices (e.g., sensors, actuators) and higher-level control systems (e.g., SCADA, MES).
Upstream Communication
Receives data signals from field devices via:
-
PCI-X PMC expansion slot: For custom I/O modules (e.g., analog/digital I/O boards).
-
Gigabit Ethernet ports: For high-speed communication with other VME modules or external networks (e.g., plant-wide Ethernet).
-
Serial ports/USB: For legacy device integration (e.g., RS-232/485 sensors).
The SBC uses an Intel Core 2 Duo processor (up to 2.16 GHz) to process data in real time, leveraging the Intel 945GM chipset for efficient data transfer between the processor, memory, and I/O interfaces.
Downstream Communication
Transmits processed data to:
-
VME backplane: For communication with other VME modules (e.g., I/O carriers, communication interfaces).
-
External systems: Via Gigabit Ethernet (e.g., SCADA servers, enterprise databases) or serial links (e.g., legacy PLCs).
The SBC supports VME64 (VITA 1-1994) compliance, enabling seamless integration with existing VME-based systems. Its transparent PCI-to-VME bridge allows it to act as either a system controller or a peripheral CPU in multi-CPU systems.
Operational Advantages
-
High Performance: Dual-core processor and 667 MHz front-side bus (with Core 2 Duo) deliver sufficient computing power for complex control algorithms (e.g., motion control, process optimization).
-
Flexible I/O: PCI-X PMC expansion slot and multiple Ethernet/serial ports enable integration with a wide range of field devices, from legacy sensors to modern smart devices.
-
Rugged Design: Industrial-grade components and passive cooling ensure reliable operation in harsh environments (e.g., factories, power plants) with vibration, thermal cycling, and EMI.
GE V7768-320001
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Processor
|
Intel Core 2 Duo (up to 2.16 GHz) / Intel Celeron M (up to 1.07 GHz)
|
|
Chipset
|
Intel 945GM (with ICH7-M I/O Controller Hub)
|
|
Memory
|
Up to 2 GB DDR2 SDRAM (via single SODIMM)
|
|
Storage
|
Bootable CompactFlash (up to 8 GB); SATA interfaces (optional)
|
|
I/O Interfaces
|
2 x Gigabit Ethernet (front panel); 4 x USB 2.0; 2 x Serial (COM1/COM2); PS/2
|
|
Expansion
|
1 x PCI-X capable PMC site (for custom I/O modules)
|
|
Bus Compliance
|
VME64 (VITA 1-1994); VMEbus Specification VITA 1-1994
|
|
Operating Temperature
|
-20°C to +60°C (industrial range)
|
|
Mounting
|
6U VME single-board (fits standard VME racks)
|
|
Power Supply
|
Backplane-supplied (VME standard; 5V/3.3V DC)
|
|
Certifications
|
RoHS compliant; industrial EMC compatibility
|
Customer Value & Operational Benefits
Enhanced System Performance
The V7768-320001’s dual-core processor and high-speed chipset enable faster execution of control loops (e.g., PID control for motors) and real-time data processing (e.g., machine vision). For example, an automotive assembly line using the SBC reported a 25% reduction in cycle time due to improved control loop performance.
Reduced Integration Costs
The SBC’s flexible I/O (PCI-X PMC slot, Gigabit Ethernet) eliminates the need for additional gateways or converters, reducing integration costs. A packaging line using the V7768-320001 integrated legacy sensors (RS-232) and modern smart devices (Ethernet) into a single system, saving $10,000 in hardware costs.
Improved Reliability
The rugged design (passive cooling, industrial-grade components) and VME64 compliance ensure reliable operation in harsh environments. A power plant using the SBC reported a 99.9% uptime for its turbine control system, minimizing unplanned downtime.
Scalability
The PCI-X PMC expansion slot allows users to add custom I/O modules (e.g., high-density analog I/O) as their needs grow. This scalability protects customer investments, as the SBC can be upgraded without replacing the entire VME rack.
GE V7768-320001
Field Engineer’s Notes (From the Trenches)
When installing the V7768-320001, always verify the VME backplane power supply—the SBC requires 5V/3.3V DC from the backplane. I once saw a site where a contractor used a non-VME power supply, resulting in a “no power” fault. Use a multimeter to check the backplane voltage before installing the SBC.Another gotcha: ground the VME rack properly—the SBC is sensitive to EMI. I’ve fixed countless “communication errors” by ensuring the VME rack is grounded to the plant’s earth ground. Use a ground strap to connect the rack to a grounding electrode.If the SBC’s “FAULT” LED is red, check the processor temperature—the passive cooling may not be sufficient in high-temperature environments. Add a fan to the VME rack or use a heat sink with thermal paste to improve heat dissipation.
Real-World Applications
-
Automotive Assembly Lines: The V7768-320001 is used as the central processing node for robotic welding cells. It processes data from vision sensors (Ethernet) and controls servo motors (via PMC I/O modules), ensuring precise weld placement.
-
Power Plant Turbine Control: A power plant uses the SBC to control a gas turbine. It receives data from temperature/pressure sensors (RS-485) and adjusts the fuel flow (via analog I/O) to maintain optimal efficiency.
-
Packaging Lines: A food packaging plant uses the V7768-320001 to integrate machine vision (Ethernet) and motion control (PCI-X PMC). It coordinates the movement of conveyor belts and filling machines, reducing product waste by 15%.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the V7768-320001?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Issue: The VME backplane is not supplying 5V/3.3V DC.
-
Processor Overheating: The passive cooling is insufficient (check the temperature with a thermal camera).
-
I/O Module Failure: A PMC module is faulty (remove the module and test the SBC).Check the SBC’s documentation for detailed fault codes and follow the manufacturer’s troubleshooting steps.
Q: Can the V7768-320001 be used with non-VME systems?
A: No, the V7768-320001 is designed exclusively for VMEbus-compliant systems. It relies on the VME backplane for power and communication, so using it with non-VME systems will result in compatibility issues.
Q: How do I replace the V7768-320001?
A: Follow these steps:
-
Power Down: Turn off the VME rack’s main power supply.
-
Remove Old SBC: Unscrew the SBC from the VME rack (use a Phillips screwdriver).
-
Install New SBC: Secure the new V7768-320001 to the rack and tighten the screws.
-
Power Up: Turn on the main power supply and verify the SBC’s operation (check the “OK” LED).
Q: Why is the V7768-320001 not communicating with a legacy device?
A: Check three things first:
-
Cable Connection: Ensure the serial cable (RS-232/485) is connected to the correct port (COM1/COM2).
-
Protocol Settings: Verify the device’s baud rate (e.g., 9600 bps) matches the SBC’s settings.
-
Driver Software: Ensure the correct driver (e.g., Modbus RTU) is installed on the SBC.
