GE VMIVME-7486 | VMEbus Series 100% PC/AT Compatible Processor Board

Description

VMIVME-7486: Product Overview​

1. Data Processing: Executes control algorithms and processes data from field devices (e.g., sensors, actuators) via the VMEbus.
2. Communication: Acts as a system controller or peripheral CPU, enabling communication between VMEbus devices (e.g., I/O modules, displays) and external networks (via Ethernet or serial ports).
3. Legacy Support: Serves as a drop-in replacement for older VMEbus processor boards, extending the lifespan of existing industrial systems without requiring major upgrades.

• 100% PC/AT Compatibility: The VMIVME-7486 is fully compatible with PC/AT systems, allowing seamless integration with existing software and hardware ecosystems.
• VMEbus Integration: Conforms to VMEbus Rev. C.1, supporting 8/16/32-bit data transfer and seamless integration with VME64 backplanes and controllers (e.g., GE Fanuc 90-30 series).
• Advanced Chipset: The Intel 815E chipset with Advanced Hub Architecture (AHA) separates high-bandwidth I/O (e.g., IDE, USB) from the PCI bus, reducing bottlenecks and improving system performance.
• Robust I/O Capabilities: Includes a parallel Centronics port, two RS-232C serial ports, a PC/AT keyboard interface, and on-board floppy/IDE controllers, enabling connection to a wide range of peripherals.
• Real-Time Clock (RTC): Features an on-board RTC with a battery backup, ensuring accurate timekeeping even during power outages.

• Reliability: Industrial-grade components and a rugged 6U Eurocard form factor ensure 24/7 operation in harsh environments (e.g., high temperature, vibration).
• Scalability: Supports expansion with additional I/O modules or memory to accommodate growing system demands.
• Legacy Integration: Compatible with existing VMEbus systems, reducing the cost and complexity of upgrading industrial control architectures.

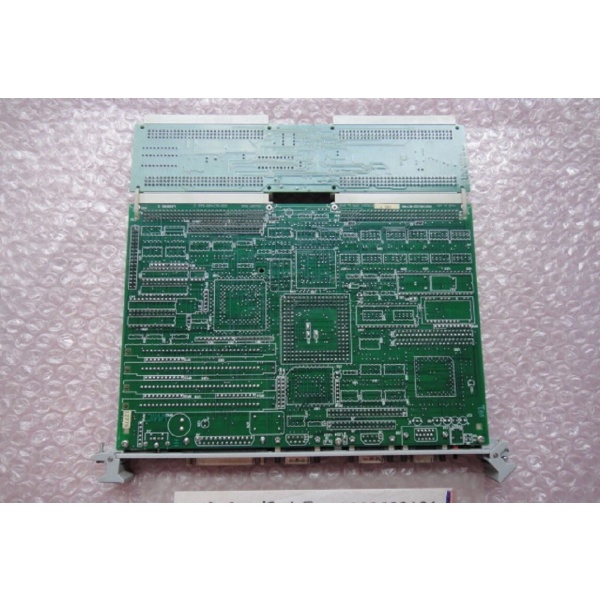

  VMIVME-7486

Technical Specifications​

• Model Number: VMIVME-7486 (Variant: VMIVME-7486-000)
• Manufacturer: GE (General Electric)
• Product Type: VMEbus Series 100% PC/AT Compatible Processor Board
• Form Factor: 6U Eurocard (160 mm × 233 mm)
• Processor: Intel Pentium III (up to 1.26 GHz, PGA370 socket)
• Chipset: Intel 815E (AHA)
• Memory: Up to 16 MB DRAM (expandable via SODIMM)
• Display: Super VGA (1024 × 768 non-interlaced resolution, 1 MB video DRAM)
• I/O Ports:
  • 1× parallel Centronics port
  • 2× RS-232C serial ports
  • 1× PC/AT keyboard interface (PS/2 adapter)
  • 1× real-time clock (RTC) with on-board battery
  • 1× floppy controller
  • 1× IDE controller
• Bus Standard: VME64 (supports A32/A24/D32/D16/D08(EO)/MBLT64/BLT32 modes)
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 5–95% non-condensing
• Weight: 0.52 kg (1.15 lbs)
• Certifications: CE, UL (inferred from GE industrial product standards)

Core Features & Customer Value​

The on-board real-time clock (RTC) with battery backup ensures accurate timekeeping even during power outages. This is essential for industrial applications where timestamping of data is critical (e.g., turbine performance logging).

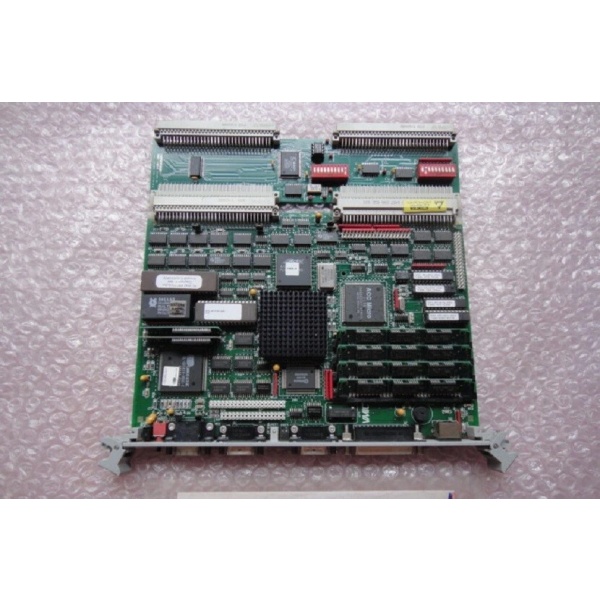

VMIVME-7486

Typical Applications​

1. Manufacturing:
   • Controls assembly lines, robotic arms, and other automated equipment in factories.
   • Processes data from sensors (e.g., temperature, pressure) to optimize production efficiency.
2. Power Generation:
   • Manages turbine control systems in gas/steam power plants, ensuring stable power output.
   • Interfaces with VMEbus I/O modules to monitor and control generator parameters.
3. Chemical Processing:
   • Controls valves, pumps, and other equipment in chemical plants, ensuring safe and efficient operation.
   • Processes data from hazardous area sensors (e.g., flame detectors) to prevent accidents.
4. Aerospace & Defense:
   • Used in radar systems and missile guidance systems to provide real-time processing power.
