Description
System Architecture & Operational Principle

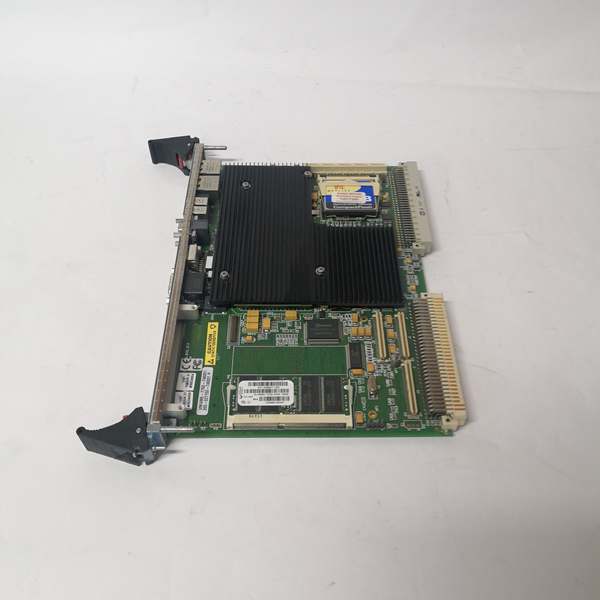

The VMIVME-7750 is a 16-channel analog output module designed for VMEbus-based control systems, typically installed in a VME rack (Purdue Level 1–2 boundary) adjacent to a host controller (e.g., Mark V, Mark VI, or custom VME CPU). It serves as a high-density interface for field actuators that accept 4–20 mA current loop signals, representing control setpoints such as valve position, motor speed, or damper angle.
Each channel contains a digital-to-analog converter (DAC) with 16-bit resolution, output drivers, and 1500 VDC optical isolation to protect the VMEbus from field-side overvoltages and ground loops. The 4–20 mA output is generated by sinking current through the field device, with the module regulating the current based on the 16-bit digital value received from the host controller via the VME64x backplane.
The module supports software-selectable output ranges (4–20 mA, 0–20 mA, ±20 mA) and per-channel calibration via the host controller’s configuration software. It is hot-swappable when installed in a VME rack with proper interlocks, enabling replacement without shutting down the entire system—critical for high-availability process industries (power generation, oil & gas, refining).
GE VMIVME-7750
Core Technical Specifications
-
Physical Interface: 2x 20-position terminal blocks (8 channels per block) for field wiring; 96-pin VME64x backplane connector (P1/J1)
-
Output Channels: 16 single-ended analog outputs (4–20 mA default)
-
Output Range: Software-selectable 4–20 mA, 0–20 mA, ±20 mA
-
Resolution: 16 bits (65,536 counts)
-
Accuracy: ±0.05% of span (at 25°C)
-
Isolation: 1500 VDC channel-to-channel, 500 VDC channel-to-VMEbus ground
-
Output Impedance: <500 Ω (supports up to 750 Ω load at 20 mA)
-
Update Rate: 5–20 ms per channel (software-configurable, aggregate throughput up to 800 kSPS)
-
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
-
Storage Temperature: -55°C to +85°C (-67°F to +185°F)
-
Humidity: 5–95% RH non-condensing
-
Bus Interface: VME64x (supports A24/D16, A32/D32 addressing)
-
Power Consumption: 10 W typical, 15 W max
-
Dimensions: ~233 mm × 160 mm × 30 mm (9.2 in × 6.3 in × 1.2 in)
-
Weight: ~0.9 kg (2.0 lbs)
-
Certifications: UL/cUL, CE, IEEE 1101.1 (VME mechanical standard)
Customer Value & Operational Benefits
High-Density Output Reduces Rack Space
With 16 channels per module, the VMIVME-7750 minimizes the number of I/O cards required in a VME rack, freeing space for other critical modules (e.g., CPU, communication cards). This is ideal for large-scale turbine or compressor trains where dozens of analog actuators must be controlled.
Robust Isolation for Harsh Industrial Environments
1500 VDC channel-to-channel and channel-to-ground isolation prevents ground loops and protects the VMEbus from voltage spikes caused by lightning, motor startups, or faulty actuators. This ensures reliable control signal delivery in outdoor substations or refinery environments with high electrical noise.
Hot-Swappable Maintenance Without Downtime
The ability to replace a faulty VMIVME-7750 without powering down the VME rack minimizes maintenance impact. Technicians can perform replacements during scheduled outages or routine checks, avoiding costly unplanned shutdowns in 24/7 process plants.
GE VMIVME-7750
Field Engineer’s Notes (From the Trenches)
When wiring 4–20 mA loops to the VMIVME-7750, always use shielded twisted pair cable and terminate the shield at the terminal block end only—grounding both ends creates ground loops that manifest as erratic actuator behavior. I once spent hours troubleshooting a control valve that “hunted” until I realized the shield was bonded to the valve body and the I/O module chassis. Also, verify the loop resistance doesn’t exceed 750 Ω (20 mA × 750 Ω = 15 V drop, within the module’s compliance range)—higher resistance forces the output voltage to rise, triggering the short-circuit protection and dropping the current to 0 mA.
Real-World Applications
In a Texas natural gas power plant, the VMIVME-7750 drives 16 control valves on a gas turbine’s fuel gas skid. The 16-bit resolution allows the VME-based Mark VI controller to adjust valve positions in 0.01% increments, optimizing fuel-air ratio for emissions compliance. The 1500 VDC isolation prevents interference from nearby high-voltage starters, ensuring stable control even during unit upsets.
On an offshore oil platform, the VMIVME-7750 controls variable-speed drives (VSDs) for gas compressors. The module’s wide operating temperature range (-40°C to +70°C) withstands the platform’s unheated control module room, and IEEE 1101.1 compliance ensures reliable mechanical mounting in the vibrating rack. Hot-swapping failed modules during crew changes minimizes impact on production.
