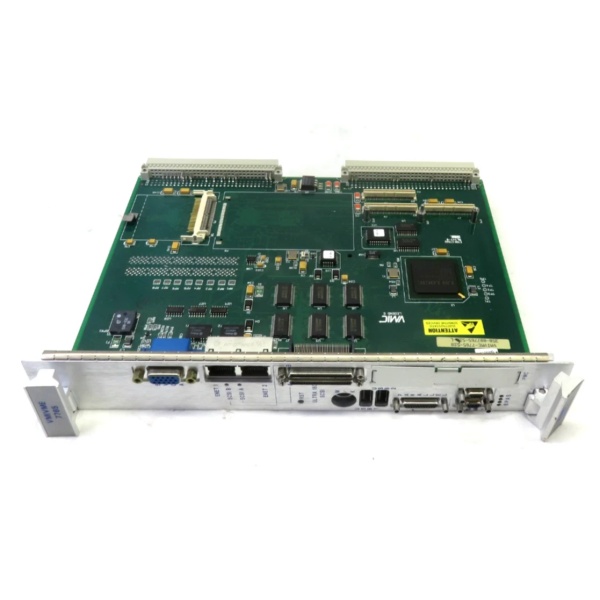

GE VMIVME-7765 | VMEbus Series Dual-Pentium III Single-Board Computer

Description

VMIVME-7765: Product Overview​

1. Data Processing: Executes control algorithms and processes data from field devices (e.g., sensors, actuators) via the VMEbus.
2. Communication: Acts as a system controller or peripheral CPU, enabling communication between VMEbus devices (e.g., I/O modules, displays) and external networks (via dual Ethernet ports).
3. Legacy Support: Serves as a drop-in replacement for older VMEbus SBCs, extending the lifespan of existing industrial systems without requiring major upgrades.

• VMEbus Compatibility: Conforms to VMEbus Rev. C.1, ensuring seamless integration with VME64 backplanes and devices. The transparent PCI-to-VMEbus bridge allows it to function as a system controller or peripheral CPU in multi-CPU systems.
• Flexible I/O: Includes 2× 16-bit programmable timers, 32 KB non-volatile SRAM (for data retention during power outages), and a PMC expansion site for adding custom I/O (e.g., fiber optic communication, AI acceleration).
• High-Performance Processing: The dual Intel Pentium III processors (up to 1.26 GHz) with 512 KB advanced transfer cache deliver fast data processing, critical for real-time control applications like turbine management or manufacturing automation.
• Passive Cooling: Designed for passive cooling (no fans), reducing maintenance requirements and improving durability in dusty or high-vibration environments.

• Reliability: Industrial-grade components and a rugged 6U Eurocard form factor ensure 24/7 operation in harsh environments (e.g., high temperature, vibration).
• Scalability: Supports expansion via PMC modules, allowing users to add functionality (e.g., additional I/O, networking) without replacing the SBC.
• Legacy Integration: Compatible with existing VMEbus systems, reducing the cost and complexity of upgrading industrial control architectures.

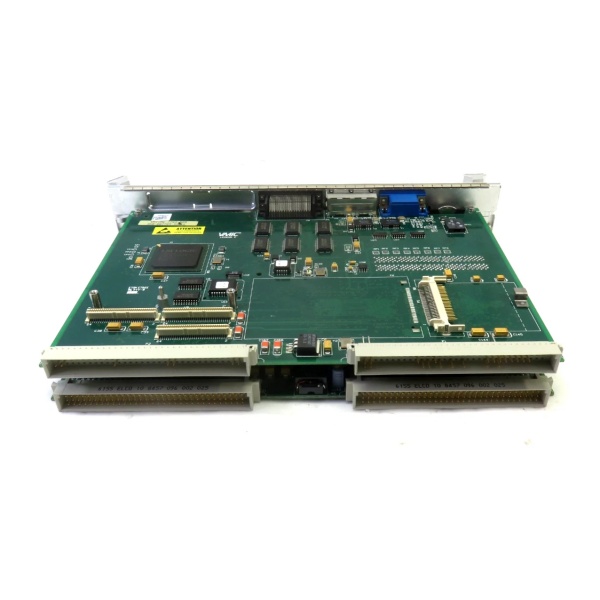

  VMIVME-7765

Technical Specifications​

• Model Number: VMIVME-7765 (Variant: VMIVME-7765-540)
• Manufacturer: GE (General Electric)
• Product Type: VMEbus Series Single-Board Computer (SBC)
• Form Factor: 6U Eurocard (160 mm × 233 mm)
• Processor: Dual Intel Pentium III (up to 1.26 GHz, PGA370 socket)
• Chipset: ServerWorks LE (133 MHz system bus)
• Memory: Up to 2 GB PC133 SDRAM (with ECC, single SODIMM)
• Storage: Optional bootable flash (up to 1 GB via secondary IDE)
• I/O Ports:
  • 2× 16-bit programmable timers
  • 32 KB non-volatile SRAM
  • PMC expansion site (for custom I/O)
  • Dual Ethernet controllers (10BaseT/100BaseTX)
  • 2× RS232 serial ports
  • 2× USB ports
• Bus Standard: VME64 (supports A32/A24/D32/D16/D08(EO)/MBLT64/BLT32 modes)
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 5–95% non-condensing
• Power Consumption: 15W typical (5V DC)
• Certifications: CE, UL (inferred from GE industrial product standards)

Core Features & Customer Value​

The 32 KB non-volatile SRAM retains critical data during power outages, ensuring that control systems can resume operation quickly after a failure. This is essential for industrial applications where downtime can result in significant financial losses.

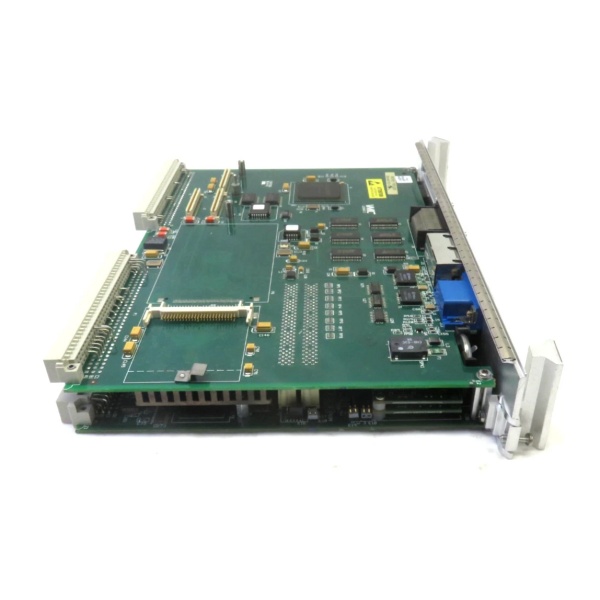

VMIVME-7765

Typical Applications​

1. Manufacturing:
   • Controls assembly lines, robotic arms, and other automated equipment in factories.
   • Processes data from sensors (e.g., temperature, pressure) to optimize production efficiency.
2. Power Generation:
   • Manages turbine control systems in gas/steam power plants, ensuring stable power output.
   • Interfaces with VMEbus I/O modules to monitor and control generator parameters.
3. Chemical Processing:
   • Controls valves, pumps, and other equipment in chemical plants, ensuring safe and efficient operation.
   • Processes data from hazardous area sensors (e.g., flame detectors) to prevent accidents.
