GE WESDAC D20ME II

Description

Detailed Parameter Table

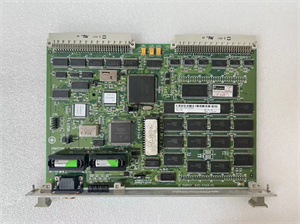

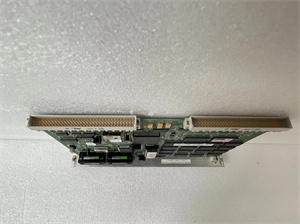

GE WESDAC D20ME II

Product Introduction

The GE WESDAC D20ME II is an advanced industrial control module designed as a key component of the GE WESDAC D20 control system. As a successor to earlier WESDAC models, it integrates enhanced processing power and expanded connectivity to meet the evolving demands of industrial automation.

This module serves as a local control unit in distributed control systems (DCS), handling real-time data acquisition, logic execution, and device control. With its 32-bit microprocessor and ample memory, the WESDAC D20ME II efficiently processes control algorithms and manages I/O signals from sensors and actuators. Its compatibility with both legacy and modern communication protocols makes it a versatile solution for retrofitting existing systems or building new automation setups. In industrial environments, the GE WESDAC D20ME II ensures seamless coordination between field devices and central control systems, enabling precise regulation of industrial processes.

Core Advantages and Technical Highlights

Enhanced processing performance: The 32-bit microprocessor in the GE WESDAC D20ME II delivers 16 MHz clock speed, enabling faster execution of control logic compared to its predecessors. This performance boost is critical in time-sensitive applications such as power generation, where millisecond-level response times are required to maintain stable operation of turbines and generators. The increased memory capacity allows for more complex control strategies without compromising processing speed.

Flexible I/O scalability: Supporting up to 256 digital and 64 analog I/O points, the WESDAC D20ME II adapts easily to systems of varying sizes. This scalability is particularly valuable in industries like chemical processing, where production lines may expand over time. The module can accommodate additional I/O modules without requiring a complete system overhaul, reducing upgrade costs and downtime.

Dual-protocol communication: Equipped with both RS-485 and Ethernet ports, the GE WESDAC D20ME II supports Modbus RTU, Modbus TCP/IP, and GE proprietary protocols. This dual capability allows it to communicate with legacy equipment via serial connections while integrating with modern Ethernet-based systems. In water treatment plants, for example, it can connect to older pump controllers through RS-485 and transmit data to a central SCADA system over Ethernet, bridging the gap between old and new technologies.

Rugged industrial design: Certified for operation in temperatures ranging from -10°C to 70°C and holding UL 508, CE, and ATEX Zone 2 certifications, the WESDAC D20ME II thrives in harsh environments. Its robust construction withstands vibration, electrical noise, and humidity, making it suitable for installation in factory floors, outdoor substations, and hazardous areas where reliability is paramount.

Typical Application Scenarios

Power distribution: In electrical substations, the GE WESDAC D20ME II monitors and controls circuit breakers, transformers, and capacitor banks. It collects data on voltage, current, and power factor from sensors, executes protection logic to prevent overloads, and sends status updates to the central control room. Its fast response time ensures quick isolation of faults, minimizing downtime in critical power infrastructure.

Oil and gas pipelines: The WESDAC D20ME II regulates valve operations and pump speeds in pipeline systems. It receives pressure and flow rate data from analog sensors, adjusts control valves to maintain optimal flow, and communicates with remote monitoring stations via Ethernet. In offshore platforms, its ATEX certification allows safe operation in potentially explosive atmospheres, ensuring continuous operation of crude oil transfer processes.

Manufacturing lines: In automotive assembly plants, the GE WESDAC D20ME II coordinates robotic arms, conveyor belts, and quality inspection systems. It processes digital inputs from position sensors to track vehicle components, triggers robotic welding operations via digital outputs, and sends production metrics to a factory management system. Its ability to handle mixed I/O types simplifies integration with diverse manufacturing equipment, from pneumatic clamps to vision cameras.

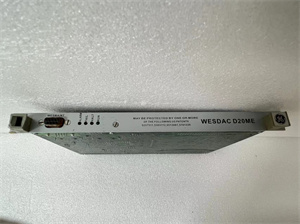

GE WESDAC D20ME II

Related Model Recommendations

GE WESDAC D20MM: A master module that coordinates multiple WESDAC D20ME II units in large-scale distributed systems, providing centralized configuration and monitoring.

GE WESDAC D20IO8: An 8-channel digital I/O module that expands the I/O capacity of the D20ME II, ideal for adding more sensor inputs in packaging lines.

GE WESDAC D20AI4: A 4-channel analog input module compatible with the WESDAC D20ME II, used to measure temperature, pressure, and flow in process control applications.

GE WESDAC D20AO2: A 2-channel analog output module that works with the D20ME II to control variable speed drives and proportional valves.

GE WESDAC D20COMM: A communication expansion module that adds wireless connectivity (Wi-Fi/Bluetooth) to the D20ME II, enabling remote monitoring in hard-to-reach locations.

GE WESDAC D20PWR: A redundant power supply module that ensures uninterrupted operation of the WESDAC D20ME II in critical applications like nuclear power plants.

GE WESDAC D20HMI: A human-machine interface panel that pairs with the D20ME II, allowing operators to visualize processes and manually override controls when needed.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing the GE WESDAC D20ME II, ensure the mounting surface (panel or rack) is clean, flat, and capable of supporting the module’s weight. Verify the power supply meets the 24 VDC ±10% requirement and use a multimeter to check for voltage fluctuations. Gather tools including torque screwdrivers (for terminal connections), wire crimpers, and anti-static gloves. Review the wiring diagram to identify communication and power connections, labeling wires to avoid cross-connections. Ensure the installation area is free from excessive vibration and corrosive gases.

Maintenance suggestions: Conduct monthly visual inspections of the WESDAC D20ME II to check for loose connectors, dust accumulation, or signs of overheating (discolored components). Clean ventilation slots with compressed air to prevent thermal issues. Perform quarterly functional tests by simulating input signals and verifying output responses using the system’s diagnostic software. Back up program data to a secure location bi-annually to prevent loss in case of memory failure. Replace the lithium backup battery every 5 years to maintain RAM data during power outages. When troubleshooting, use the module’s built-in LED indicators to identify communication errors or power issues before resorting to advanced diagnostic tools.

Service and Guarantee Commitment

GE provides a 24-month warranty for the GE WESDAC D20ME II, covering manufacturing defects and component failures under normal operating conditions. The company’s technical support team offers 24/7 assistance via phone and email, with on-site service available in major industrial regions.

Customers gain access to online resources including firmware updates, configuration guides, and troubleshooting videos through GE’s industrial support portal. Training courses are available for system integrators and maintenance personnel, covering installation, programming, and advanced diagnostics of the WESDAC D20ME II. For critical applications, GE offers extended warranty plans with priority support and preventive maintenance visits. This comprehensive support ensures the GE WESDAC D20ME II delivers reliable performance, backed by GE’s decades of experience in industrial control systems.
