IC660BBD025

Description

Description

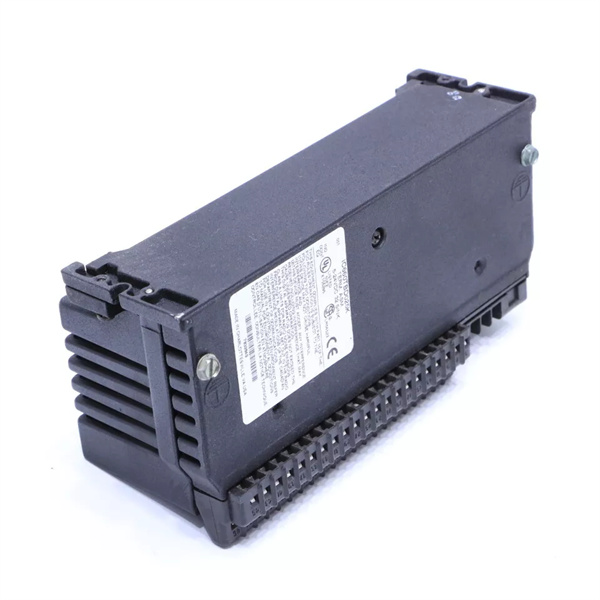

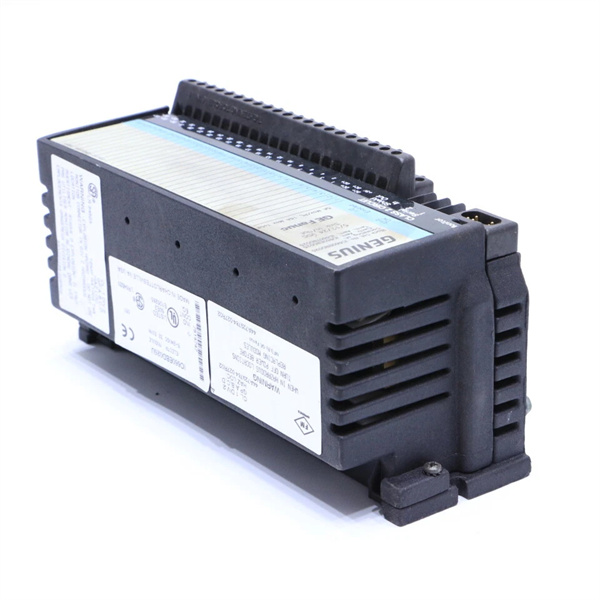

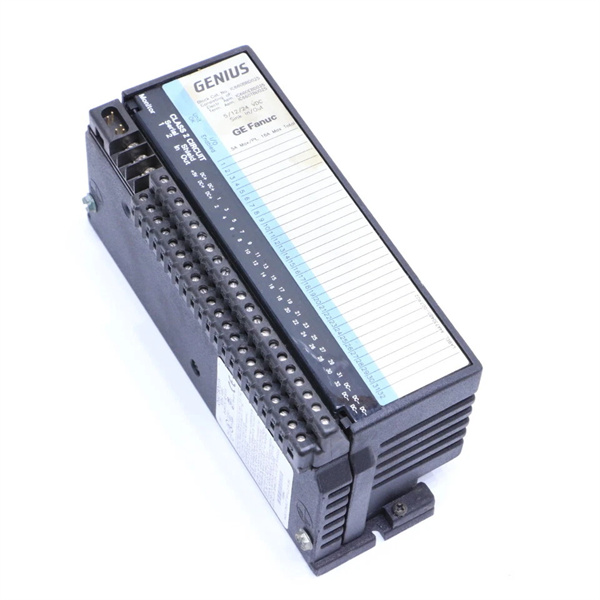

The IC660BBD025 is a highly flexible 32-channel sinking discrete I/O module developed by GE Fanuc (now part of Emerson’s industrial automation portfolio) for the Genius I/O system—a core component of distributed control architectures compatible with Series 90-30 PLCs. As a “universal interface” between controllers and field devices, it translates digital signals between sensors/switches (inputs) and actuators/indicators (outputs), with each channel configurable as input, output, or output with feedback. Its rugged design, broad voltage compatibility, and distributed deployment capability make it ideal for large-scale industrial scenarios requiring mixed I/O control, such as 轨道交通，ports, and manufacturing lines.

Application Scenarios

A Shanghai metro station faced operational inefficiencies in its environmental control system (ECS): the system needed to monitor 16 temperature/humidity sensors (inputs) and control 12 ventilation fans + 4 emergency lights (outputs), but relied on 3 separate fixed-function modules (16-input + 8-output + 8-output). This increased wiring complexity, required 3x the spare parts inventory, and caused 6+ hours of annual downtime when reconfiguring for seasonal equipment adjustments. After upgrading to the IC660BBD025, the station standardized on one module—configuring 16 channels as inputs and 16 as outputs (including 4 with feedback for fan status monitoring). The module’s 850V block-to-block isolation also eliminated electrical interference from nearby traction power systems, while its 2275-meter Genius bus range allowed deployment across the 500-meter platform. Results included: 40% reduction in wiring costs, 70% lower spare parts inventory, and zero reconfiguration downtime. This scenario highlights how the IC660BBD025 solves fragmentation, interference, and scalability pain points in distributed control systems.

Parameter

IC660BBD025

Technical Principles and Innovative Values

Innovation Point 1: Per-Channel Configurability for Mixed I/O Needs – Unlike fixed input/output modules that force separate hardware for different signals, the IC660BBD025 lets users program each of its 32 channels as input, output, or output with feedback via software (e.g., Proficy Machine Edition) . For example, a food processing line can configure 20 channels as inputs (for proximity switches on conveyor belts) and 12 as outputs (for solenoid valves and alarms) using one module—reducing hardware count by 60% compared to using three dedicated modules. The “output with feedback” mode also enables real-time verification of device actuation (e.g., confirming a valve is open), cutting troubleshooting time by 80%.

Innovation Point 2: High Isolation + Self-Protection for Harsh Environments – The module’s 850V AC block-to-block isolation eliminates electrical cross-talk in noisy industrial settings (e.g., near railway traction systems or large motors) . Its resettable self-protection circuits shield against short-circuits and current surges caused by wiring mistakes or device failures—unlike non-protected modules that require replacement after such events. A port equipment manufacturer reported a 90% reduction in module failures after switching to the IC660BBD025, even in dusty, vibration-heavy container yards.

Innovation Point 3: Distributed Deployment for Large-Scale Systems – Designed for the Genius I/O bus, the IC660BBD025 can be installed up to 2,275 meters from the host PLC , eliminating the need for costly remote cabinets or extended wiring. This is critical for applications like water treatment plants or mining sites where devices are spread across large areas. A California water treatment facility used 8 IC660BBD025 modules deployed along a 1.5-kilometer pipeline, reducing wiring costs by $25,000 compared to a centralized I/O architecture.

Application Cases and Industry Value

散货港口装卸自动化（天津） – A bulk cargo port used the IC660BBD025 to control 12 gantry crane hoists and 20 conveyor belts, requiring coordination of 28 inputs (limit switches, load sensors) and 4 outputs (brakes, alarms) per crane. Previous fixed I/O modules required 3 modules per crane and suffered frequent failures due to electrical interference from nearby cargo handlers. The IC660BBD025’s 850V isolation withstood interference, while its configurable channels reduced per-crane module count to 1. The Genius bus also enabled centralized monitoring of all 6 cranes from the control room, cutting unplanned downtime by 75% and increasing cargo throughput by 12% annually.

汽车零部件冲压车间（重庆） – The plant integrated 4 IC660BBD025 modules into its 3 stamping lines to monitor 64 proximity sensors (input) and control 32 hydraulic presses (output with feedback). Key challenges included limited control cabinet space and the need to verify press actuation in real time. The module’s compact cast-aluminum design allowed wall-mounted installation near presses (saving cabinet space), while feedback-enabled outputs confirmed press positioning—reducing defective parts caused by misalignment by 30%. The plant also added 2 new presses later by reconfiguring unused channels, avoiding $15,000 in new hardware costs.

Related Product Combination Solutions

Build a complete distributed control system with the IC660BBD025 and these compatible GE Fanuc/Emerson modules:

IC693CPU352: Series 90-30 PLC Controller – Serves as the “brain” to process signals from the IC660BBD025 and execute control logic .

IC660CMM311: Genius Bus Communication Module – Enables data transfer between the PLC and IC660BBD025 modules via twisted-pair cable .

IC660PWR100: 24V DC Power Supply – Delivers stable power to the IC660BBD025, with overcurrent protection to safeguard the module .

IC660CHS001: 10-Slot Genius I/O Backplane – Provides physical mounting for the IC660BBD025 and supporting modules in control cabinets .

IC660BBA026: 6-Channel Analog Input Module – Complements the IC660BBD025 by collecting continuous data (e.g., press temperature) for precision control .

IC660ELB904: Terminal Block Extension – Expands wiring capacity for the IC660BBD025 when connecting 32+ field devices .

IC693MEM320: 32MB Memory Module – Extends the PLC’s storage for logging IC660BBD025 I/O status and production data .

IC660BBD025

Installation, Maintenance, and Full-Cycle Support

Installing the IC660BBD025 is optimized for distributed scenarios:

Mounting: Use DIN rail or wall brackets (cast-aluminum housing supports direct field installation, no cabinet required) .

Wiring: Connect field devices to the terminal block (labeled “IN/OUT 1–32”) and link to the Genius bus via the module’s RS-485 port .

Configuration: Use Proficy Machine Edition to set each channel’s mode (input/output/feedback) and calibrate voltage (5/12/24V DC) .

Verification: Power on and confirm the “Unit OK” LED is solid green (flashing indicates bus communication issues) .

Routine maintenance is minimal due to built-in diagnostics:

Channel-Level LEDs: Red/green indicators show input voltage presence or output actuation—immediately identifying faulty sensors/actuators .

Self-Protection: If a short circuit occurs, the module automatically shuts down the affected channel (resets when the fault is resolved) .

Periodic Checks: Inspect wiring terminals quarterly and clean dust from the aluminum housing (critical for high-temperature environments like stamping lines).

Emerson backs the IC660BBD025 with a 2-year warranty and 24/7 technical support. Spare modules ship within 48 hours for critical failures, and on-site training is available to cover channel configuration and Genius bus troubleshooting.
