Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660EBD025 |
| Manufacturer | GE Fanuc |
| Product category | I/O Block |
| Operating Voltage | 10 to 30 V DC (12/24 V nominal), 4.9 to 5.3 V DC (5 V nominal) |
| Input Voltage Range | 10 to 30 V DC (12/24 V nominal), 4.9 to 5.3 V DC (5 V nominal) |
| Number of Circuits | 32 |
| Load Current | 0.5 A per circuit |
| Heat Dissipation | 11 W (minimum with 8 inputs), 18 W (maximum with 32 outputs) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +100°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 8.83 in × 3.58 in × 4.7 in (22.44 cm × 9.09 cm × 11.94 cm) |
| Weight | 1.8 kg |
| Certifications | UL, CE, RoHS |

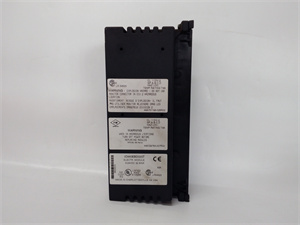

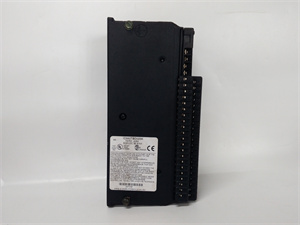

GE IC660EBD025
Product Introduction
The GE IC660EBD025 is a high-performance I/O block designed for industrial automation systems. It is part of the Genius I/O series and is designed for 24 VDC applications. This module supports both discrete and analog functionality, making it versatile for various industrial environments.
Core Advantages and Technical Highlights
Versatile Configuration
The GE IC660EBD025 offers 32 individually programmable I/O circuits that can be configured as inputs, outputs, or outputs with feedback. This flexibility allows it to be tailored precisely to the unique requirements of different industrial processes.
High-Speed Signal Processing
With a rapid input signal processing time of 1.7 ms, the module can quickly respond to changes in the industrial environment. The optional filter time, ranging from 10-100 ms in 10 ms increments, helps to eliminate electrical noise and interference, ensuring the accuracy of the input signals.
Robust Diagnostic and Protection
The module comes equipped with advanced diagnostic features. LED indicators for unit and I/O status provide real-time visual feedback on the module’s operation. It can detect switch failures and has self-protection mechanisms against overloads, short circuits, and overheating.
Reliable Communication
The GE IC660EBD025 supports the Genius communication protocol, enabling seamless integration with other GE PLCs, DCS systems, and Genius-compatible devices. This ensures smooth data flow and coordinated control in large-scale industrial complexes.

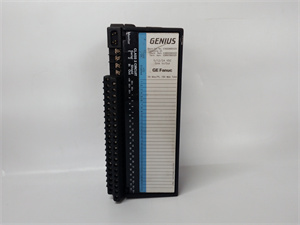

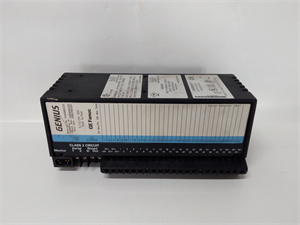

GE IC660EBD025
Typical Application Scenarios
The GE IC660EBD025 is widely used in industrial automation fields, including:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
GE IC660BBD022: A variant with different input/output configurations.
-
GE IC660BBD023: A variant with enhanced communication capabilities.
-
GE IC660BBD024: A variant with additional diagnostic features.
-
GE IC660BBD025: A variant with extended temperature range.
-
GE IC660BBD026: A variant with higher load current capacity.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660EBD025, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (10 to 30 V DC or 4.9 to 5.3 V DC) and that the operating temperature range (0°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC660EBD025. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC660EBD025 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
