IC660HHM501

Description

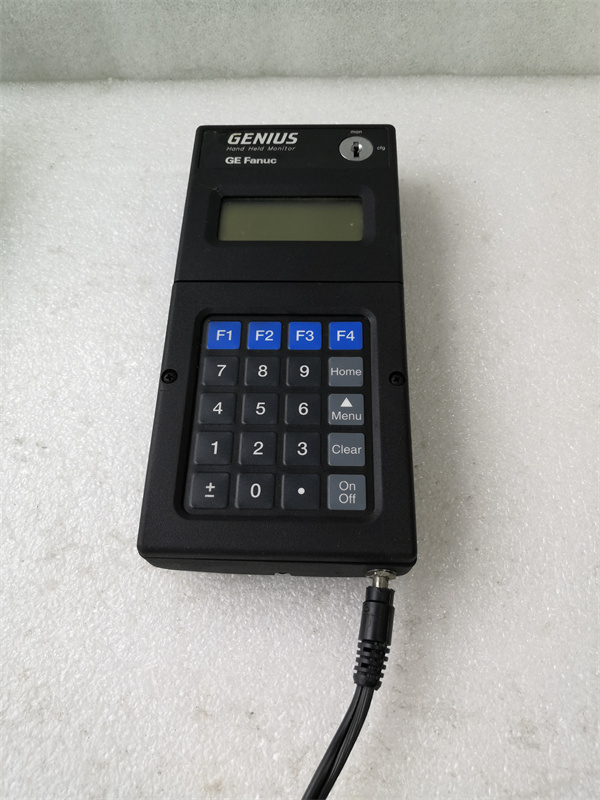

IC660HHM501 Genius I/O Hand-Held Monitor

The IC660HHM501 is a rugged, portable operator interface device developed by GE Fanuc (now Emerson Automation) for configuring, monitoring, and troubleshooting Genius I/O industrial control systems. Designed for harsh industrial environments, it serves as a critical tool for technicians to diagnose network issues, force I/O states, and manage parameters without relying on a PLC or PC. Despite being discontinued by the manufacturer, it remains a cornerstone in legacy GE systems due to its reliability and compatibility .

Key Features and Functionality

User Interface and Controls

4-line × 16-character LCD Display: Shows real-time I/O data, diagnostics, and bus status in English, Spanish, French, or Italian .

20-key Sealed Membrane Keypad: Includes function keys for quick access to configuration menus, data monitoring, and system diagnostics. A security key switch restricts access to sensitive operations (e.g., parameter editing) .

Compact Design: Weighs 1.6 lbs (0.73 kg) without the case and measures 8.00 × 3.75 × 1.25 inches, ensuring portability in tight spaces .

Power and Battery Requirements

Dual Power Source: Operates on 115/230V AC (via an external charger) or the IC660BPM500 rechargeable battery pack (required even when AC power is connected). The battery provides up to 6 hours of continuous runtime and requires 6–24 hours for a full charge .

Automatic Power Management: Shuts off after 10 minutes of inactivity to conserve energy (disabled via settings for continuous use) .

Communication and Compatibility

Genius Bus Protocol: Directly interfaces with Genius I/O modules (e.g., IC660BBD101 discrete I/O, IC660BCM501 bus controller) for real-time data exchange .

RS-232 Interface: Supports remote diagnostics and programming when connected to a PC via a serial cable (e.g., IC660HHC005 coiled cable) .

Multi-Vendor Integration: Works with third-party devices like Horner Automation’s HE670RLY168 relay modules when configured via the HHM .

Industrial-Grade Durability

Temperature Range: Operates at 0–60°C (32–140°F) and withstands storage at -40–70°C (-40–158°F), making it suitable for extreme environments .

EMC Compliance: Resists electromagnetic interference from factory machinery, ensuring stable performance in noisy industrial settings .

Technical Specifications

IC660HHM501

Applications and Industry Impact

Automotive Manufacturing

A Southeast Asian automotive plant used the IC660HHM501 to diagnose welding line faults on IC660BBD101 discrete I/O modules. The monitor’s real-time data display and forced I/O functionality reduced troubleshooting time by 30%, minimizing downtime .

Petrochemical Refineries

In hazardous areas, technicians used the HHM to configure IC660BCM501 bus controllers without relying on PCs, ensuring compliance with explosion-proof protocols. The IC660BPM500 battery allowed 6 hours of continuous operation in remote locations .

Power Generation

A U.S. power plant deployed the IC660HHM501 to monitor steam turbine sensors connected to Genius I/O racks. Its ability to display bus scan times and diagnostics helped identify communication bottlenecks before they caused outages .

Installation and Maintenance

Setup Steps

Battery Installation: Insert the IC660BPM500 battery pack (mandatory even with AC power) and secure it per the user manual.

Communication Connection: Connect to the Genius bus via a coiled cable (IC660HHC005) or RS-232 to a PC for advanced programming .

Initial Charge: Charge the battery for 24 hours before first use to maximize capacity .

Routine Maintenance

Battery Care: Perform a full discharge-recharge cycle monthly to prevent capacity degradation. Replace the battery if runtime drops below 4 hours .

Physical Inspection: Check for loose connections, cracks in the housing, or damage to the keypad membrane. Clean the screen with a dry cloth .

Firmware Updates: Use the HHM’s built-in interface or a PC to update firmware (if supported by Emerson) .

Troubleshooting Tips

No Power: Verify the battery is properly seated and charged. If using AC power, check the charger connection.

Communication Failure: Reseat the bus cable and ensure the HHM’s address matches the Genius network configuration .

Related Products and Ecosystem

IC660BPM500 Battery Pack: Exclusive power source for the HHM, providing 6 hours of runtime .

IC660HHC005 Coiled Cable: Connects the HHM to Genius I/O modules for data transmission .

IC660BBD101 Discrete I/O Module: Monitored and configured via the HHM, with forced I/O capabilities .

IC660BCM501 Bus Controller: Manages Genius bus communication, paired with the HHM for setup .

IC660HHM501

Availability and Support

Status: Discontinued by GE Fanuc but available through authorized resellers and surplus suppliers. Refurbished units may offer shorter warranties (typically 6–12 months) .

Technical Support: Emerson provides documentation and limited troubleshooting assistance via its industrial support portal. For critical systems, consider consulting a certified GE automation partner.

Alternatives: While no direct replacement exists, modern GE PACSystems RX3i/RX7i PLCs offer built-in web-based interfaces for remote monitoring, reducing reliance on legacy HHMs .

Conclusion

The IC660HHM501 remains an indispensable tool for maintaining legacy GE Genius I/O systems, offering unmatched portability and real-time diagnostics in harsh environments. Its mandatory battery design ensures uninterrupted operation during power outages, while its rugged construction withstands extreme conditions. Although discontinued, its compatibility and reliability make it a cost-effective solution for industries where downtime is not an option.
